Solar-Log 1000 User Manual

21
Operating via a web browser within your own network

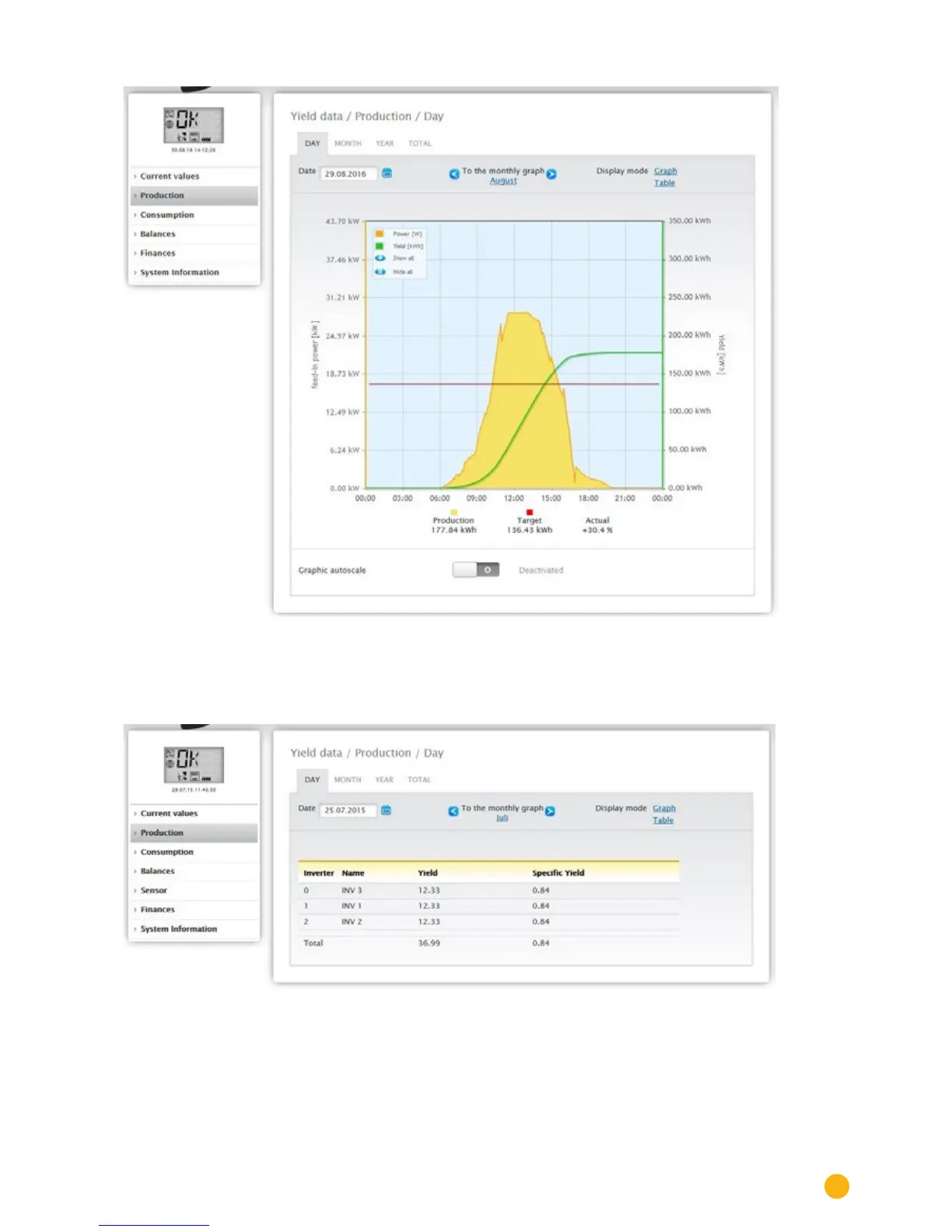

Fig.: Daily View of the Production Graph with the Auto Scaling deactivated
Different values with different units are displayed in the graph. The units used and their colors are defined
in the key at the top.
Fig.: Day view of the production table
When you click on Table, the values from the current output generated will be allocated to the individual
inverters and displayed as a table. In this way, you can check the output of every inverter at any time.

Solar-Log 1000 Specifications

General

Max Inverters	100
Display	LCD
Power Supply	24 VDC
Data Storage	SD Card
Enclosure Protection	IP20
Maximum Number of Strings	100
Ethernet Ports	1
USB Ports	1
Communication Interfaces	Ethernet, RS485
Supported Communication Protocols	Modbus, SunSpec
Power Consumption	5 W
