Operating the Solar-Log 1200 and 2000 via Touch Display
4.4 Accessing the Energy Balance
From the Power menu, you can swipe from the start page to go to the Energy Balance.

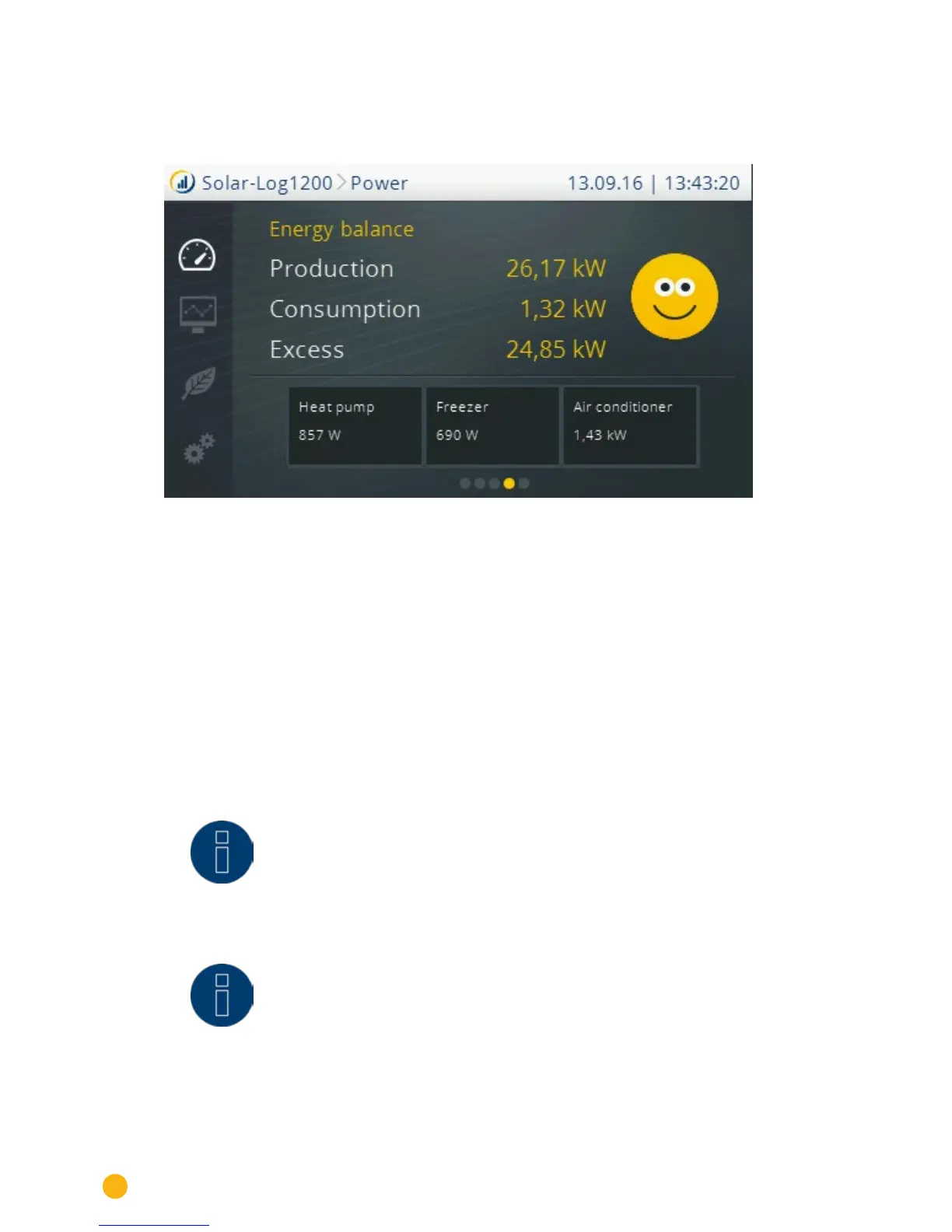

Fig.: Energy Balance view
The energy balance is a split-screen window. The top part of the window displays the following values:
Production:
•
Current plant production.
Consumption:
•
Current power consumption (only with connected meters).
Surplus:
•
Current grid feed (only with connected meters).
The bottom window displays the connected appliances with their current consumption values. Use the
arrows to display additional appliances.
Note!
All of the devices that are configured as sub-consumers are displayed in this view.
Note!
A maximum of 10 smart plugs can be recognized.

Solar-Log 1000 Specifications

General

Max Inverters	100
Display	LCD
Power Supply	24 VDC
Data Storage	SD Card
Enclosure Protection	IP20
Maximum Number of Strings	100
Ethernet Ports	1
USB Ports	1
Communication Interfaces	Ethernet, RS485
Supported Communication Protocols	Modbus, SunSpec
Power Consumption	5 W
