Solar-Log 1000 User Manual

88
Operating the Solar-Log 1200 and 2000 via Touch Display
4.2 Accessing the Dashboard
From the Power menu, you can swipe to go from the start page to the Dashboard.

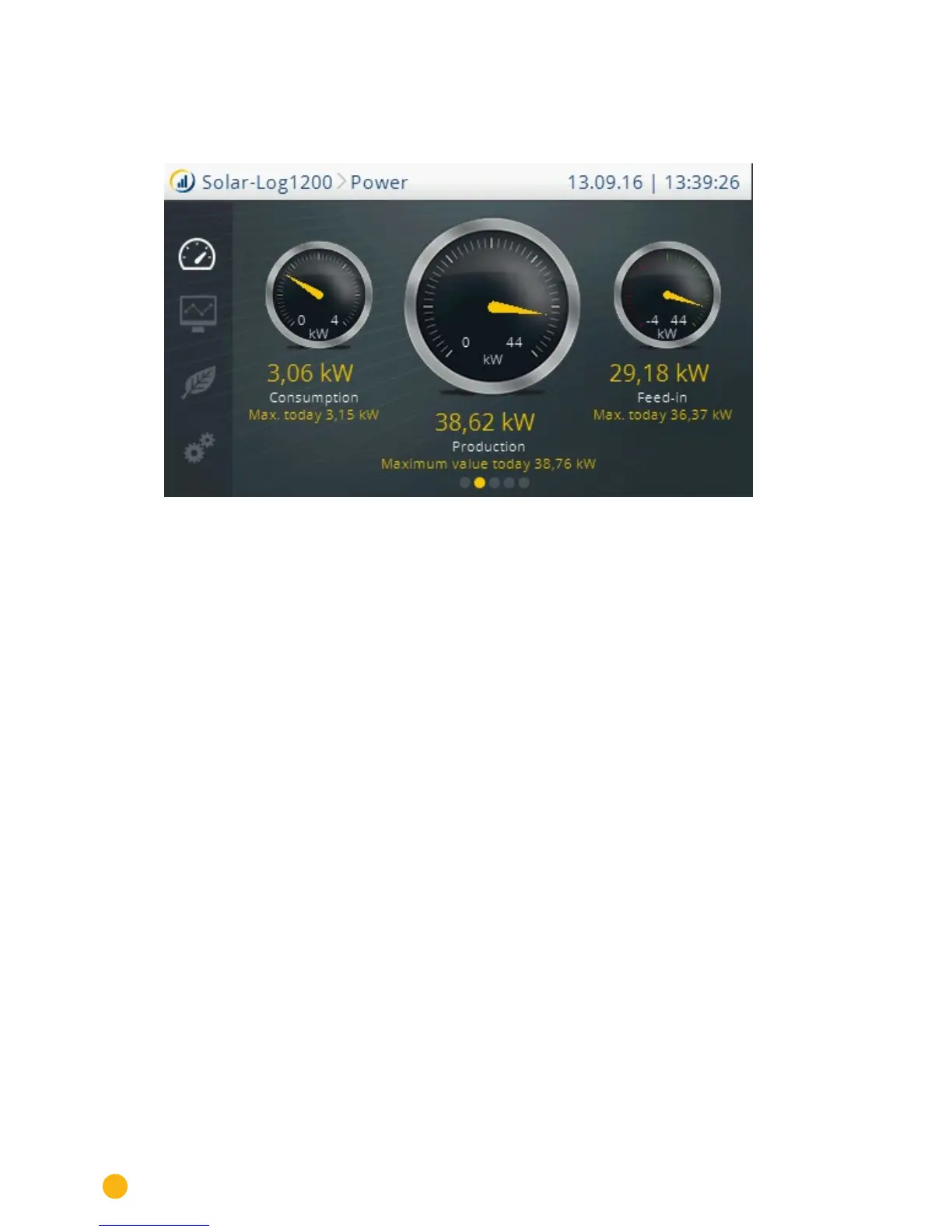

Fig.: Dashboard view
In the view from left-to-right:
Current consumption and today's consumption high (only with connected meters).
Current production and today's production high.
Current grid feed and today's grid feed high (only with connected meters).

Solar-Log 1000 Specifications

General

Max Inverters	100
Display	LCD
Power Supply	24 VDC
Data Storage	SD Card
Enclosure Protection	IP20
Maximum Number of Strings	100
Ethernet Ports	1
USB Ports	1
Communication Interfaces	Ethernet, RS485
Supported Communication Protocols	Modbus, SunSpec
Power Consumption	5 W
