Solar-Log 1000 User Manual

8
Operating via a web browser within your own network
2.2 Overview
2.2.1 General Navigation

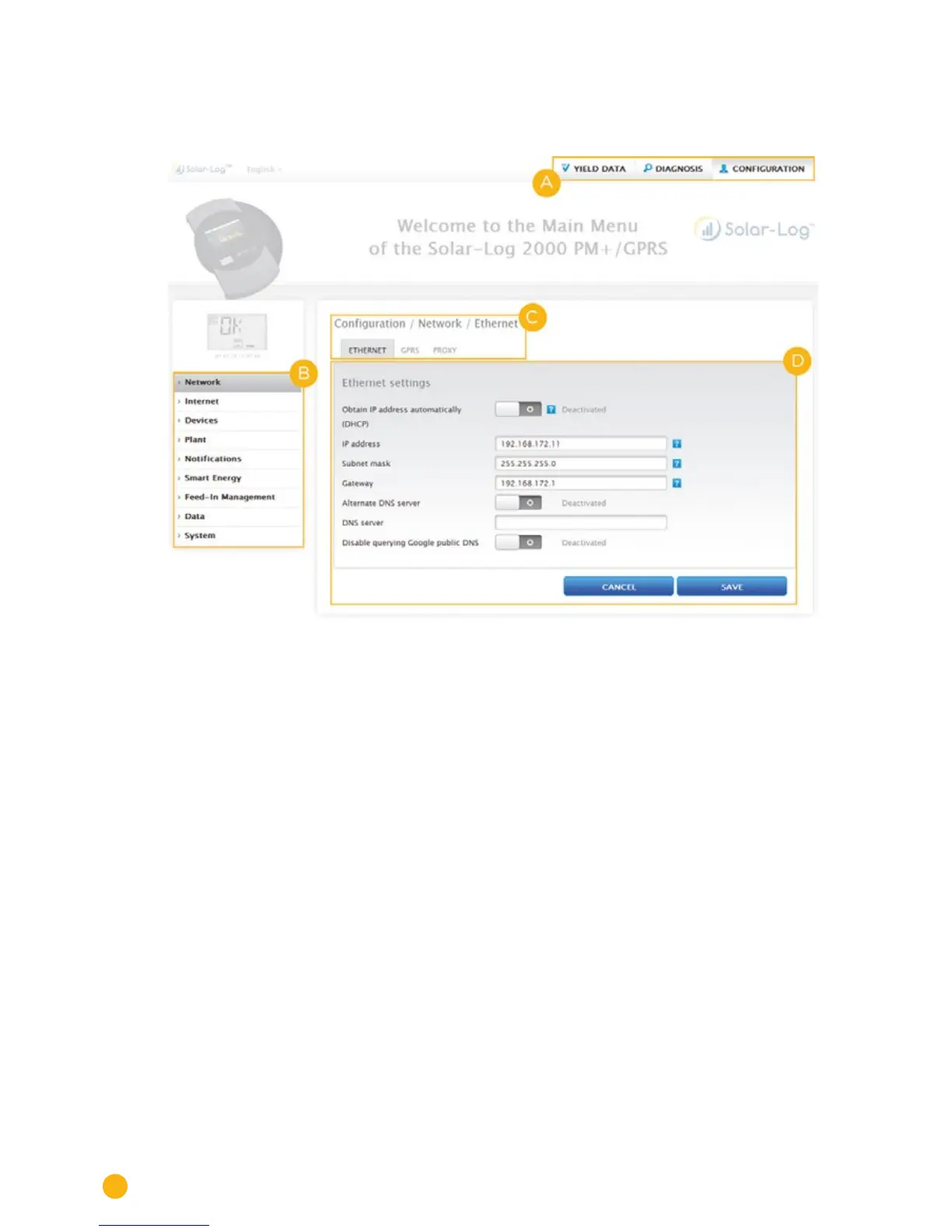

Fig.: Navigation designations
The start page contains the following sections:
•
Header bar (A)
•
Left navigation (B)
•
Tabs (C)
•
Configuration page (D)
Header bar
The header contains three main sections:
•
Yield data:
Here you will find your plant's yield overview within certain periods of time such as day, month,
year and the total yield to date.
•
Diagnostics:
Here you can view the fault and process messages while filtering them according to specified crite-
ria.
•
Configuration:
Here you can change the device settings as required.
Left-side navigation menu
Depending on the tab selected, you can access additional functions from the navigation menu (left-side).

Solar-Log 1000 Specifications

General

Max Inverters	100
Display	LCD
Power Supply	24 VDC
Data Storage	SD Card
Enclosure Protection	IP20
Maximum Number of Strings	100
Ethernet Ports	1
USB Ports	1
Communication Interfaces	Ethernet, RS485
Supported Communication Protocols	Modbus, SunSpec
Power Consumption	5 W
