89
Operating the Solar-Log 1200 and 2000 via Touch Display
4.3 Access Energy flow
From the Power menu, you can swipe from the Dashboard's start page to go to the Energy flow.

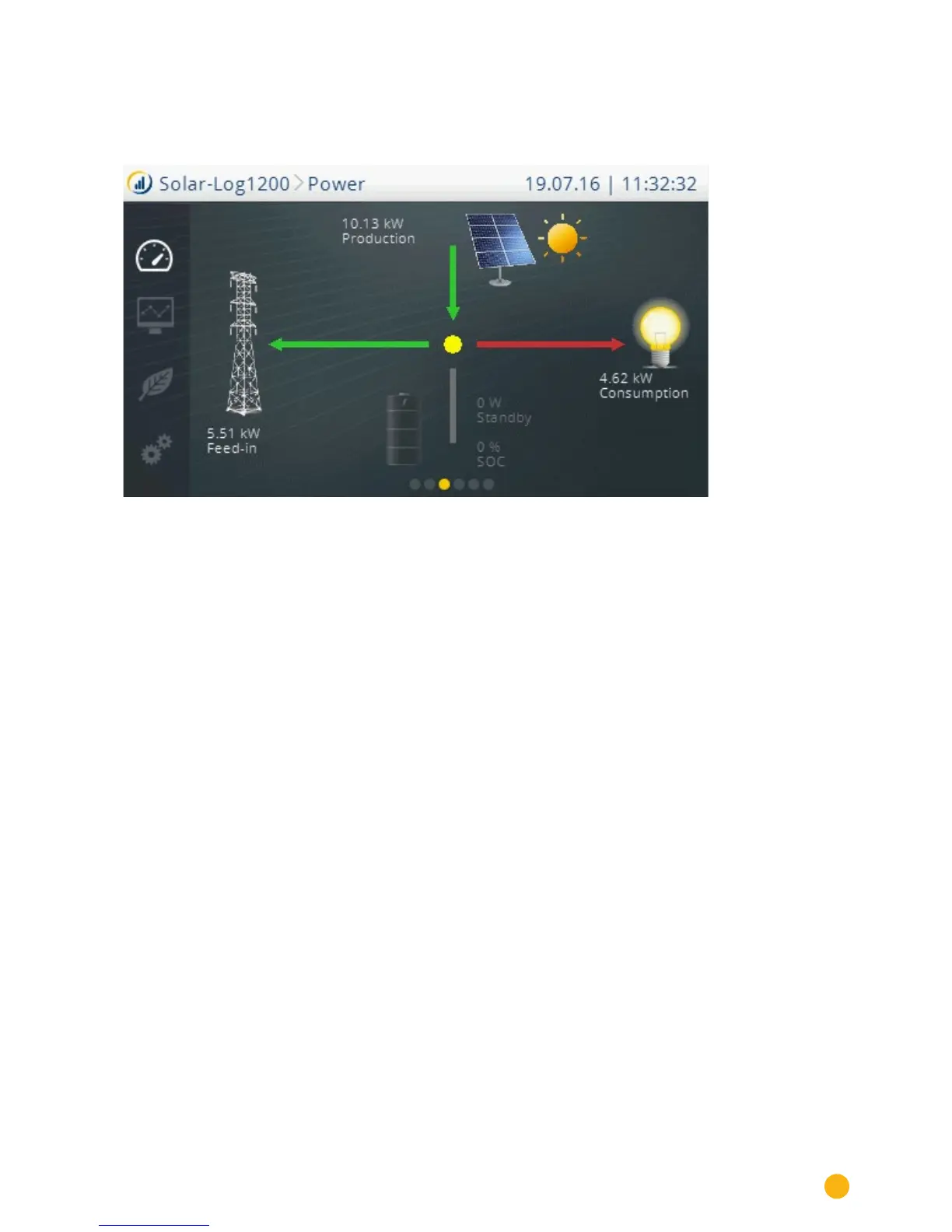

Fig.: Energy ow view
The plant is displayed as a flow graphic in this view.
Depending on the particular devices connected, the following values are displayed in the flow graphic in
real time:
Production (W)
Consumption (W)
Grid fed (W)
Battery Status
Charge Status (%)
Standby (W)
