18
Operating via a web browser within your own network
2.4.3 Table
The output recorded from the connected devices is displayed as a table in Table tab.

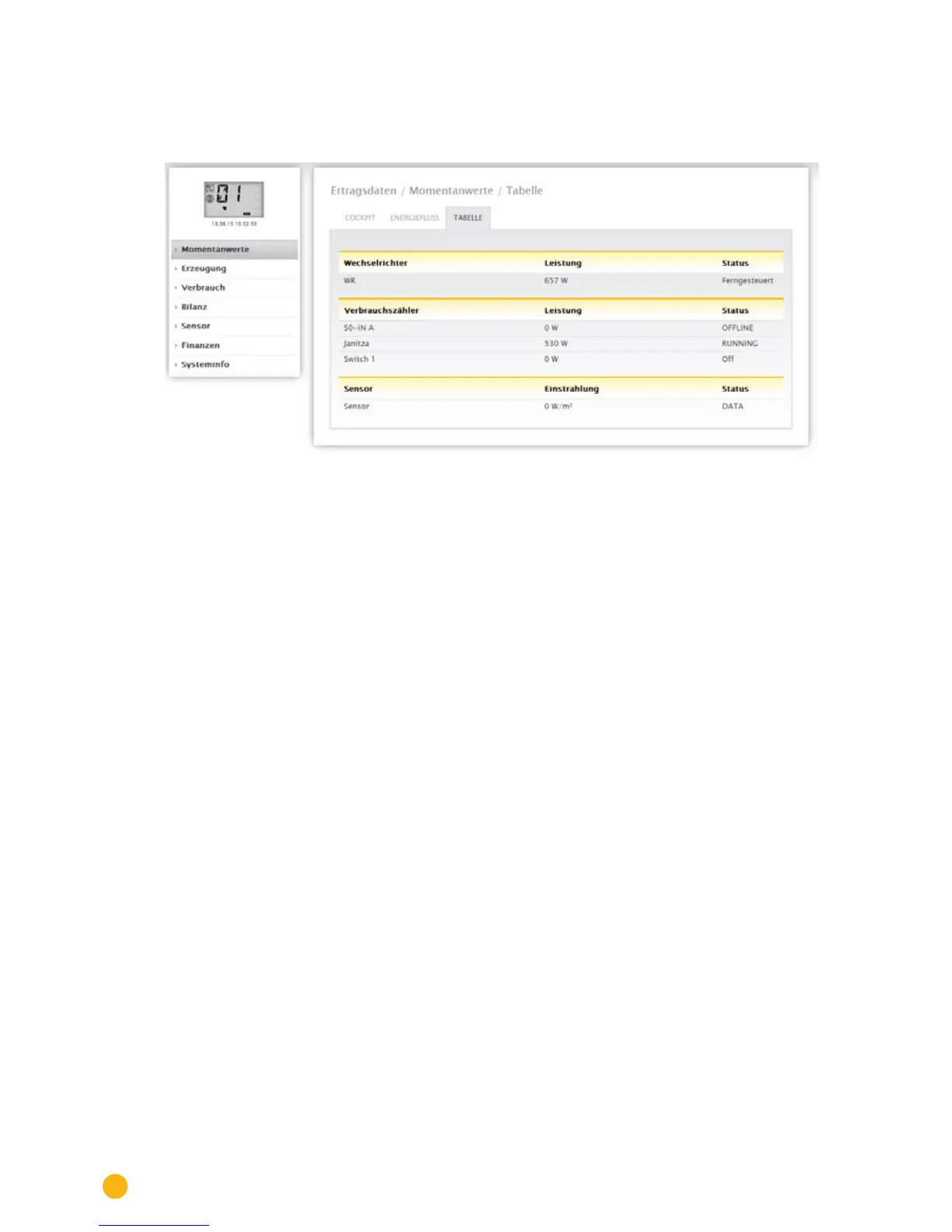

Fig.: Table with the recorded output from an example plant
Depending on the particular device connected, the following values are displayed:
The current output from each individual inverter.
The total current consumption as measured by the consumption meters.
The current irradiation per m
2
as measured by the sensor.
The values from the battery with the columns Charge/Discharge, Charge Level (%) and Status.
