Solar-Log 1000 User Manual

22
Operating via a web browser within your own network
2.5.2 Month view
The tab Month displays the daily yields from the month as a total in a bar graph.
•
The daily yield can be displayed by moving the mouse above one of the bars.
•
Click on a bar to go to the corresponding day view.

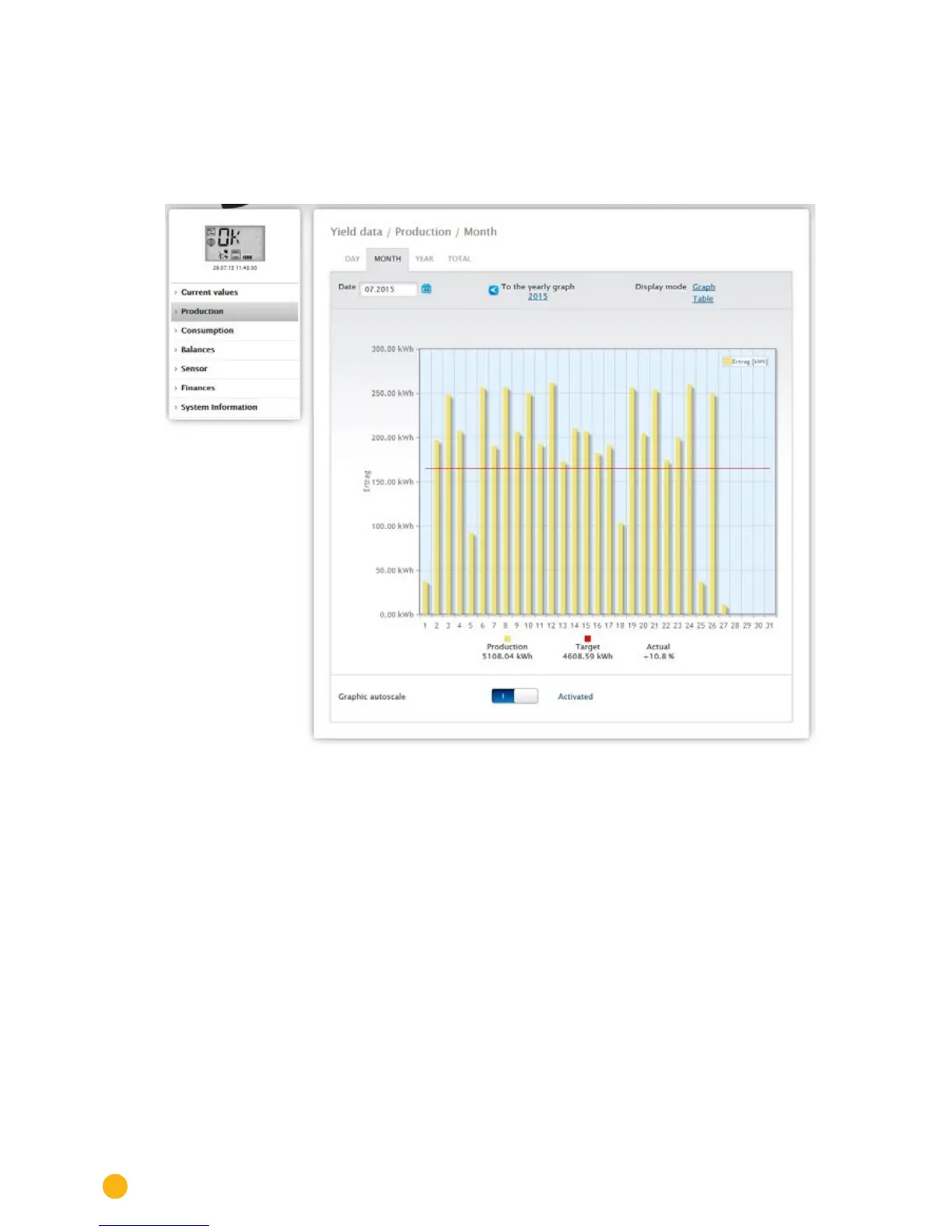

Fig.: Month view production graph

Solar-Log 1000 Specifications

General

Max Inverters	100
Display	LCD
Power Supply	24 VDC
Data Storage	SD Card
Enclosure Protection	IP20
Maximum Number of Strings	100
Ethernet Ports	1
USB Ports	1
Communication Interfaces	Ethernet, RS485
Supported Communication Protocols	Modbus, SunSpec
Power Consumption	5 W
