Operating via a web browser within your own network
Charging History 7-Days
A graph containing the last seven days with the following values is in the Charging History 7-Days tab.
•
Charge
The battery's charge levels from the last 7 days in watts.
•
Discharge
The battery's discharge levels from the last 7 days in watts.
•
Charge Level (%)
The battery's charge levels from the last 7 days as a percentage.
•
U (V)
The battery's voltage curve over the last 7 days.

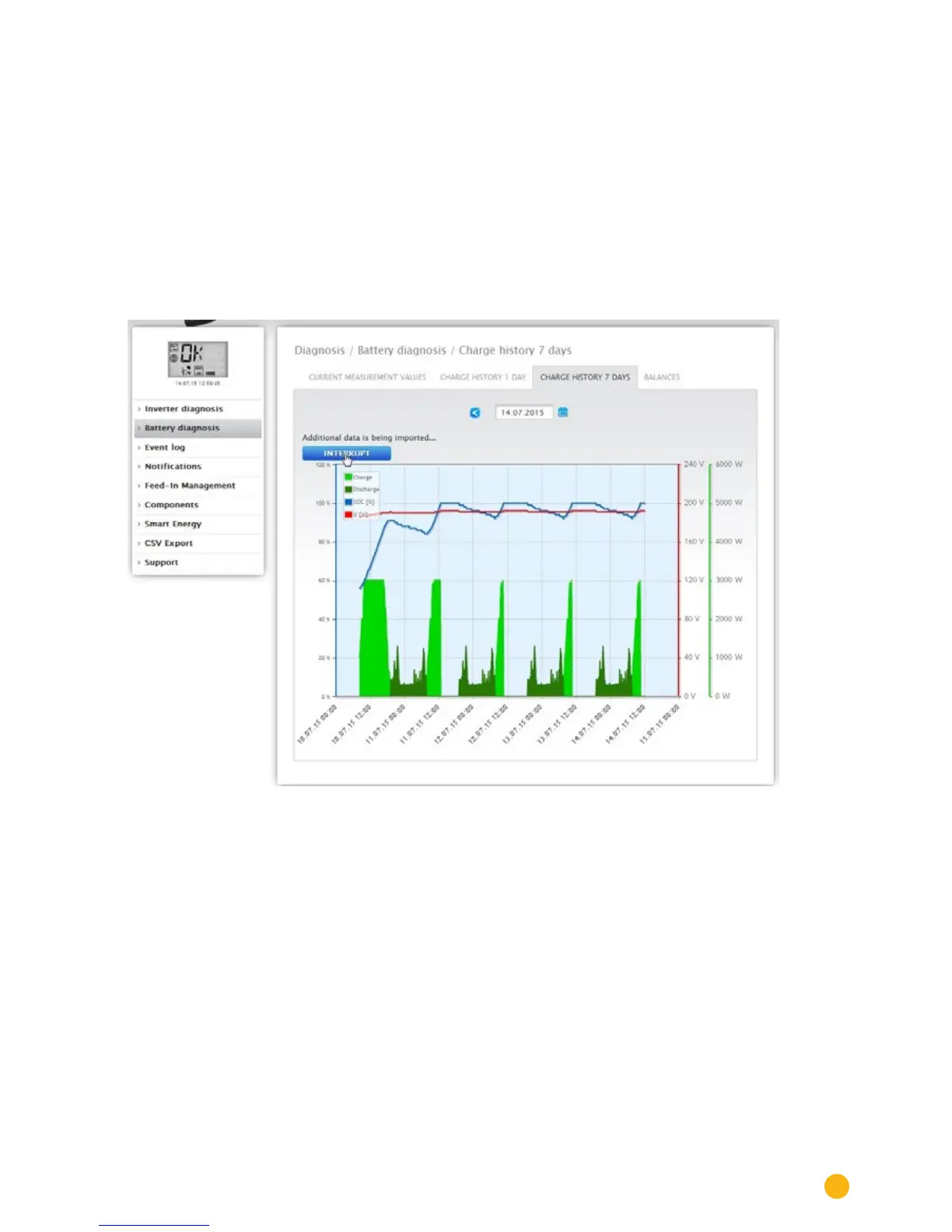

Fig.: Battery diagnostic - Charging History 7-Days
The
Date box offers the option to select a particular 7-day period for viewing. The arrow keys can also be
used to move to the next or previous date.
The individual values, at the top-left of the graph key, can be displayed or hidden with a mouse click.
If needed, click on the
interrupt button to stop loading the data.

Solar-Log 1000 Specifications

General

Max Inverters	100
Display	LCD
Power Supply	24 VDC
Data Storage	SD Card
Enclosure Protection	IP20
Maximum Number of Strings	100
Ethernet Ports	1
USB Ports	1
Communication Interfaces	Ethernet, RS485
Supported Communication Protocols	Modbus, SunSpec
Power Consumption	5 W
