Solid State Logic C100 HDS User Manual

433+)9/43
'-+ ? +)9/43389'11'9/43  389'11'9/43'3:'1
REMOTE
RMP 1
AES/EBU - CAES/EBU - BAES/EBU - A
ANALOGUE 17 – 24ANALOGUE 9 – 16ANALOGUE 1 – 8
OUT 9 – 16
IN 9 – 16
OUT 17 – 24
IN 17 – 24
OUT 1 – 8
IN 1 – 8
RMP 2
RMP 3
MIC/LINE IN 1 MIC/LINE IN 2 MIC/LINE IN 3 MIC/LINE IN 4 MIC/LINE IN 5 MIC/LINE IN 6 MIC/LINE IN 7 MIC/LINE IN 8
LINE OUT 1 – 8
CONNECT TO
ALPHA-LINK
PORT NUMBER
POWER
MIC/LINE IN 1 MIC/LINE IN 2 MIC/LINE IN 3 MIC/LINE IN 4 MIC/LINE IN 5 MIC/LINE IN 6 MIC/LINE IN 7 MIC/LINE IN 8
LINE OUT 1 – 8
CONNECT TO
ALPHA-LINK
PORT NUMBER
POWER
  & $ " $#
"$ "$ %"$

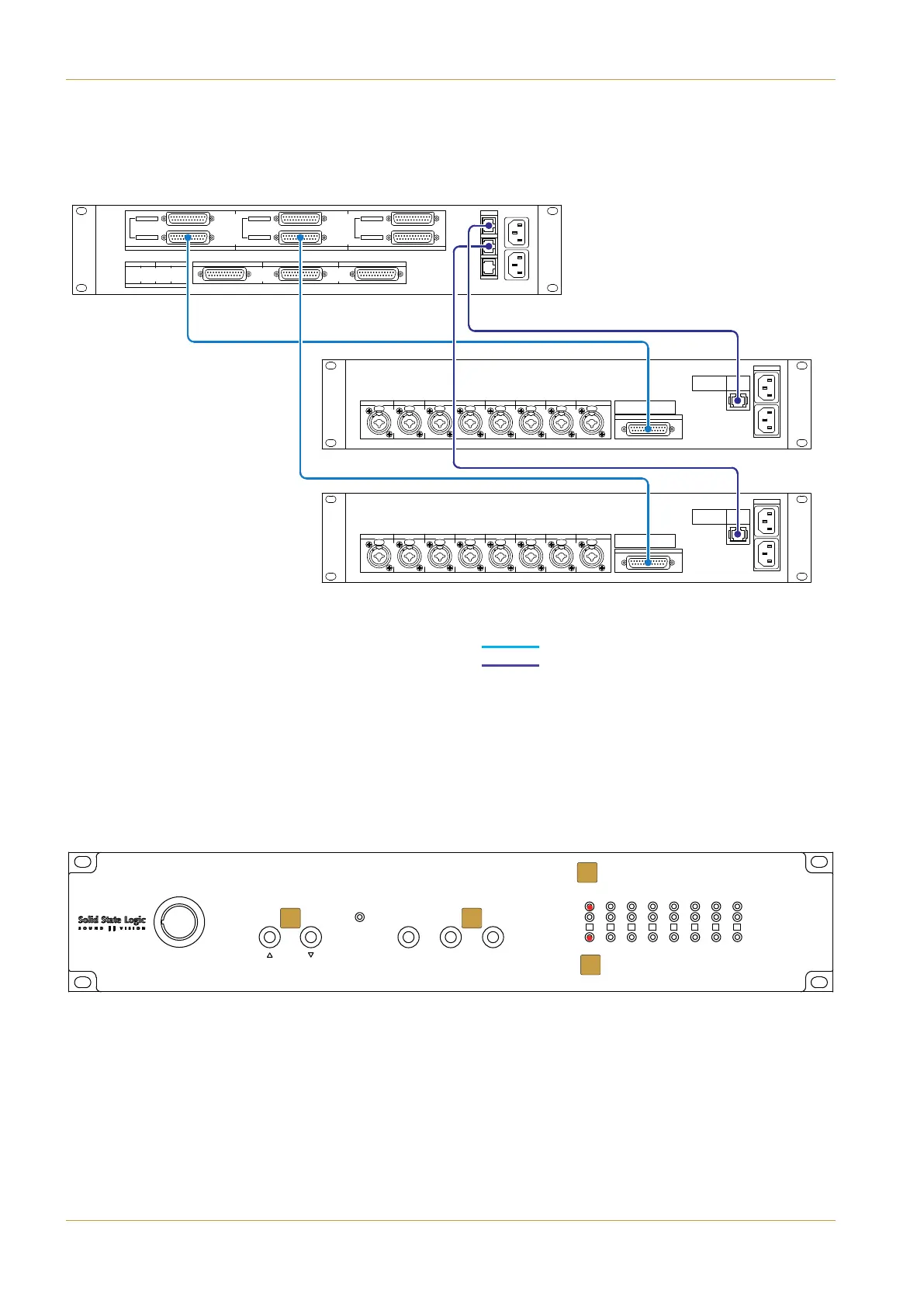

Alpha-Link Live-R
Alpha-Link 8-RMP 1
Alpha-Link 8-RMP 2
Remote Control Link (See notes)
D25M – D25M 8 channel balanced audio
POWER INPUT TYPE GAIN
010182837455565
12345678
dB
OVL
-15dB
+48v
ACTIVE
ID
1 2 3
4
3
2
1

Solid State Logic C100 HDS Specifications

Power

console power	100-240 V AC
power consumption	300-700 W

DSP and Audio Processing

maximum input channels	256
second input path channels	512
utility busses	24 mono
aux busses	24 mono
dedicated ASG buses	16
dedicated PGM buses	12
delay modules	64 modules, 5.4 seconds each

Weight and Dimensions

max height	100.6 cm
weight (40 fader)	190 kg
height adjustment	0 to +1 cm
width (40 fader, flat end trim)	143.1 cm
max depth	92.6 cm
