Location: Rear Panel
Connector Type: 25-way D-type male
Pin Description Notes:
1 Input 1A
14 Input 1B
2 Input 2A
15 Input 2B
3 Input 3A
16 Input 3B
4 Input 4A
17 Input 4B
5 Input 5A
18 Input 5B
6 Input 6A
19 Input 6B
7 Input 7A
20 Input 7B
8 Input 8A
21 Input 8B
9 Input 9A
22 Input 9B
10 Input 10A
23 Input 10B
11 Input 11A
24 Input 11B
12 Input 12A
25 Input 12B
13 0V
 =<9=<;
Location: Rear Panel
Connector Type: 25-way D-type female
Pin Description Notes:
1 Output 1A
14 Output 1B
2 Output 2A
15 Output 2B
3 Output 3A
16 Output 3B
4 Output 4A
17 Output 4B
5 Output 5A
18 Output 5B
6 Output 6A
19 Output 6B
7 Output 7A
20 Output 7B
8 Output 8A
21 Output 8B
9 Output 9A
22 Output 9B
10 Output 10A
23 Output 10B
11 Output 11A
24 Output 11B
12 Output 12A
25 Output 12B
13 +12V 450mA maximum
 
"$   (
" 
0
F
E
D
C
B
A
9
8
7
6
5
4
3
2
1
0
F
E
D
C
B
A
9
8
7
6
5
4
3
2
1
1 - 1213 - 24 IN1 - 1213 - 24 OUT
25 - 3637 - 48 INOUT
POWER APOWER B
NETWORK
ADDRESSCONSOLE BOX
25 - 3637 - 48

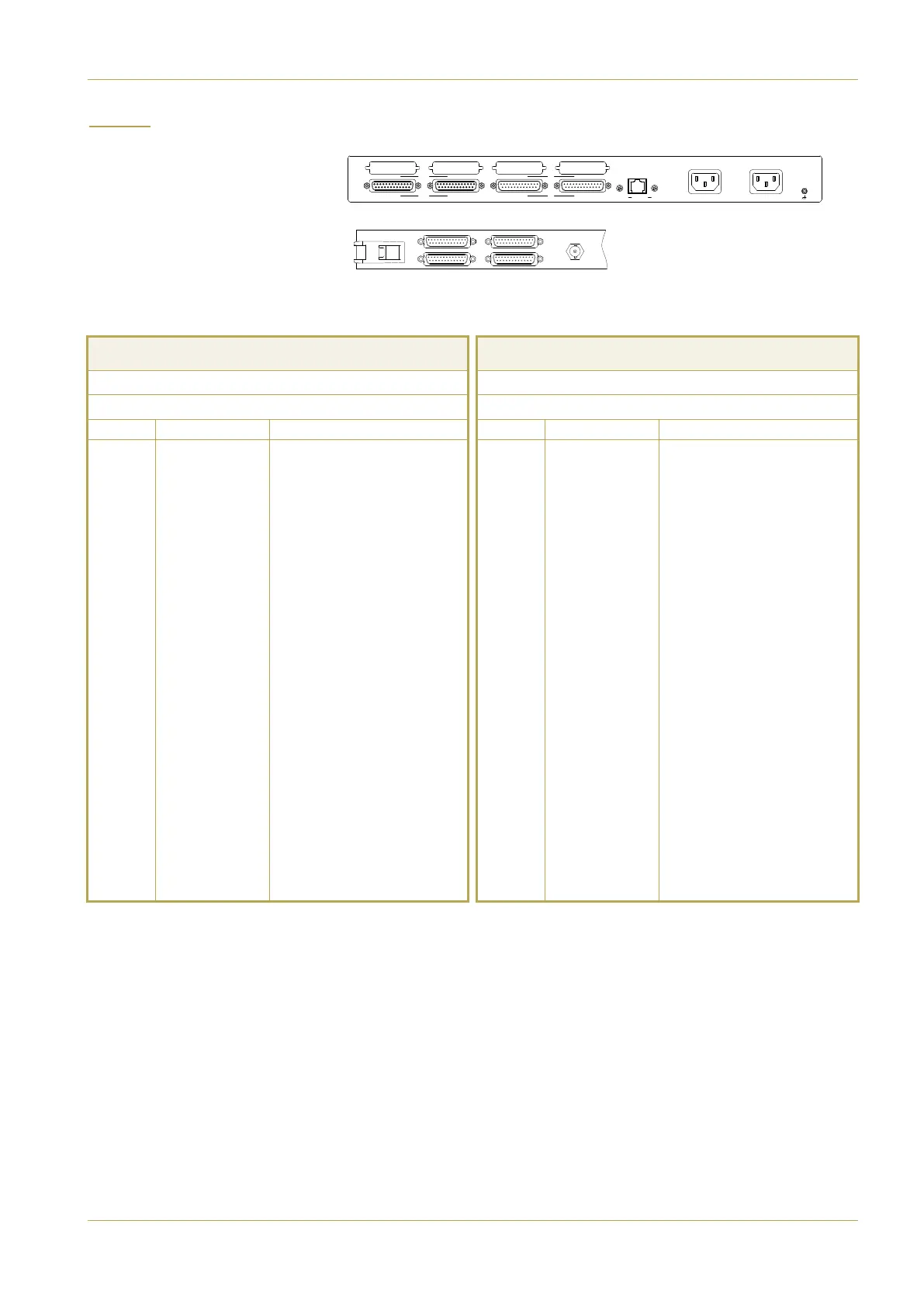

C100 HDS Installation Manual Section 4 – Appendices | Page 4-13
Connector Pinouts
OUT 13-24
OUT 1-12IN 1-12
IN 13-24
SYNC

Solid State Logic C100 HDS Specifications

Power

console power	100-240 V AC
power consumption	300-700 W

DSP and Audio Processing

maximum input channels	256
second input path channels	512
utility busses	24 mono
aux busses	24 mono
dedicated ASG buses	16
dedicated PGM buses	12
delay modules	64 modules, 5.4 seconds each

Weight and Dimensions

max height	100.6 cm
weight (40 fader)	190 kg
height adjustment	0 to +1 cm
width (40 fader, flat end trim)	143.1 cm
max depth	92.6 cm
