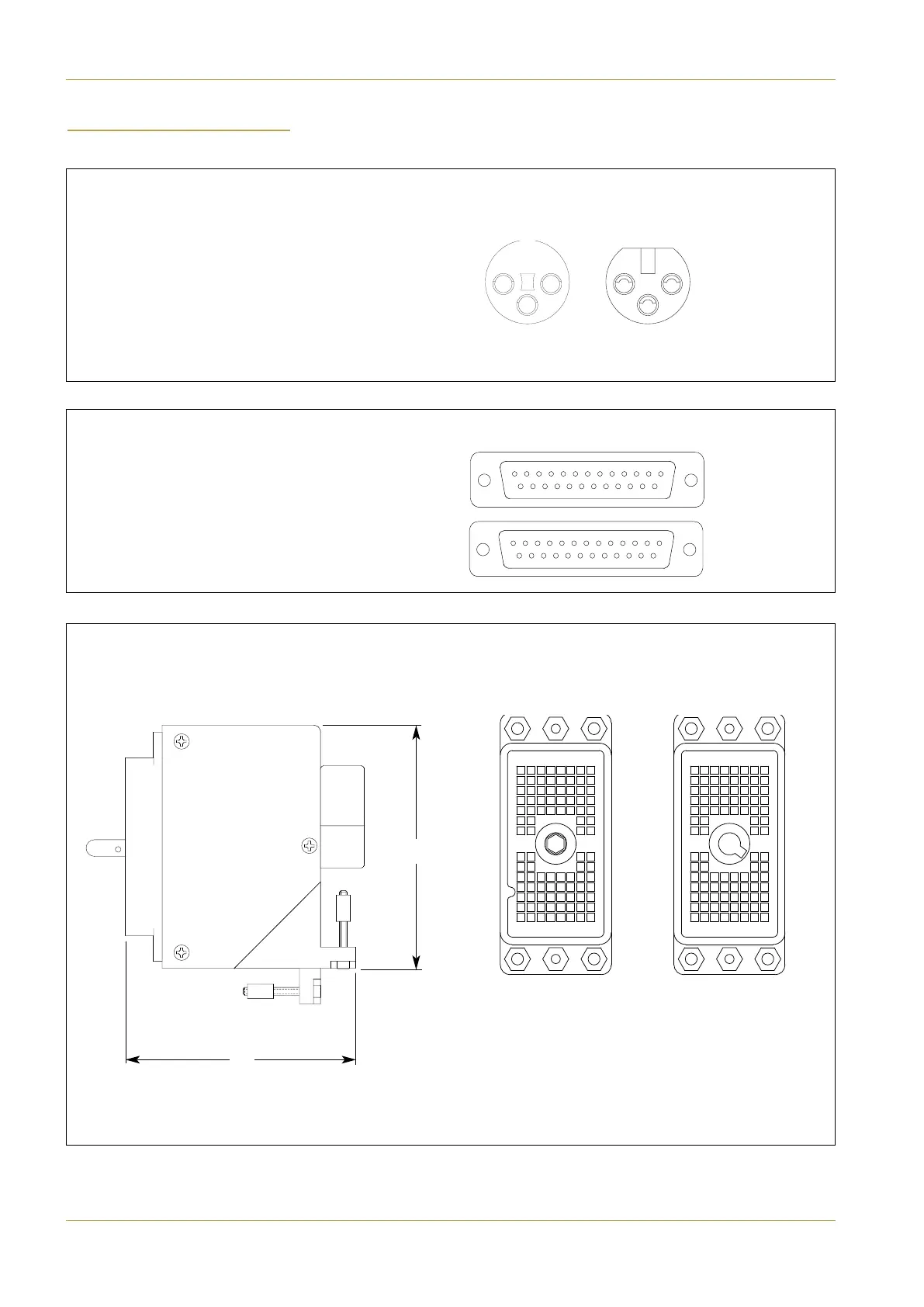

Solid State Logic C100 HDS User Manual

Connectors Viewed From Wiring Side
1
2
3
4
5
14
15
16
17
6
7
8
9
10
18
19
20
21
11
12
13
22
23
24
25
1
2
3
4
5
14
15
16
17
6
7
8
9
10
18
19
20
21
11
12
13
22
23
24
25
$)  %$ 
25-way
Dimensions: 55 x 15mm (approx.)
Cable Dia: 8mm (typical)
Screwlock thread: 440-UNC
Plug
Socket
Connectors Viewed From Wiring Side
Plug
Socket
1
2
3
1
2
3
(" 
Dimensions: 19 x 60mm (approx.)
Cable Dia: 8-12mm (typical)
Pinout for balanced audio:
Pin 1 Screen/Ground
Pin 2 Hot (+ve)
Pin 3 Cold (-ve)
Hood Plug
Connectors Viewed From Wiring Side
Socket
  @%#  $ "%$ % "
Dimensions: 29mm x 69mm
70
68
12345678
A
B
C
D
E
F
G
H
J
K
L
M
N
P
A
B
C
D
E
F
G
H
J
K
L
M
N
P
87654321
$" $#
Page 4-6 | Section 4 – Appendices C100 HDS Installation Manual
Connector Details

Solid State Logic C100 HDS Specifications

Power

console power	100-240 V AC
power consumption	300-700 W

DSP and Audio Processing

maximum input channels	256
second input path channels	512
utility busses	24 mono
aux busses	24 mono
dedicated ASG buses	16
dedicated PGM buses	12
delay modules	64 modules, 5.4 seconds each

Weight and Dimensions

max height	100.6 cm
weight (40 fader)	190 kg
height adjustment	0 to +1 cm
width (40 fader, flat end trim)	143.1 cm
max depth	92.6 cm
