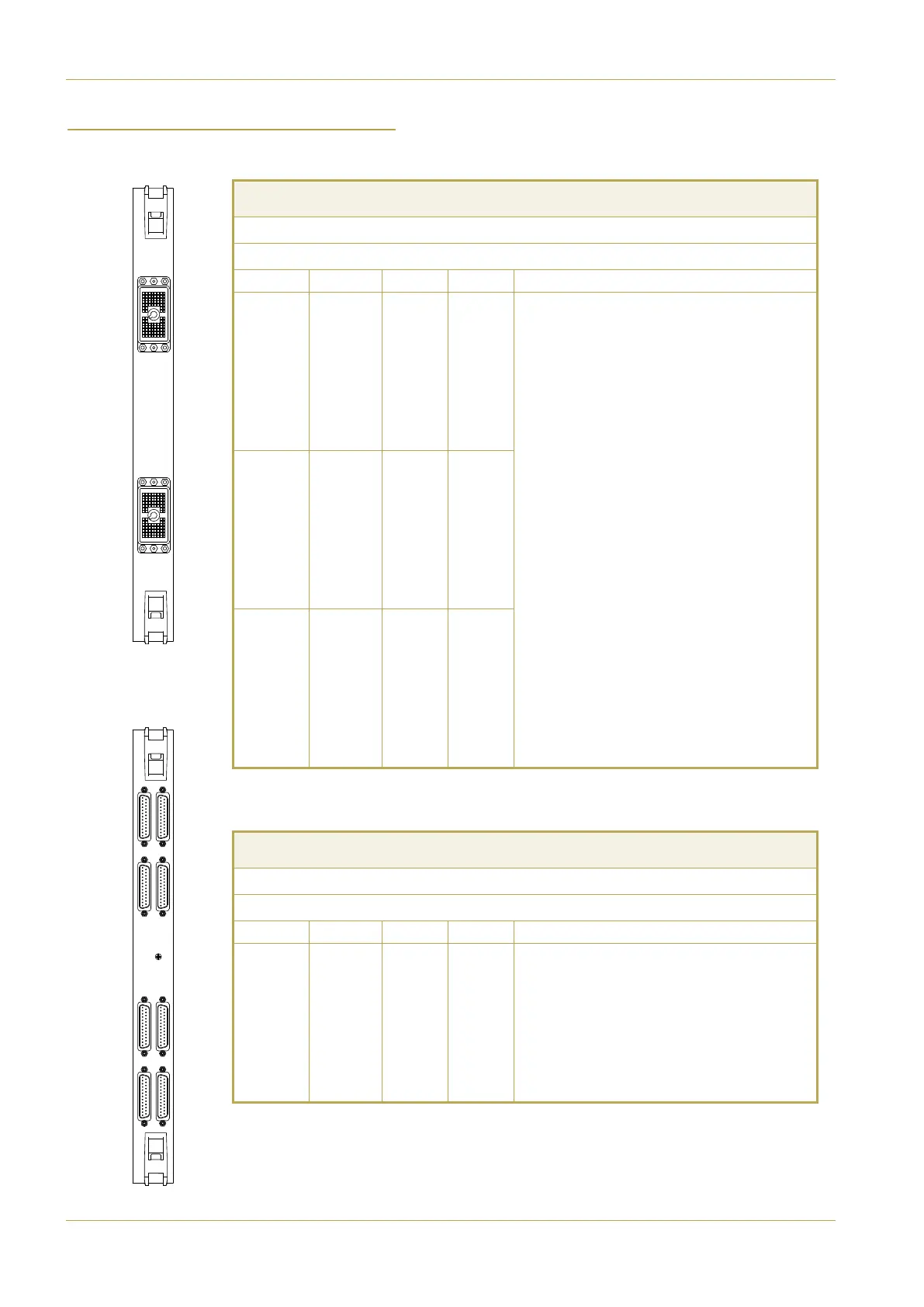

Connector Pinouts
Page 4-10 | Section 4 – Appendices C100 HDS Installation Manual
7*580=.7=<
Location: 944 Analogue Card
Connector Type: DL96 female
Cct Hot Cold Screen Notes
1 A1 B1 C1 All other pins unused
2 A2 B2 C2
3 A3 B3 C3
4 A4 B4 C4
5 A5 B5 C5
6 A6 B6 C6
7 A7 B7 C7
8 A8 B8 C8
9 D1 E1 F1
10 D2 E2 F2
11 D3 E3 G1
12 D4 E4 G2
13 D5 E5 G7
14 D6 E6 G8
15 D7 E7 F7
16 D8 E8 F8
17 L1 K1 J1
18 L2 K2 J2
19 L3 K3 H1
20 L4 K4 H2
21 L5 K5 H7
22 L6 K6 H8
23 L7 K7 J7
24 L8 K8 J8
9 - 16 1 - 8
25 - 32 17 - 24
AES/EBU IN
9 - 16 1 - 8
25 - 32 17 - 24
902XB
AES/EBU OUT
"@%  $ 
A1
A1
ANALOGUE IN
1 - 24
ANALOGUE OUT
1 - 24
904XA
#%7*7-=<@@@@
Location: 942 DIO Card
Connector Type: 25-way D-type female
Cct Hot Cold Screen Notes
1 24 12 25 Pin 13 unused
2 10 23 11
3 21 9 22
4 7 20 8
5 18 6 19
6 4 17 5
7 15 3 16
8 1 14 2

Solid State Logic C100 HDS Specifications

Power

console power	100-240 V AC
power consumption	300-700 W

DSP and Audio Processing

maximum input channels	256
second input path channels	512
utility busses	24 mono
aux busses	24 mono
dedicated ASG buses	16
dedicated PGM buses	12
delay modules	64 modules, 5.4 seconds each

Weight and Dimensions

max height	100.6 cm
weight (40 fader)	190 kg
height adjustment	0 to +1 cm
width (40 fader, flat end trim)	143.1 cm
max depth	92.6 cm
