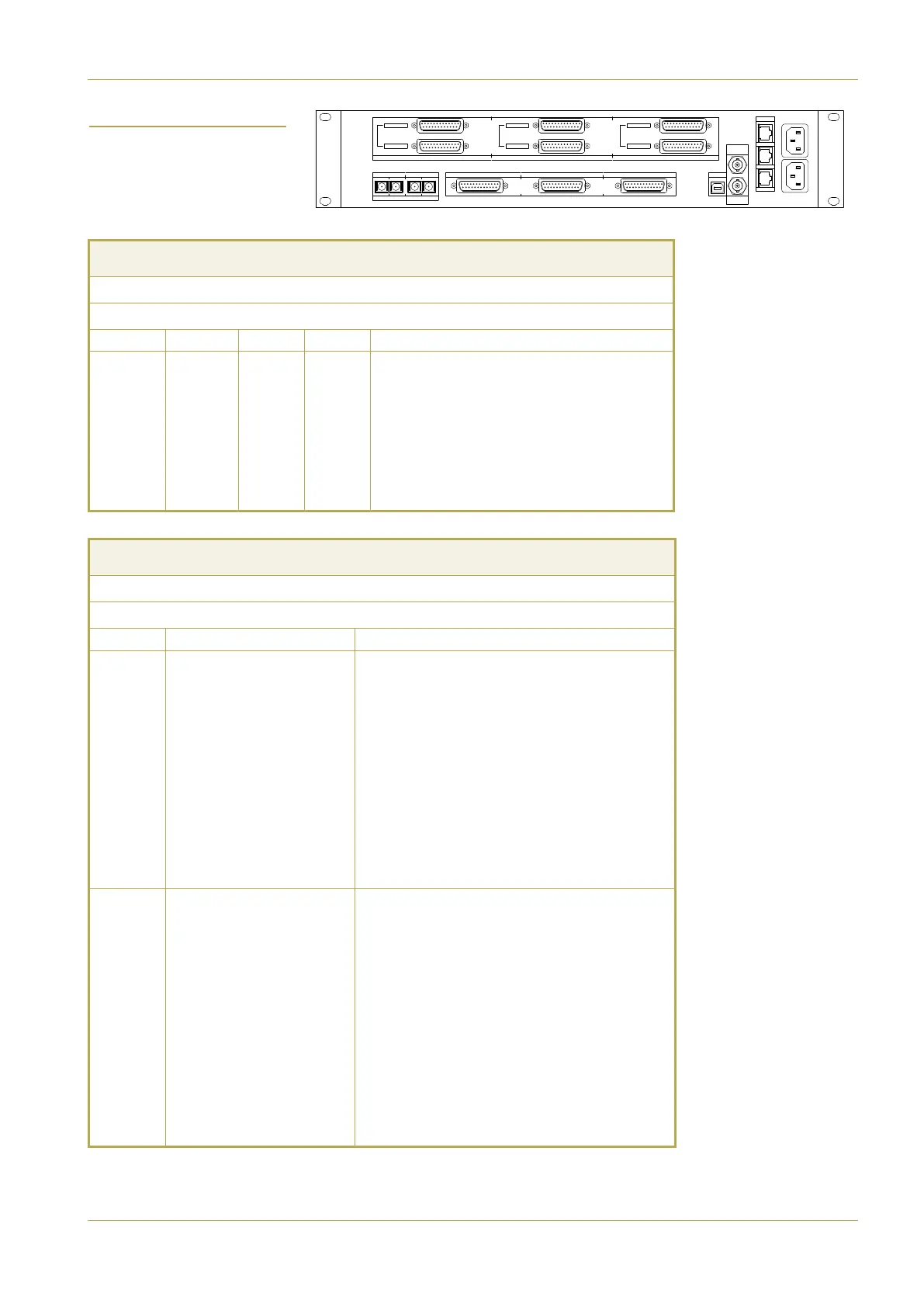

Location: Alpha-Link Live rear panel
Connector Type: 25-way D-type female
Cct Hot Cold Screen Notes
1 24 12 25 Pin 13 unused
2 10 23 11
3 21 9 22
4 7 20 8
5 18 6 19
6 4 17 5
7 15 3 16
8 1 14 2
#%79=<;=<9=<;@@@
Location: Alpha-Link Live Rear Panel
Connector Type: 25-way D-type female
Pin Description Notes:
1 Out channels 7/8 + Outputs
14 Out channels 7/8 -
2 Ground
15 Out channels 5/6 +
3 Out channels 5/6 -
16 Ground
4 Out channels 3/4 +
17 Out channels 3/4 -
5 Ground
18 Out channels 1/2 +
6 Out channels 1/2 -
19 Ground
7 In channels 7/8 + Inputs
20 In channels 7/8 -
8 Ground
21 In channels 5/6 +
9 In channels 5/6 -
22 Ground
10 In channels 3/4 +
23 In channels 3/4 -
11 Ground
24 In channels 1/2 +
12 In channels 1/2 -
25 Ground
13 -
WORD
CLOCK
OUT
REMOTE
RMP 1
POWER
WORD CLOCK
VIDEO IN
USBAES/EBU - CAES/EBU - BAES/EBU - AOUT 1 IN 1 OUT 2 IN 2
MADI
ANALOGUE 17 – 24ANALOGUE 9 – 16ANALOGUE 1 – 8
OUT 9 – 16
IN 9 – 16
OUT 17 – 24
IN 17 – 24
OUT 1 – 8
IN 1 – 8
RMP 2
RMP 3
C100 HDS Installation Manual Section 4 – Appendices | Page 4-11
Connector Pinouts

Solid State Logic C100 HDS Specifications

Power

console power	100-240 V AC
power consumption	300-700 W

DSP and Audio Processing

maximum input channels	256
second input path channels	512
utility busses	24 mono
aux busses	24 mono
dedicated ASG buses	16
dedicated PGM buses	12
delay modules	64 modules, 5.4 seconds each

Weight and Dimensions

max height	100.6 cm
weight (40 fader)	190 kg
height adjustment	0 to +1 cm
width (40 fader, flat end trim)	143.1 cm
max depth	92.6 cm
