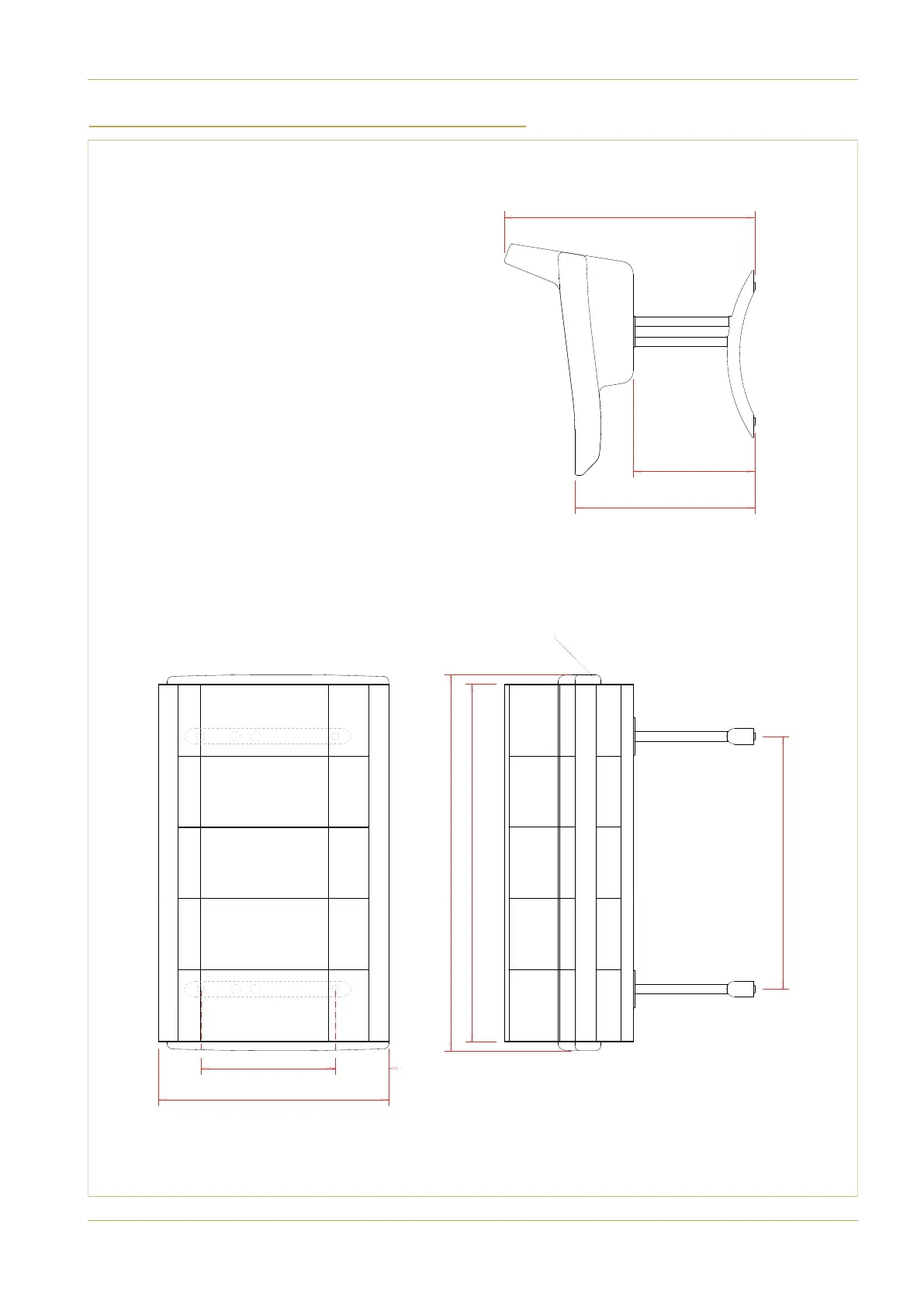

Solid State Logic C100 HDS - Console Footprint Drawing - 32 Channels

OPTIONAL SIDE TRIM
(INCLUDING TRIM)
(WITHOUT TRIM)
1 – 8 9 – 16 25 – 3217 – 24Master Section
488
[1'-7 1/4"]
723
[2'-4 1/2"]
1006
[3'-3 1/2"]
216
[8 1/2"]
540
[1'-9 1/4"]
925
[3'-0 1/2"]
1431
[4'-8 1/4"]
1503
[4'-11 1/4"]
1011
[3'-3 3/4"]
C100 HDS  32 Channel – (40 faders)  Weight: 123kg [271 lb] Heat: 400W (Max. dual CPU) Noise:Fanless Drg ref:GC v1.1 6/11
# $ "$ "' @ #
C100 HDS Installation Manual Section 4 – Appendices | Page 4-5
Specifications
