Solid State Logic C100 HDS User Manual

1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
  & $   " $"  %$
RJ45 Plug RJ45 Plug
7*580=.=<9=<@
Location: Alpha-Link 8-RMP rear panel
Connector Type: 25-way D-type female
Cct Hot Cold Screen Notes
1 24 12 25 Pin 13 unused
2 10 23 11
3 21 9 22
4 7 20 8
5 18 6 19
6 4 17 5
7 15 3 16
8 1 14 2
  "
2,:89187.79=<;@
Location: Alpha-Link 8-RMP Rear panel
Connector Type: XLR 3-pin female
Pin Description Notes:
1 Ground
2 + signal
3 – signal
2
3
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
1
MIC/LINE IN 1 MIC/LINE IN 2 MIC/LINE IN 3 MIC/LINE IN 4 MIC/LINE IN 5 MIC/LINE IN 6 MIC/LINE IN 7 MIC/LINE IN 8
LINE OUT 1 – 8
CONNECT TO
ALPHA-LINK
PORT NUMBER
POWER

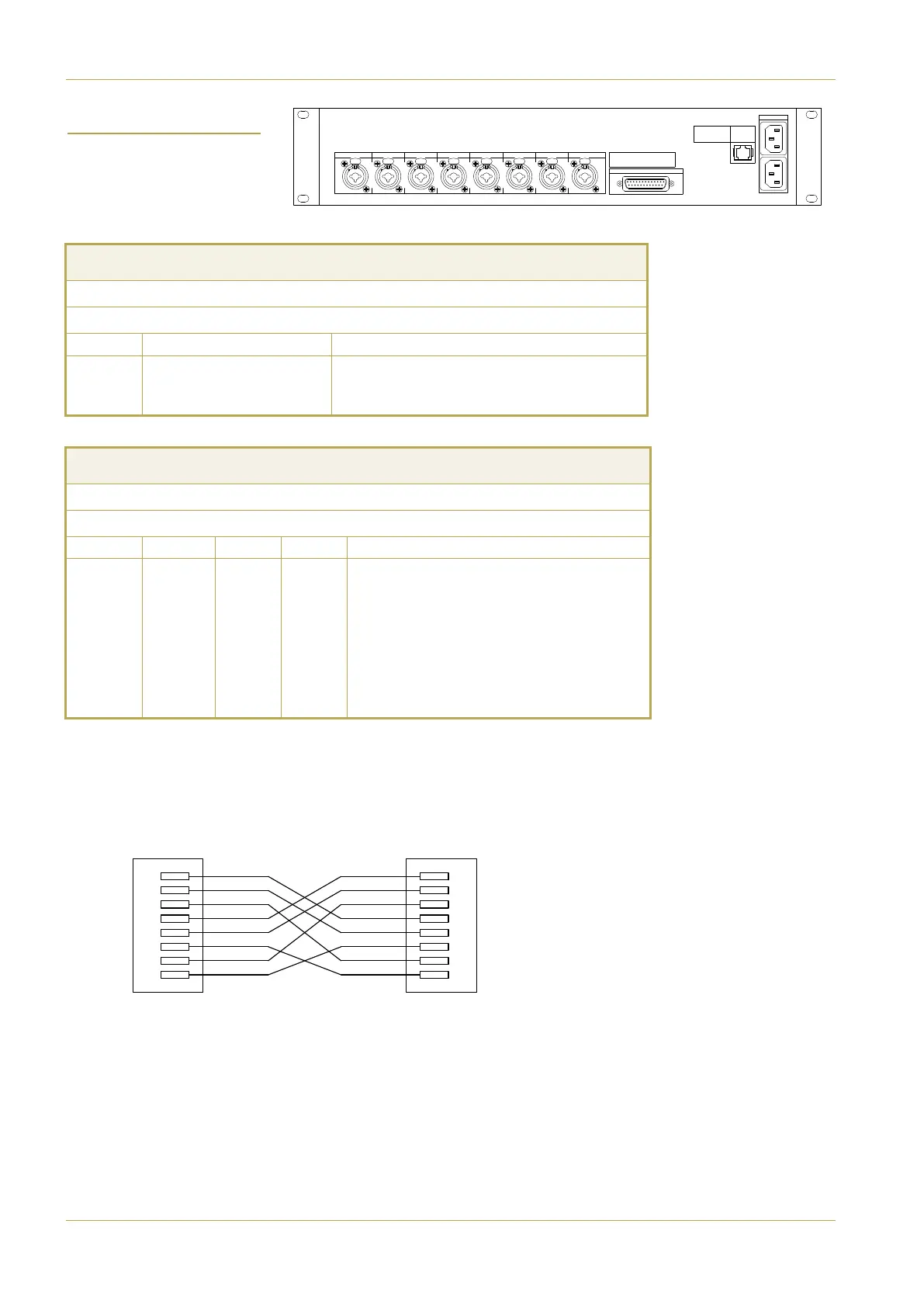

Page 4-12 | Section 4 – Appendices C100 HDS Installation Manual
Connector Pinouts
*Applicable to Alpha-Link Live only. Alpha-Link Live-R can use pin-pin Ethernet compatible cables

Solid State Logic C100 HDS Specifications

Power

console power	100-240 V AC
power consumption	300-700 W

DSP and Audio Processing

maximum input channels	256
second input path channels	512
utility busses	24 mono
aux busses	24 mono
dedicated ASG buses	16
dedicated PGM buses	12
delay modules	64 modules, 5.4 seconds each

Weight and Dimensions

max height	100.6 cm
weight (40 fader)	190 kg
height adjustment	0 to +1 cm
width (40 fader, flat end trim)	143.1 cm
max depth	92.6 cm
