Solid State Logic C100 HDS User Manual

SSL TCP/IP
NET 1 NET 2
4 3 2 1
8 7 6 5
5
1 - 1213 - 24 IN1 - 1213 - 24 OUT
25 - 3637 - 48 INOUT
POWER APOWER B
NETWORK
ADDRESSCONSOLE BOX
25 - 3637 - 48
4321

'-+ ? +)9/43389'11'9/43  389'11'9/43'3:'1

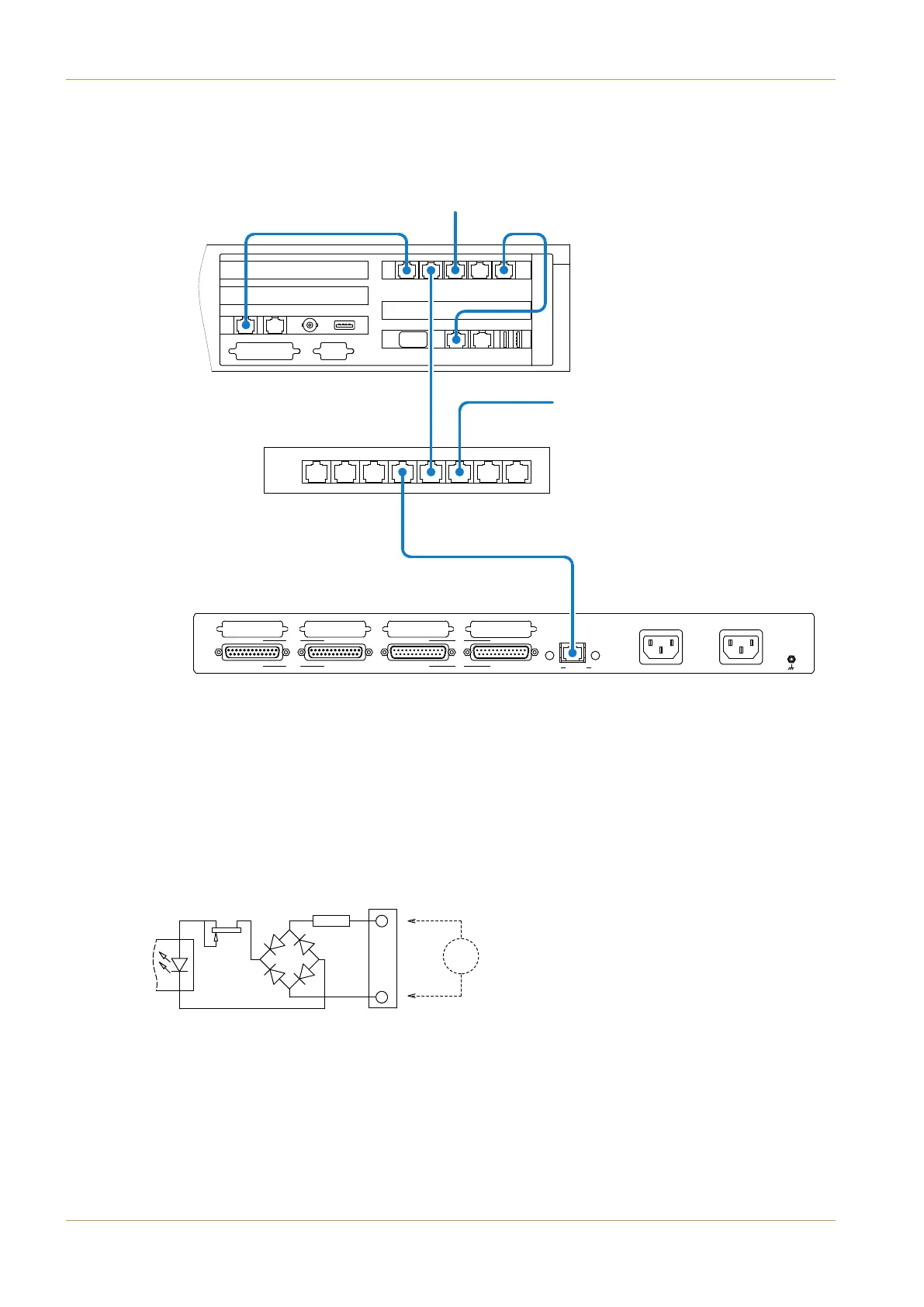

GP I/O Box Rear Panel
Input Circuit
 D# $"#
GPI Input Connectors
25-way D-type Male
Ground
Connection
Point
GPI Output Connectors
25-way D-type Female
RJ45–RJ45 Network Lead
Blackrock Rear
‘SSL Network’ Router
A
B
The input is triggered by applying an AC or DC
voltage of between 4V and 30V. The current
drawn is approximately 10mA.
V

Solid State Logic C100 HDS Specifications

Power

console power	100-240 V AC
power consumption	300-700 W

DSP and Audio Processing

maximum input channels	256
second input path channels	512
utility busses	24 mono
aux busses	24 mono
dedicated ASG buses	16
dedicated PGM buses	12
delay modules	64 modules, 5.4 seconds each

Weight and Dimensions

max height	100.6 cm
weight (40 fader)	190 kg
height adjustment	0 to +1 cm
width (40 fader, flat end trim)	143.1 cm
max depth	92.6 cm
