Sony HCD-GT3D - SECTION 2 DISASSEMBLY; 2-5. LOADING PANEL ASSY

HCD-GT3D
11

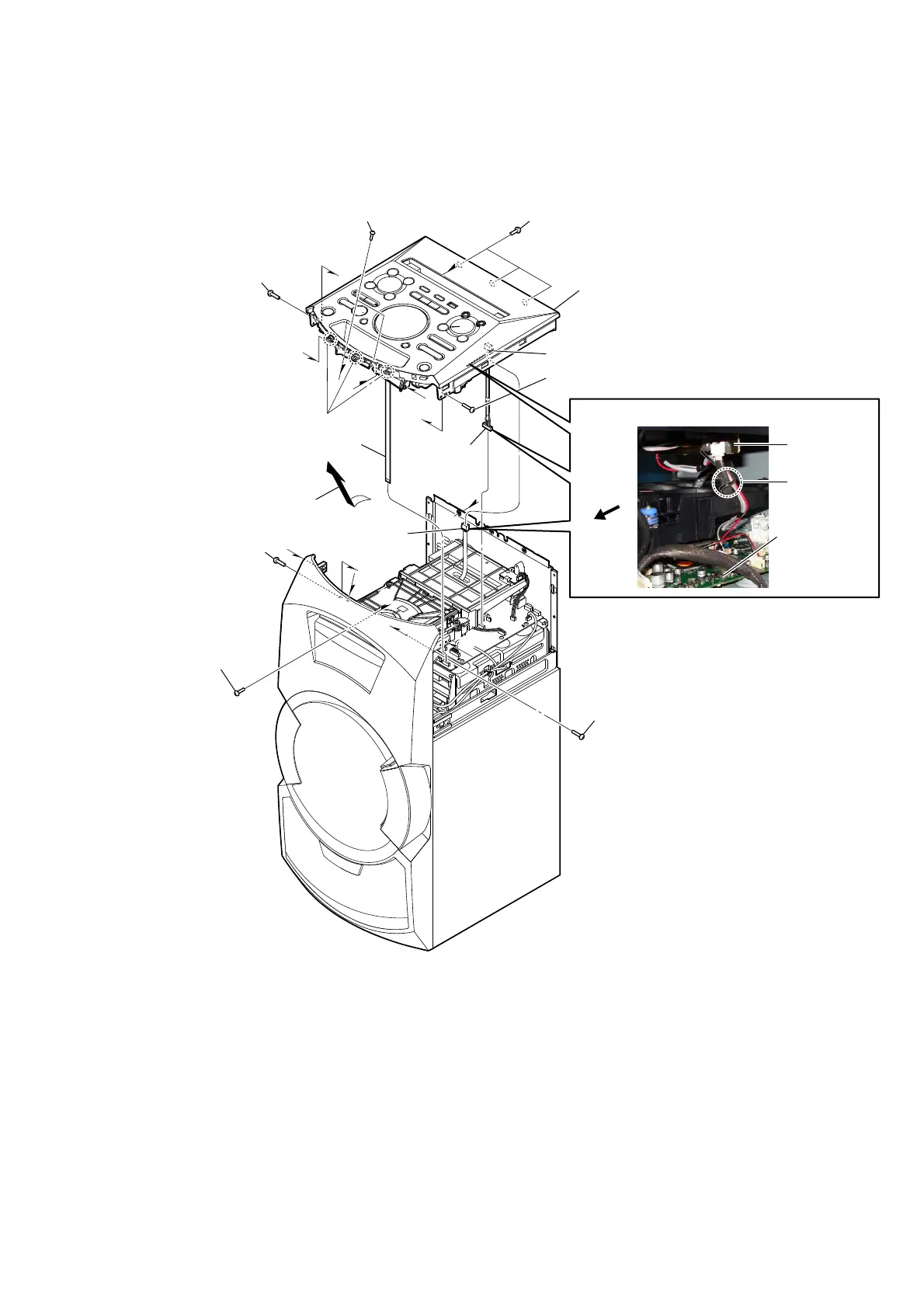

2-3. TOP PANEL SECTION
A
A
G
F
F
D
G
E
E
B
C
C
D
7 Remove the top panel section
in the direction of the arrow.
8 Remove the wires from pin, lead.
1 three screws (+BVTP 3 × 8)
2 one screw (+BVTP 3 × 8)
5 one screw (+BVTP 3 × 8)
5 one screw (+BVTP 3 × 8)
3 two screws (+BVTP 3 × 8)
9 wire (flat type) (11 core) (CN3402)
0 CN451 (8P)
4 one screw (+BVTP 3 × 8)
4 one screw (+BVTP 3 × 8)
qa CN3200 (4P)
qs top panel section
6 three claws
B
:LUHVHWWLQJ
MOTHERBOARD
board
MIC board
pin, lead
front side
Ver. 1.2
