Sony HCD-GT3D - SECTION 2 DISASSEMBLY; 2-7. BACK PANEL

HCD-GT3D
13

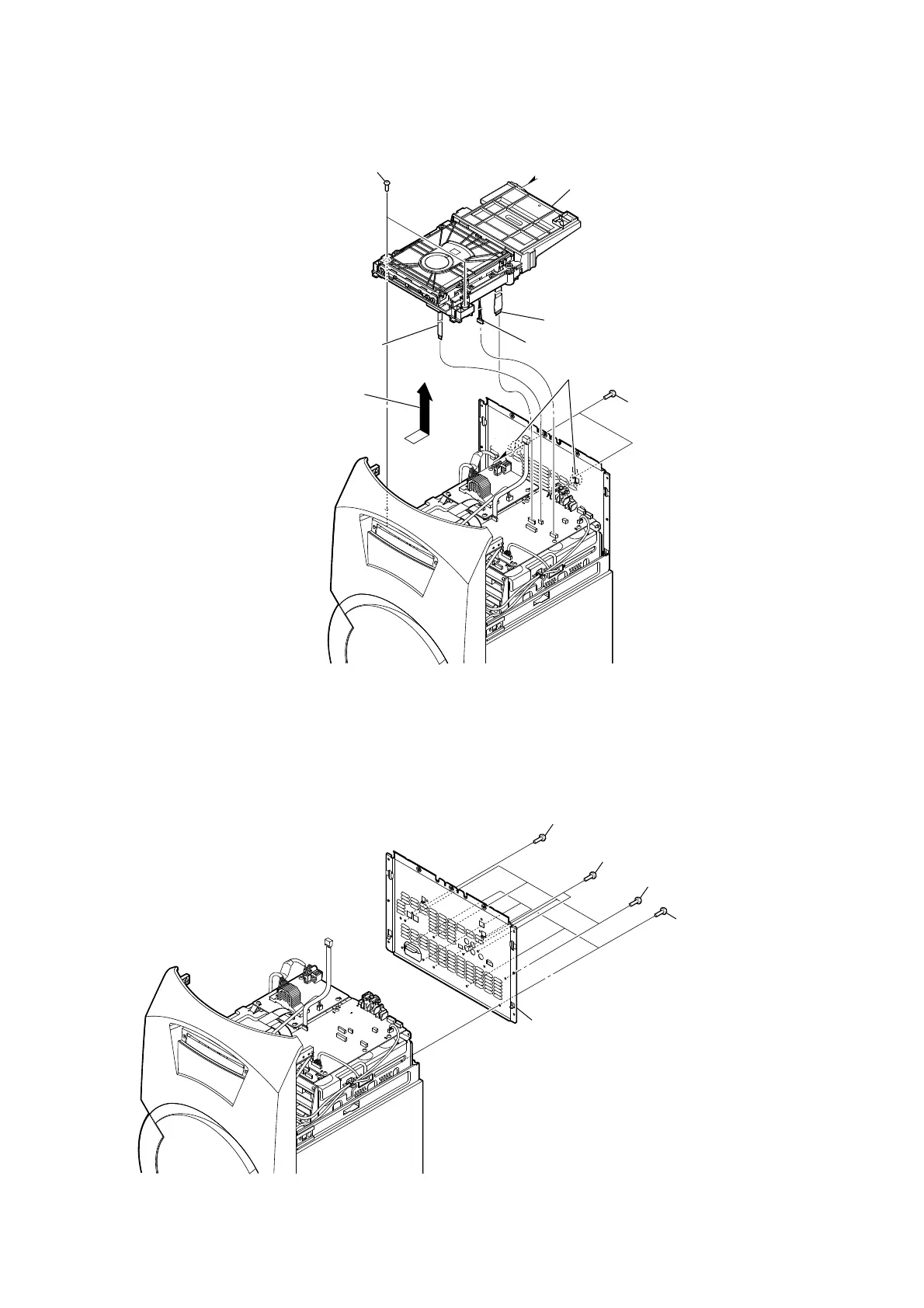

2-6. CDM SECTION
A
2 two screws (+BVTP 3 × 8)
5 CN401 (6P)
6 wire (flat type) (5 core) (CN303)
8 CDM section
7 wire (flat type) (24 core) (CN302)
3 two claws
1 two screws (+BVTP 3 × 8)
4 Remove the CDM section
in the direction of the arrow.
A
2-7. BACK PANEL
1 two screws (+BVTP 3 × 8)
3 four screws (+BVTP 3 × 8)
4 five screws (+BVTP 3 × 8)
5 panel, back
2 one screw (+BVTP 3 × 8)
