Sony HCD-GT3D - SECTION 2 DISASSEMBLY; 2-14. LOUDSPEAKER (20 CM)-087-11

HCD-GT3D
20

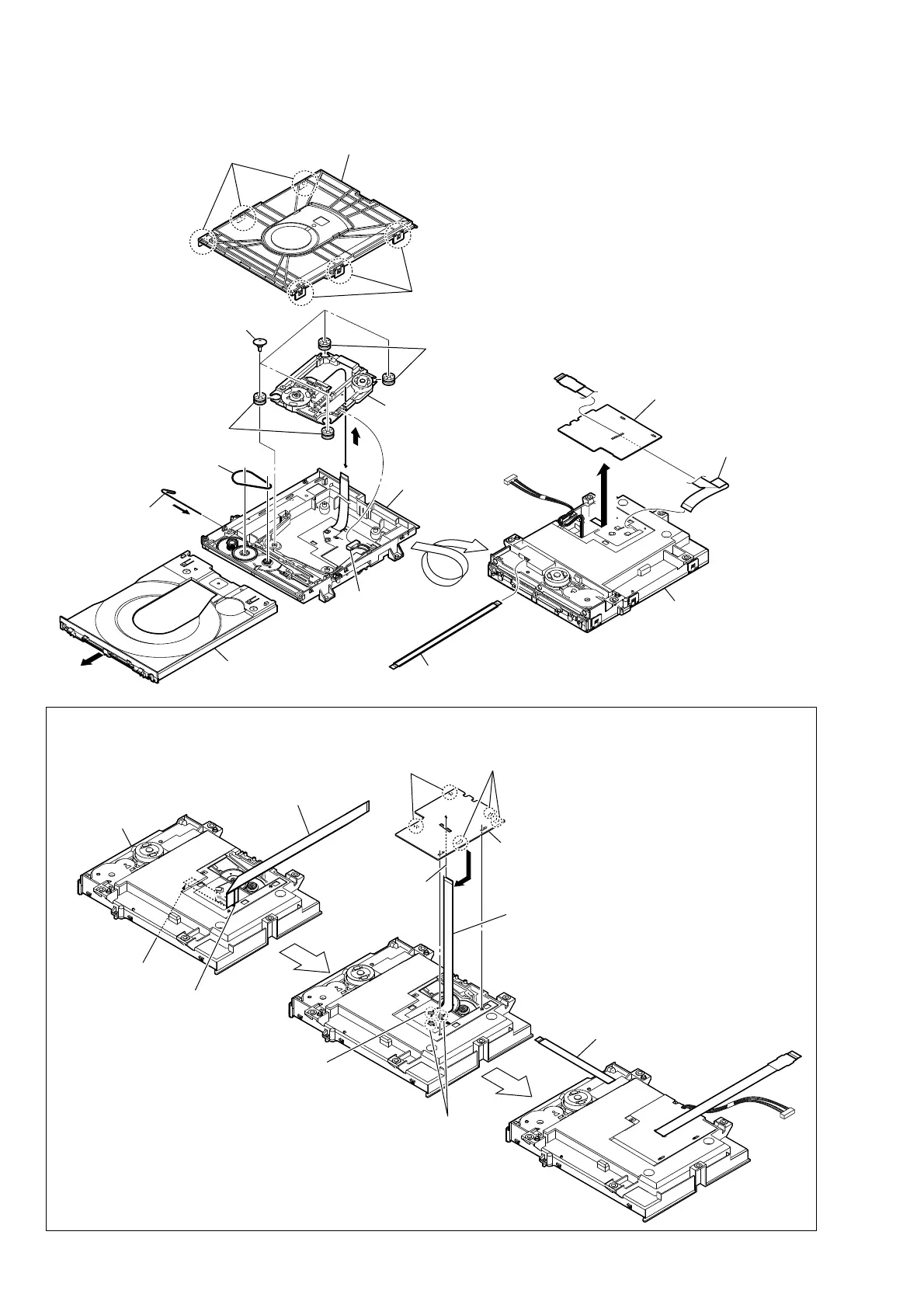

2-15. SERVICE, OPTICAL DEVICE(7G), WIRE (FLAT TYPE)
7 four insulator screws
0 connector
qa insulator
qa insulator
6 belt
3 Insert the clip etc.
5 tray
qs service, optical device(7G)
qg
qj wire (flat type) (24 core)
1 three claws
4
8
9
2 chuck holder assy (T)
– Bottom view –
loading assy (T)
qd base, lo assy
qh holder, FFC
qf wire(flat type) (5 core)
Under the guide
Under the guide
(Fold area)
1 wire (flat type) (24 core)
2 Through the hole
3 Through the hole
terminal face
loading assy (T)
7 wire (flat type) (24 core)
6 holder, FFC
5 three claws
5 two claws
8 wire (flat type) (5 core)
,QVWDOODWLRQRIZLUHIODWW\SHFRUHDQGZLUHIODWW\SHFRUH
Note: This illustration sees the loading assy (T) from bottom side.
4
1 three claws
