Sony HCD-GT3D - SECTION 2 DISASSEMBLY; 2-10. SUB CHASSIS SECTION

HCD-GT3D
16

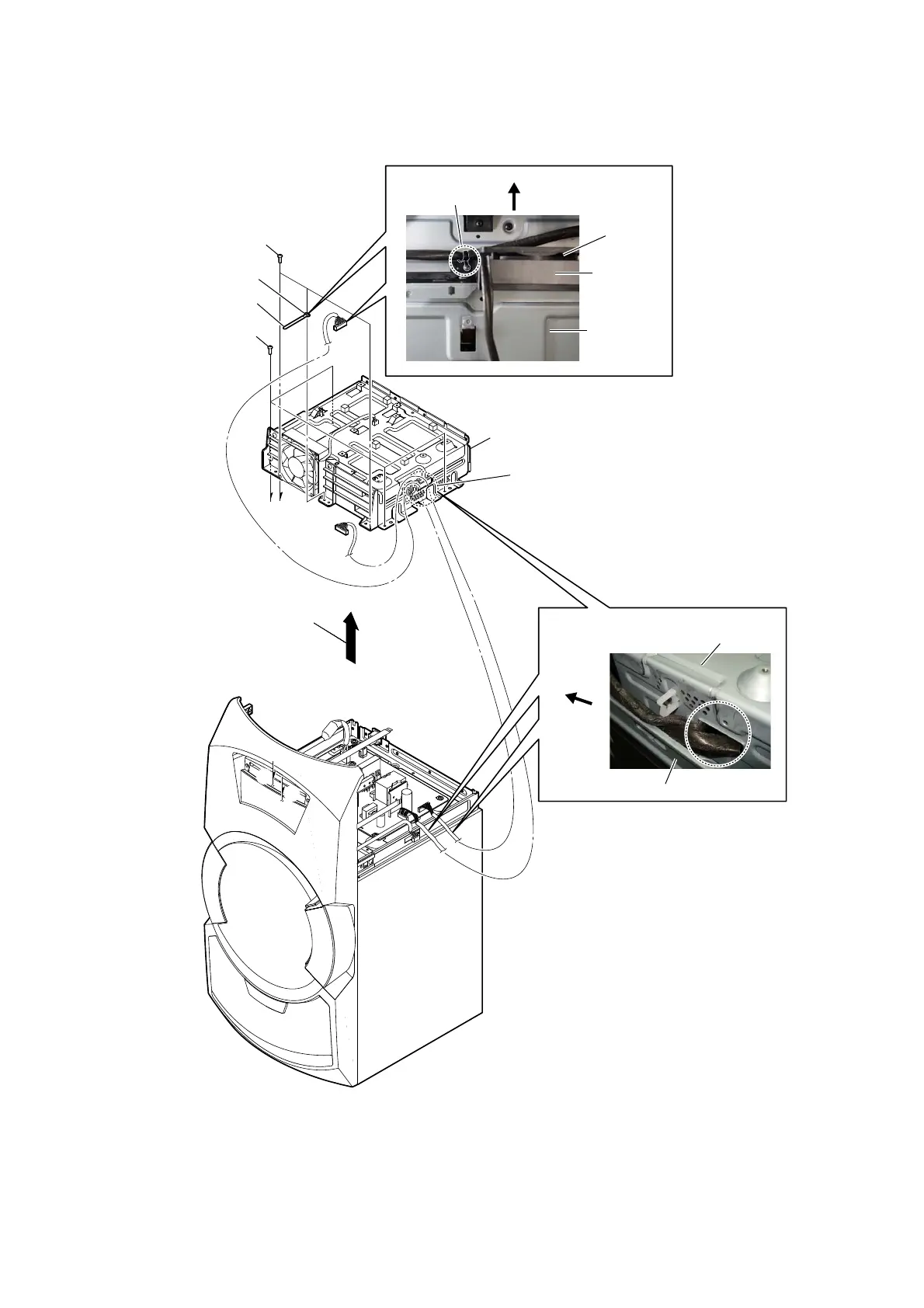

2-10. SUB CHASSIS SECTION
A
B
A
B
1 Remove the wire from clamp.
3 clamp
2 three screws (+BV3 (3-CR))
4 four screws (+BV3 (3-CR))
5 Remove the sub chassis section
in the direction of the arrow.
6 Draw out the wires from chassis, sub.
7 sub chassis section
:LUHVHWWLQJ
:LUHVHWWLQJ
front side
chassis, sub
chassis
bracket, fan
chassis, sub
clamp
fan, DC
front side
Ver. 1.2
