Sony HCD-GT3D - SECTION 7 EXPLODED VIEWS; 7-6. FRONT PANEL SECTION

77
HCD-GT3D

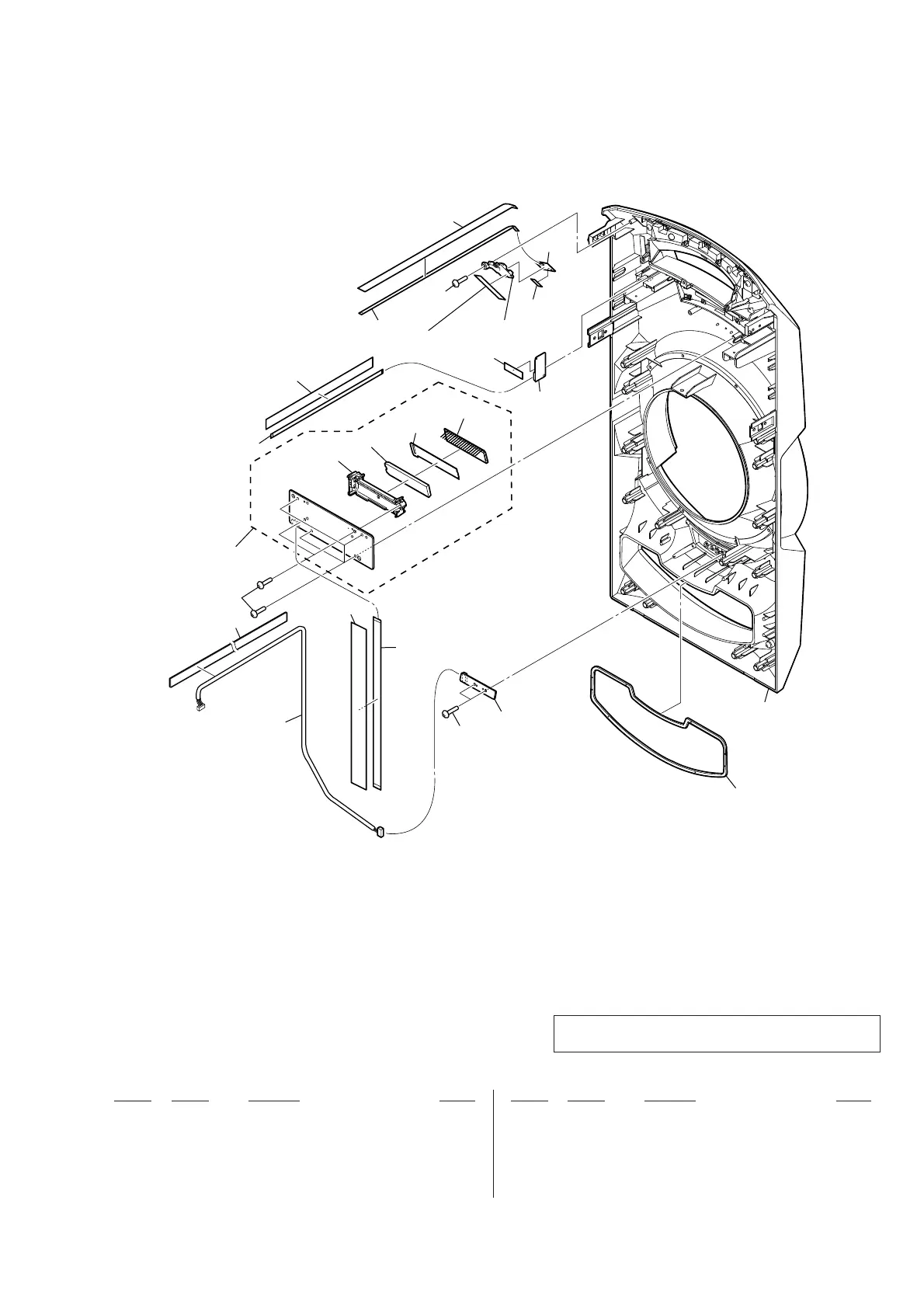

7-6. FRONT PANEL SECTION
251 1-849-013-11 WIRE (FLAT TYPE) (13 CORE)
252 1-849-014-11 WIRE (FLAT TYPE) (10 CORE)
253 1-492-699-11 BLUETOOTH MODULE
254 3-087-053-01 +BVTP2.6 (3CR)
255 4-449-063-01 CUSHION (NFC)
256 1-849-015-11 WIRE (FLAT TYPE) (6 CORE)
257 8-989-602-00 RC-S730 (WW)
258 X-2590-649-3 PANEL, FRONT (SW) ASSY
ND3000 1-812-078-11 LIQUID CRYSTAL DISPLAY
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note: If wire (fl at type) is replaced, install it after bending
it in the same form as that before replacement.
• Rear view
256
253
254
251
258
252
255
254
254
257
not supplied
not supplied
not supplied
(LCD board)
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
(SPK_HLED board)
ND3000
not supplied
not supplied
not supplied
not supplied
not supplied
Ver. 1.2
