Sony HCD-GT3D - SECTION 7 EXPLODED VIEWS; 7-8. CD MECHANISM SECTION (CDM90-DVBU204;;M)

79
HCD-GT3D

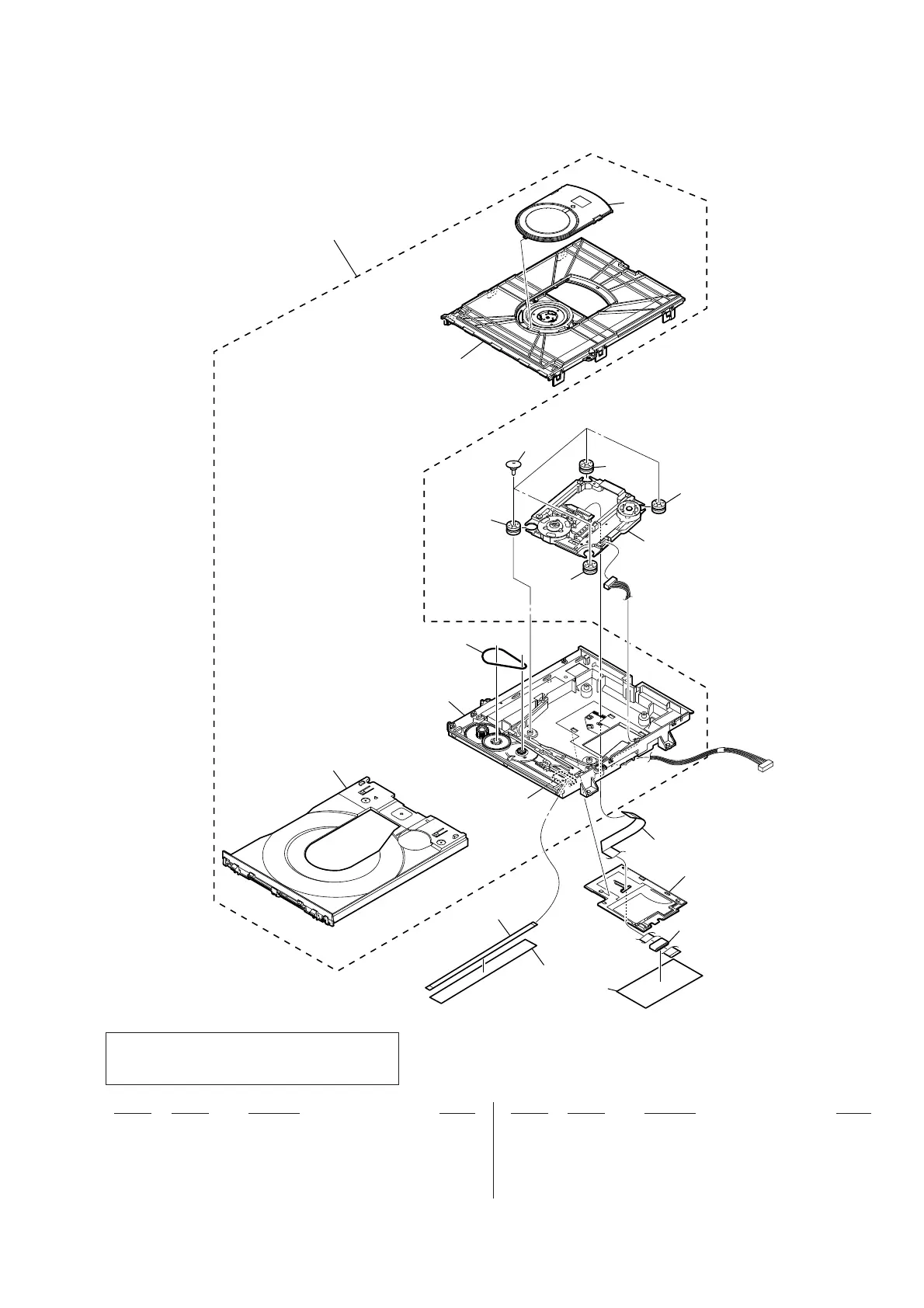

7-8. CD MECHANISM SECTION
(CDM90-DVBU204//M)
351 A-1896-391-B LOADING COMPLETE ASSY (T)
(including MS-476 board)
352 3-087-599-01 INSULATOR SCREW
353 2-634-618-21 INSULATOR
0 354 A-2046-956-A SERVICE, OPTICAL DEVICE(7G)
355 1-469-829-11 CORE, FERRITE
356 1-849-012-11 WIRE (FLAT TYPE) (24 CORE)
357 1-849-016-11 WIRE (FLAT TYPE) (5 CORE)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note : If cable, fl exible fl at and wire (fl at type) is
replaced, install it after bending it in the
same form as that before replacement.
not supplied
not
supplied
not supplied
not supplied
(MS-476 board)
351 (including MS-476 board)
not supplied
not supplied
not supplied
not supplied
not supplied
352
353
353
353
353
354
356
357
355
