HCD-GT3D
14

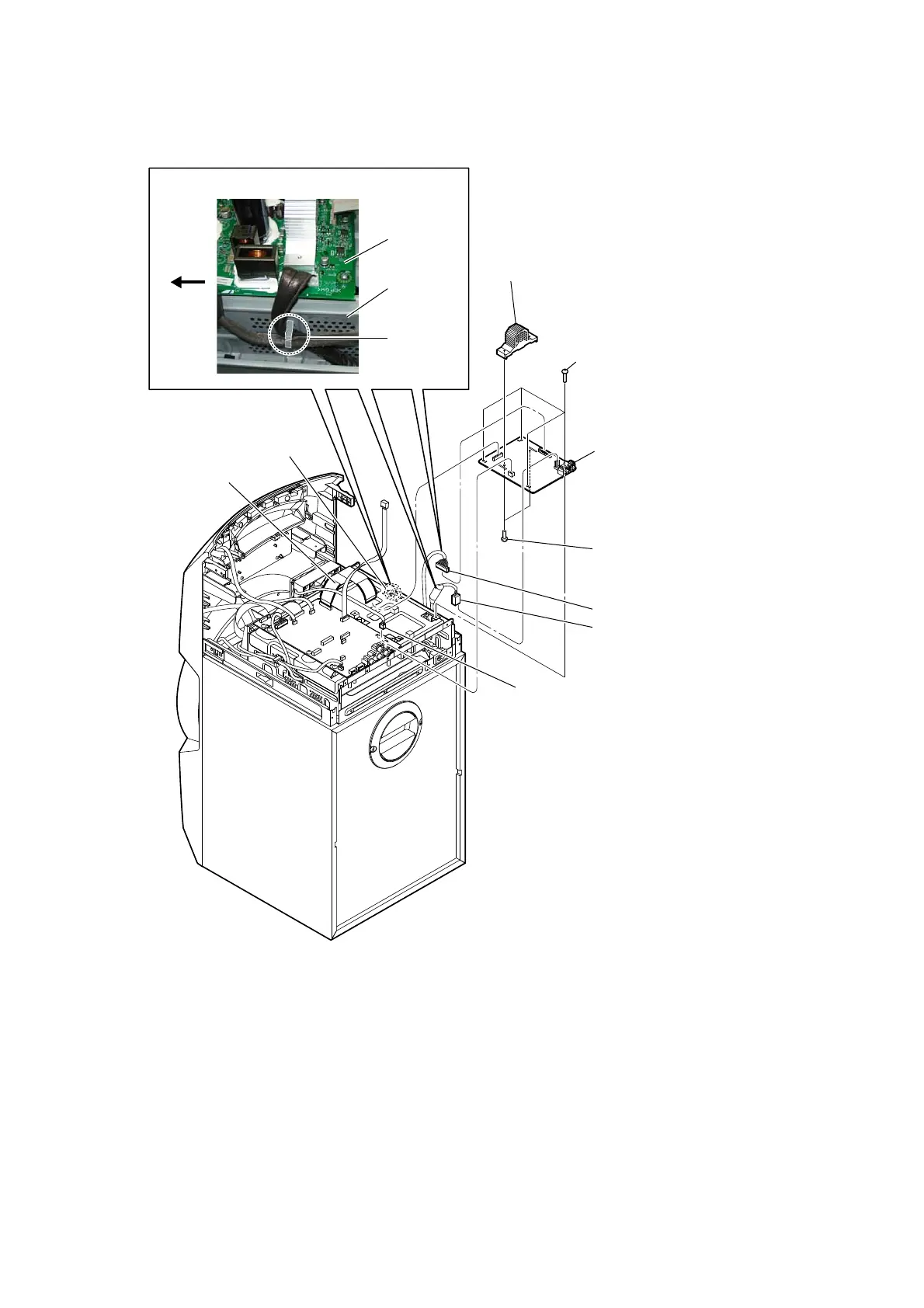

2-8. DAMP BOARD
1 Remove the wires
from holder, wire.
2 CN1007 (2P)
3 CN1005 (8P)
6 four screws (+BVTP 3 × 8)
9 DAMP board
4 CN1004 (2P)
5 wire (flat type) (19 core) (CN1001)
7 two screws (+BVTP 3 × 8)
8 heatsink
Note:
When you install the heatsink, spread the compound
referring to “NOTE OF REPLACING THE IC1001
ON THE DAMP BOARD AND THE COMPLETE
DAMP BOARD” on servicing notes (page 5).
– Rear view –
:LUHVHWWLQJ
rear side
DAMP board
chassis, sub
holder, wire
Ver. 1.2
To Next Page
