Sony HCD-GT3D - SECTION 7 EXPLODED VIEWS; 7-2. TOP PANEL SECTION

73
HCD-GT3D

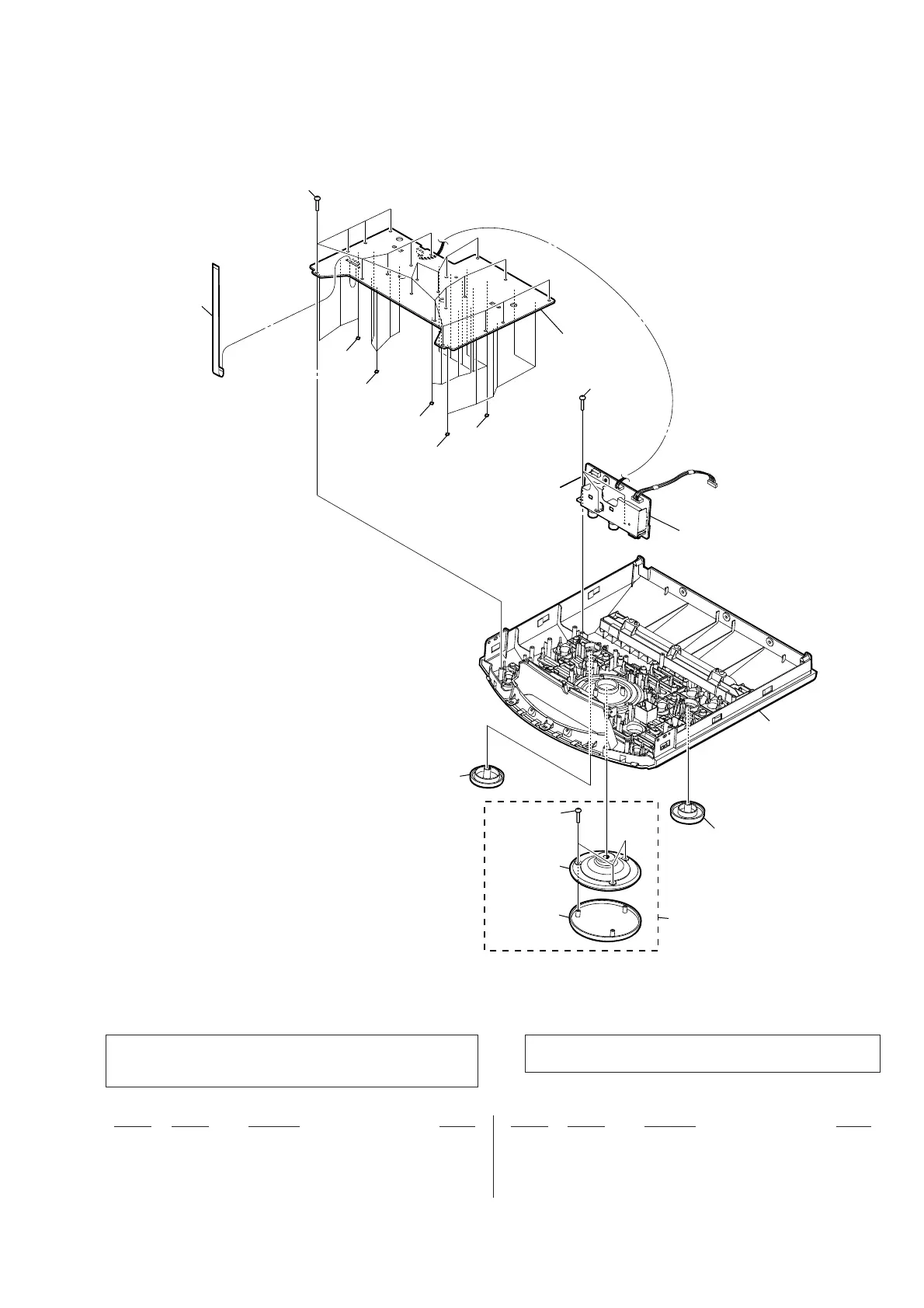

7-2. TOP PANEL SECTION
• Bottom view
51 4-549-432-01 KNOB, MIC
52 4-549-431-01 KNOB, FUNCTION
53 X-2590-651-1 KNOB, VOLUME ASSY
54 3-087-053-01 +BVTP2.6 (3CR)
55 1-849-009-11 WIRE (FLAT TYPE) (11 CORE)
56 4-543-517-02 HEMILON, 5X5X0.4
57 X-2590-580-5 PANEL, TOP ASSY
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note 2: If wire (fl at type) is replaced, install it after bending it
in the same form as that before replacement.
Note 1: When the VOLUME knob assy or MIC knob is replaced,
refer to “NOTE OF REPLACING THE VOLUME KNOB
ASSY OR MIC KNOB” on servicing notes (page 7).
54
52
53
55
56
56
56
56
56
57
54
51
54
not supplied
not supplied
(MIC board)
not supplied
(BUTTON board)
not supplied
Ver. 1.2
