Sony HCD-GT3D - SECTION 7 EXPLODED VIEWS; 7-4. MOTHERBOARD BOARD SECTION

75
HCD-GT3D

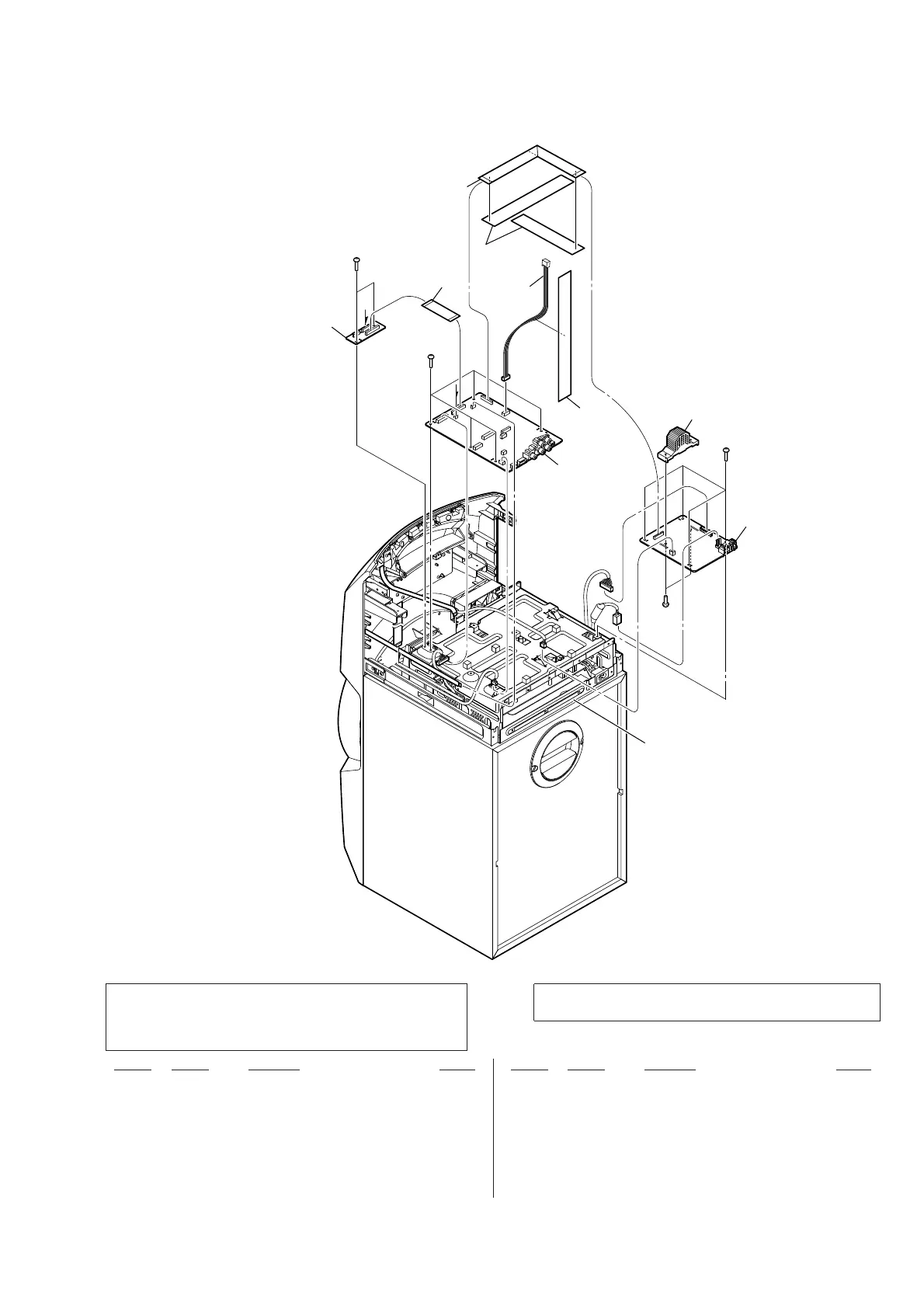

7-4. MOTHERBOARD BOARD SECTION
151 1-849-011-11 WIRE (FLAT TYPE) (19 CORE)
152 A-2061-348-A DAMP BOARD, COMPLETE
153 1-849-010-11 WIRE (FLAT TYPE) (25 CORE)
154 A-2071-965-A MOTHERBOARD BOARD, COMPLETE
(for SERVICE) (AR, LA9)
154 A-2071-984-A MOTHERBOARD BOARD, COMPLETE
(for SERVICE) (EA, E4)
154 A-2071-986-A MOTHERBOARD BOARD, COMPLETE
(for SERVICE) (AUS)
154 A-2071-987-A MOTHERBOARD BOARD, COMPLETE
(for SERVICE) (MY, TH)
154 A-2071-988-A MOTHERBOARD BOARD, COMPLETE
(for SERVICE) (RU)
#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
• Rear view
Note 1: When the complete DAMP board is replaced, refer to
“NOTE OF REPLACING THE IC1001 ON THE DAMP
BOARD AND THE COMPLETE DAMP BOARD” on
servicing notes (page 5).
Note 2: If wire (fl at type) is replaced, install it after bending it
in the same form as that before replacement.
A
B
A
B
154
151
153
152
not supplied
not supplied
not supplied
not supplied
not supplied
(SPLITTER board)
chassis section
#1
#1
#1
#1
Ver. 1.2
