Sony HCD-GT3D - SECTION 2 DISASSEMBLY; 2-9. MOTHERBOARD BOARD, SPLITTER BOARD

HCD-GT3D
15

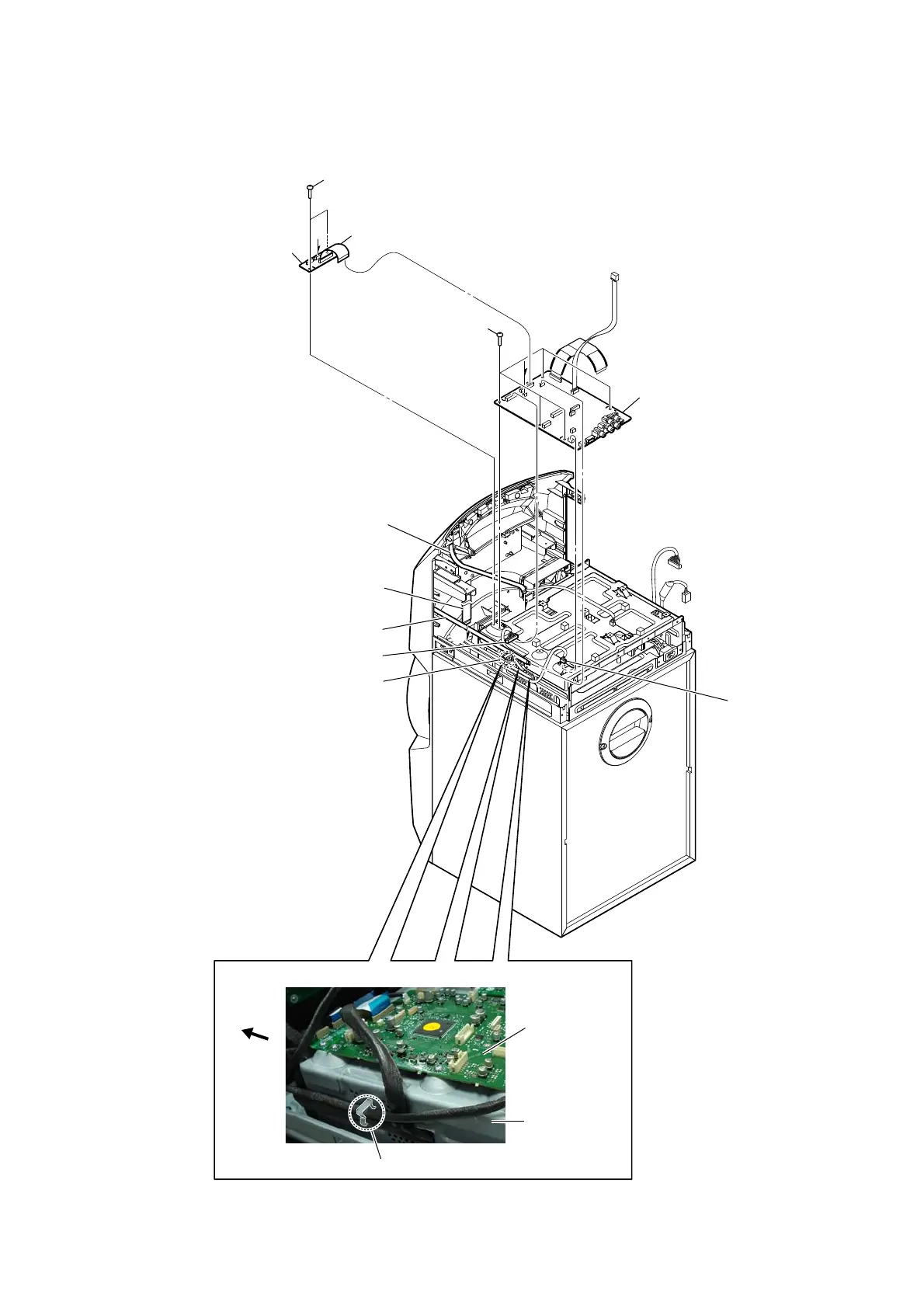

2-9. MOTHERBOARD BOARD, SPLITTER BOARD
A
B
B
A
1 Remove the wires from holder, wire.
2 CN517 (4P)
8 MOTHERBOARD board
3 CN001 (9P)
7 five screws (+BVTP 3 × 8)
qa SPLITTER board
5 wire (flat type) (25 core) (CN118)
0 two screws (+BVTP 3 × 8)
4 wire (flat type) (6 core) (CN105)
6 wire (flat type) (10 core) (CN102)
9 wire (flat type) (13 core) (CN3401)
– Rear view –
:LUHVHWWLQJ
front side
chassis, sub
holder, wire
MOTHERBOARD
board
Ver. 1.2
