Sony HCD-GT3D - SECTION 7 EXPLODED VIEWS; 7-5. CHASSIS SECTION

76
HCD-GT3D

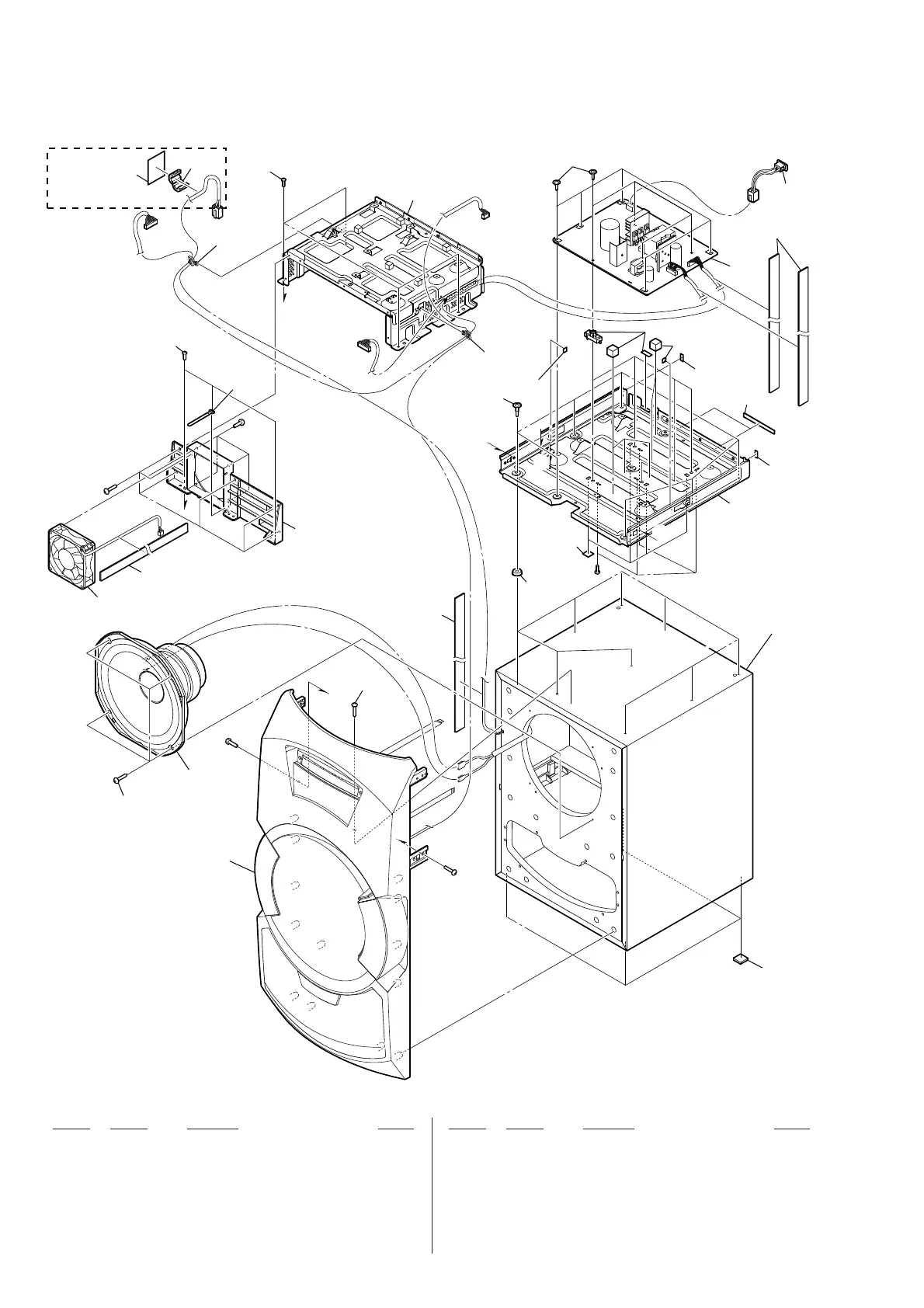

7-5. CHASSIS SECTION
201 3-077-331-21 +BV3 (3-CR)
* 202 3-703-150-11 CLAMP
0 203 1-855-006-41 FAN, DC
204 2-677-839-01 +PWH 3X8 (SUMITITE)
0 205 1-844-234-21 AC INLET
0 206 A-2061-350-A SMPS BOARD, COMPLETE
207 4-558-595-01 STEP SCREW M4
208 3-559-407-21 CUSHION, STOPPER
209 4-532-593-01 SCREW (4X13) (TR-184A)
210 4-238-407-12 SCREW (1) (4X20), +BV TAPPING
211 1-859-087-11 LOUDSPEAKER (20CM)-087-11
212 4-546-027-01 FOOT, RUBBER
* 213 1-500-082-11 CLAMP, SLEEVE FERRITE (RU, EA, MY, AUS, E4)
#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
B
A
D
C
C
B
A
D
front panel section
203
201
206
208
208
205
201
213
202
209
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
#1
#1
#1
#1
#1
207
not supplied
not supplied
not supplied
204
210
211
212
not supplied
(RU, EA, MY, AUS, E4)
Ver. 1.2
