Sony HCD-GT3D - SECTION 2 DISASSEMBLY; 2-11. SMPS BOARD

HCD-GT3D
17

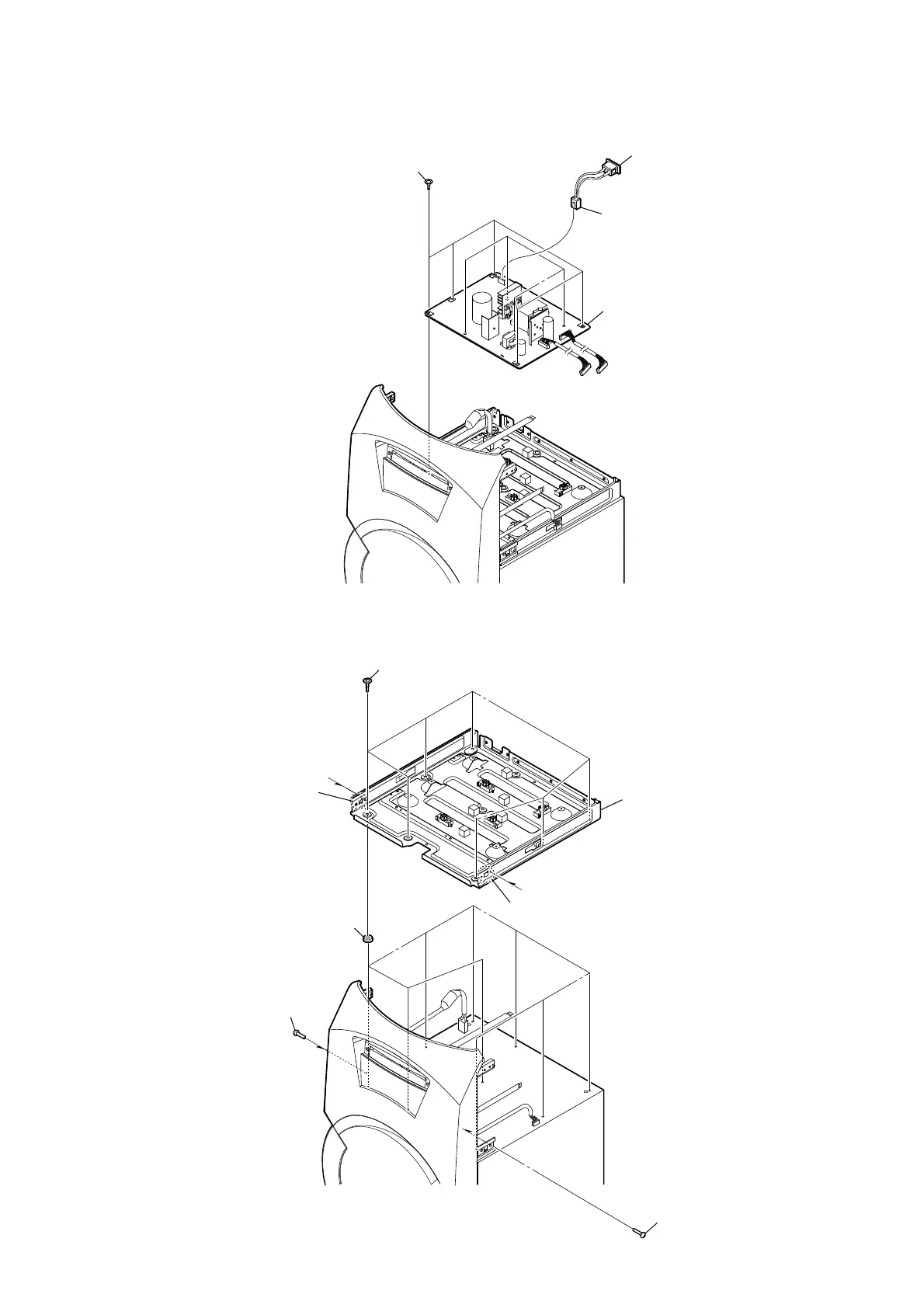

2-11. SMPS BOARD
1 CN901 (2P)
2 AC inlet
4 SMPS board
3 nine screws (+PWH 3 × 8 (SUMITITE))
B
B
A
A
1 one screw (+BVTP 3 × 8)
1 one screw (+BVTP 3 × 8)
2 seven step screws (M4)
4 nine damper chassis
5 chassis
3 one claw
3 one claw
2-12. CHASSIS
