Sony HCD-GT3D - SECTION 7 EXPLODED VIEWS; 7-3. LOADING PANEL SECTION

74
HCD-GT3D

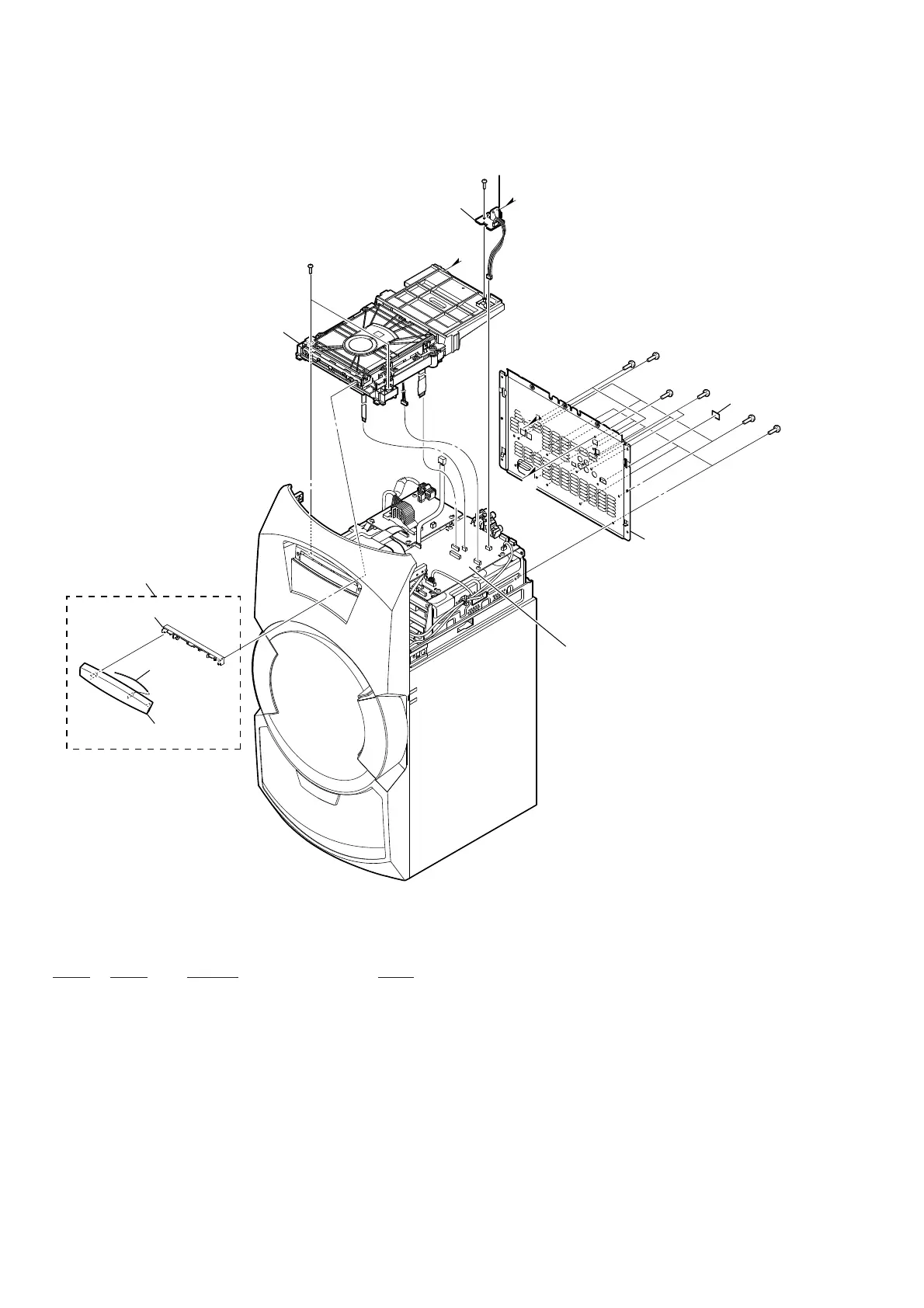

7-3. LOADING PANEL SECTION
101 X-2590-650-4 PANEL, LOADING ASSY
102 4-295-431-01 SPRING, LOADING
#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark
A
B
101
not supplied
not supplied
not supplied
(OPTICAL board)
102
not supplied
MOTHERBOARD board section
CDM section
#1
#1
#1
#1
#1
#1
#1
#1
not supplied
B
A
Ver. 1.2
