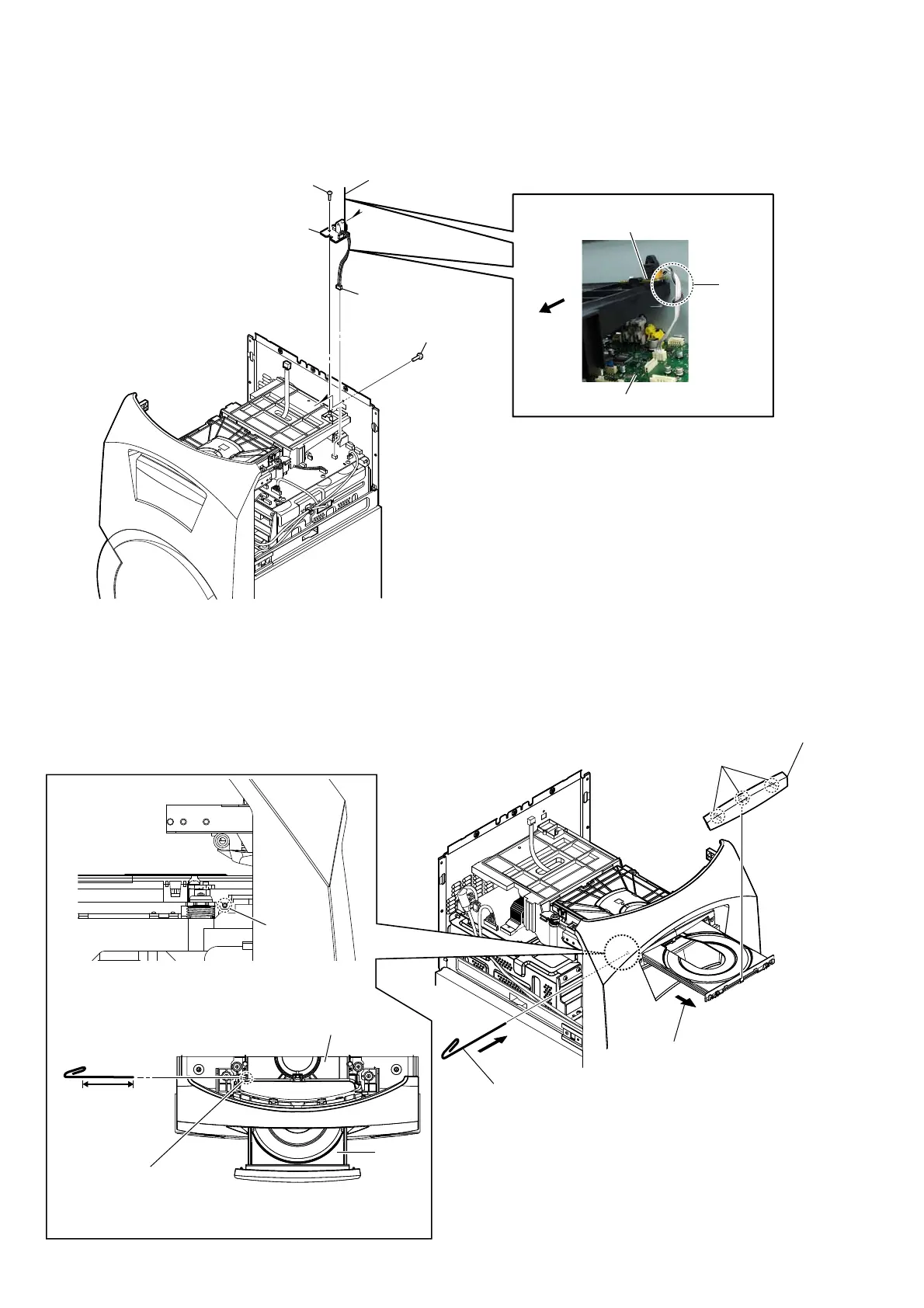

2-5. LOADING PANEL ASSY
2-4. OPTICAL BOARD
– Top view –
hole
– Left view –
8 cm or more
tray
CD/DVD mechanism deck
Insert the clip etc. processed to the
length of 8 cm or more in the hole
on the side of the chassis and push.
Note: Push after it inserts it
in this hole well.
4 panel, loading assy
1 Insert the clip etc.
2 Draw out the tray.
3 three claws
A
2 CN602 (3P)
3 one screw
(+BVTP 3 × 8)
4 one screw (+BVTP 3 × 8)
5 OPTICAL board
A
1 Remove the wire from pin, lead.
:LUHVHWWLQJ
front side
MOTHERBOARD board
OPTICAL board
pin, lead
