2-3-2. Power Supply
1. Power Supply Specifications
A switching regulator is used in the power supply unit of
the unit.
n
Be sure to use the unit within the following power-supply
voltage range.
Power voltage: 100 to 240 VAC (nominal voltage)
Power frequency: 50 or 60 Hz
Power consumption: 235 W max. (including options)
Inrush current: 50 A at 100 VAC
n
The AC power supply requires capacity including inrush
current.
If the AC power capacity is insufficient, the circuit breaker
of the AC power supply on the supply side may trip or the
unit may malfunction.
2. Recommended Power Cord
This unit does not come with a power cord.
To get a power cord, please contact your local Sony Sales
Office/Service Center.
w
. Use the approved Power Cord (3-core mains lead)/Appli-
ance Connector/Plug with earthing-contacts that con-
forms to the safety regulations of each country if appli-
cable.
. Use the Power Cord (3-core mains lead)/Appliance
Connector/Plug conforming to the proper ratings (Volt-
age, Ampere).
If you have questions on the use of the above Power Cord/
Appliance Connector/Plug, please contact your local Sony
Sales Office/Service Center.
w
. Never use any damaged power cord.
2-3-3. Rack Mounting
This process is not necessary if you do not mount this unit
into a rack.
This unit can be mounted to a 19-inch rack conforming to
the ANSI/EIA-310-D standard, which meets the following
conditions.
1. Hole pitch: Universal pitch
2. Mounting hole: M5 screw hole or square hole (□9.2 to
□10 mm)
3. Holes of the front and rear mount angles meet the
conditions 1 and 2 above.
4. The inner distance between these mount angles is
within a range of 600 to 750 mm.
5. A space of at least 10 mm is provided from the inner
end of each mount angle to the right and left sides
outward.

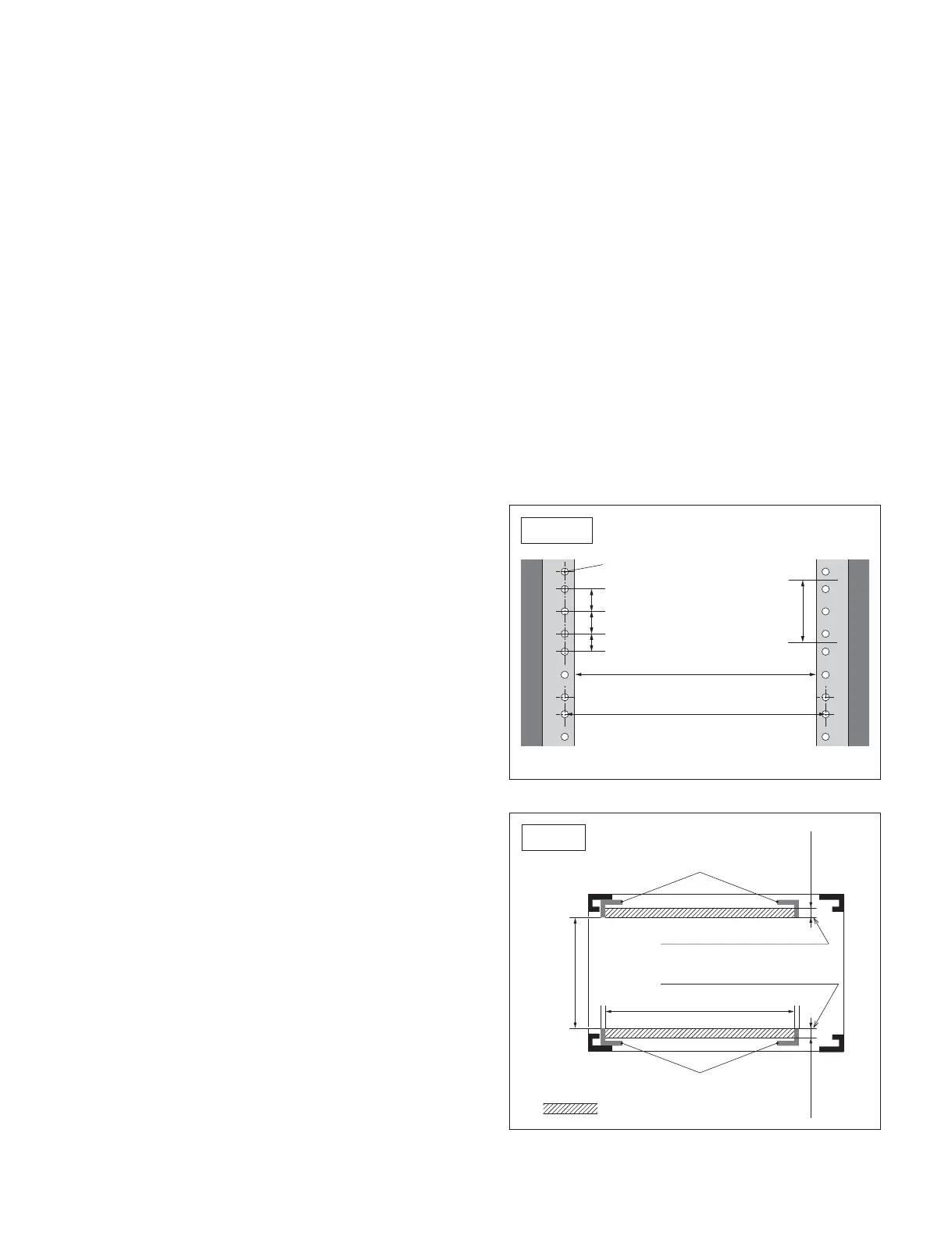

Rack unit
44.45 mm
Inside dimension
450 mm min.
Mounting dimension
465 mm
±
1.6
Mounting hole
0RUVTXDUHKROHƑWRƑPP
15.875 mm
15.875 mm
This illustration is an example of M5 screw hole.
PP
Front View
Inner distance 600 to 750 mm
Inner end of mount angle
Inner end of mount angle
Top View
Inside dimension
450 mm min.
10 mm or
greater
10 mm or
greater
Mount angles
Mount angles
Clearance
Front
Rear
To Next Page
