ICP-X7000
1-66 (E)

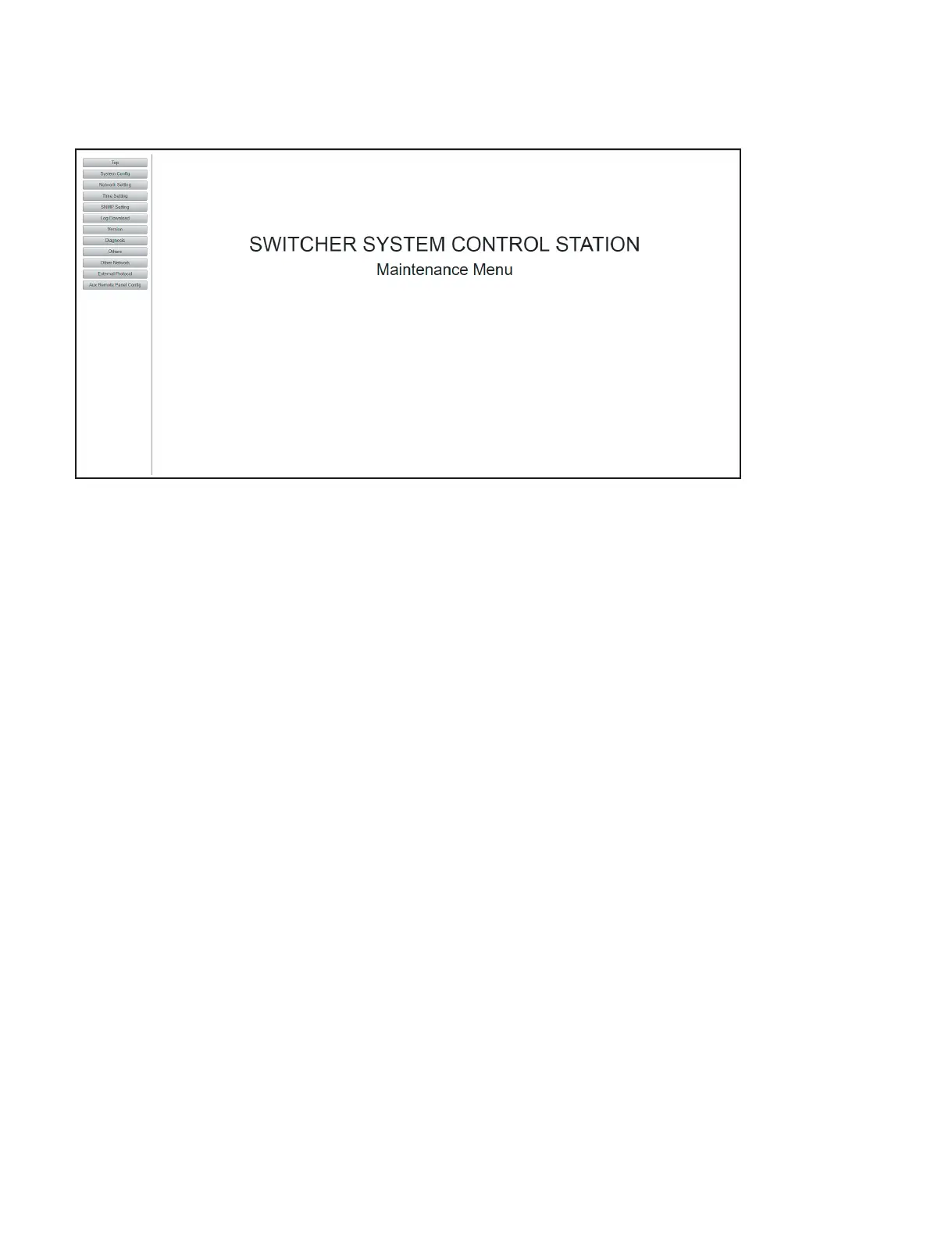

The Maintenance Menu appears.
1-17-1. Panel Configuration
The ICP-X7000 system can assign numbers to each panel row (including MKS-X7075) and set them for
PWS-100SC1/PWS-110SC1. Be sure to set numbers in the following cases.
. When starting a system for the first time:
Be sure to set numbers for systems shipped before April 2016.
. When assigning numbers according to the panel layout
Numbers are assigned for systems shipped in April 2016 and later, but they may not correspond to the
actual panel row layout. In that case, make this setting again.
. When panel row or MKS-X7075 is newly added or transferred from another system
Row numbers are managed by PWS-100SC1/PWS-110SC1 of each system. When newly adding rows,
make this setting.
Overview of setting
This setting is available for PWS-100SC1/PWS-110SC1 to be connected to the panel system network.
To Next Page
