TALLY/GPI IN 1-34
D-sub 37pin, Female, +3.3 V TTL input
Pin No. Signal Name Function
1 GPI IN1 General-purpose input
2 GPI IN3
3 GPI IN5
4 GPI IN7
5 GPI IN9
6 GPI IN11
7 GPI IN13
8 GPI IN15
9 GPI IN17
10 GPI IN19
11 GPI IN21
12 GPI IN23
13 GPI IN25
14 GPI IN27
15 GPI IN29
16 GPI IN31
17 GPI IN33
*1
18 GND GND
19 GND
20 GPI IN2 General-purpose input
21 GPI IN4
22 GPI IN6
23 GPI IN8
24 GPI IN10
25 GPI IN12
26 GPI IN14
27 GPI IN16
28 GPI IN18
29 GPI IN20
30 GPI IN22
31 GPI IN24
32 GPI IN26
33 GPI IN28
34 GPI IN30
35 GPI IN32
36 GPI IN34
*1
37 GND GND
*1: This pin can be used as a +12 V input pin by setting the switch S1601 on
the CA-90 board to ON.
(Refer to “CA-90 board” in “1-14. Description of On-board Switches and
LEDs”.)
MVS
UTIL
1000BASE-T
RJ-45 (8pin)
Pin No. Signal Name Function
1 TRX1+ Transmitted/Received data (+)
2 TRX1_ Transmitted/Received data (_)
3 TRX2+ Transmitted/Received data (+)
4 TRX3+ Transmitted/Received data (+)
5 TRX3_ Transmitted/Received data (_)
6 TRX2_ Transmitted/Received data (_)
7 TRX4+ Transmitted/Received data (+)
8 TRX4_ Transmitted/Received data (_)
1-13-2. MKS-X7700
REMOTE 1 to 4
RS-422A (D-sub 9-pin, Female)
<CONTROLLER>to External Device
SERIAL TALLY1, 2
RS-422A (D-sub 9-pin, Female)
<CONTROLLER>to Tally Interface Unit
Pin No. Signal Name Function
1 FG Frame ground
2 RX_ Received data (_)
3 TX+ Transmitted data (+)
4 GND Common ground
5 _ No Connection
6 GND Common ground
7 RX+ Received data (+)
8 TX_ Transmitted data (_)
9 FG Frame ground
1
20
19
37

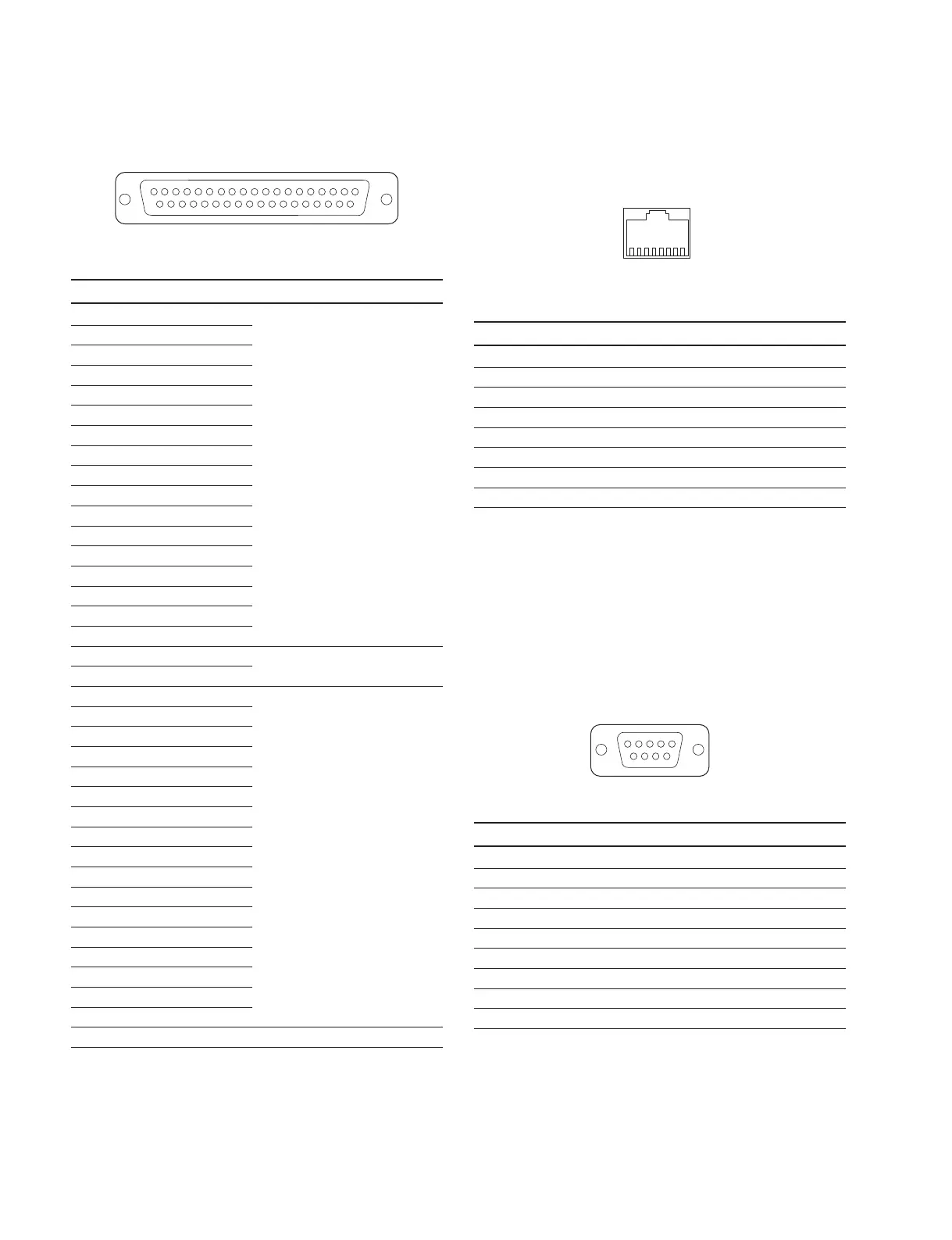

External View
