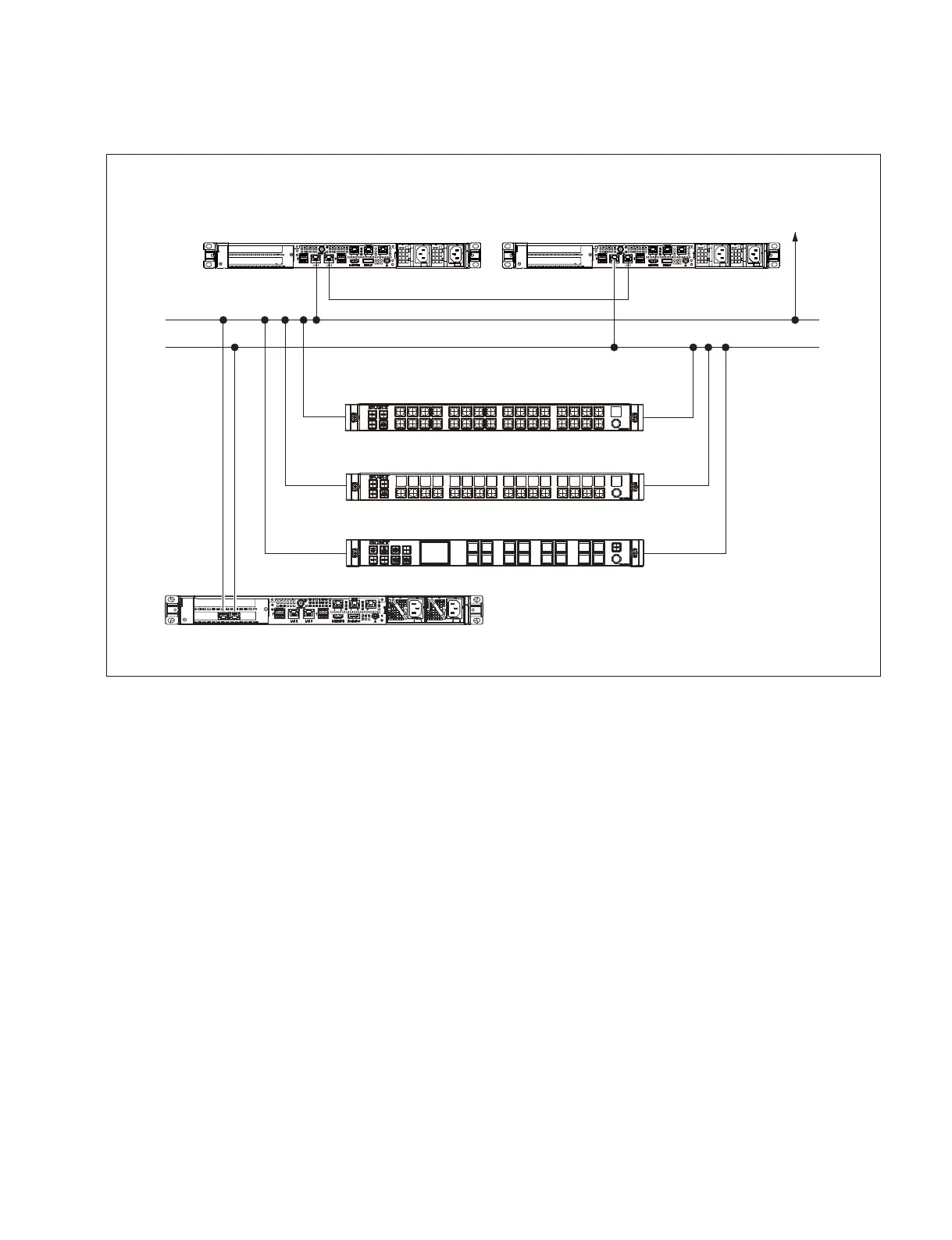

1-15-3. Example of Connection to NS-BUS
t
. For details of remote controller connection using the NS-BUS and settings, see the MKS-R3210/R1620/R1630 installa-
tion manual.
. For connection to the NS-BUS, a network card for expansion is required.
. For IP address settings related to A system and B system, refer to “1-17-4. Settings for External Protocol.”
2NAL2NAL1NALLAN1
LAN2
LAN1
LAN1
LAN1
S1 S2
LAN2
LAN2
IP Live System Manger Station
PWS-110NM1 or PWS-110RS1
(System Controller)
IP Live System Manger Station
<A system>
A system
<B system>
PWS-110NM1 or PWS-110RS1
(System Controller)
32 Button Remote Control Panel
Other
Controller
(Ember+)
MKS-R3210
16 Button LCD Remote Control Panel
MKS-R1620
Universal 16 LCD Remote Control Panel
MKS-R1630
B system
Switcher Control Station
PWS-100SC1/PWS-110SC1
