1-15. System Connection
Configure the system connection referring to the connection example as shown below.

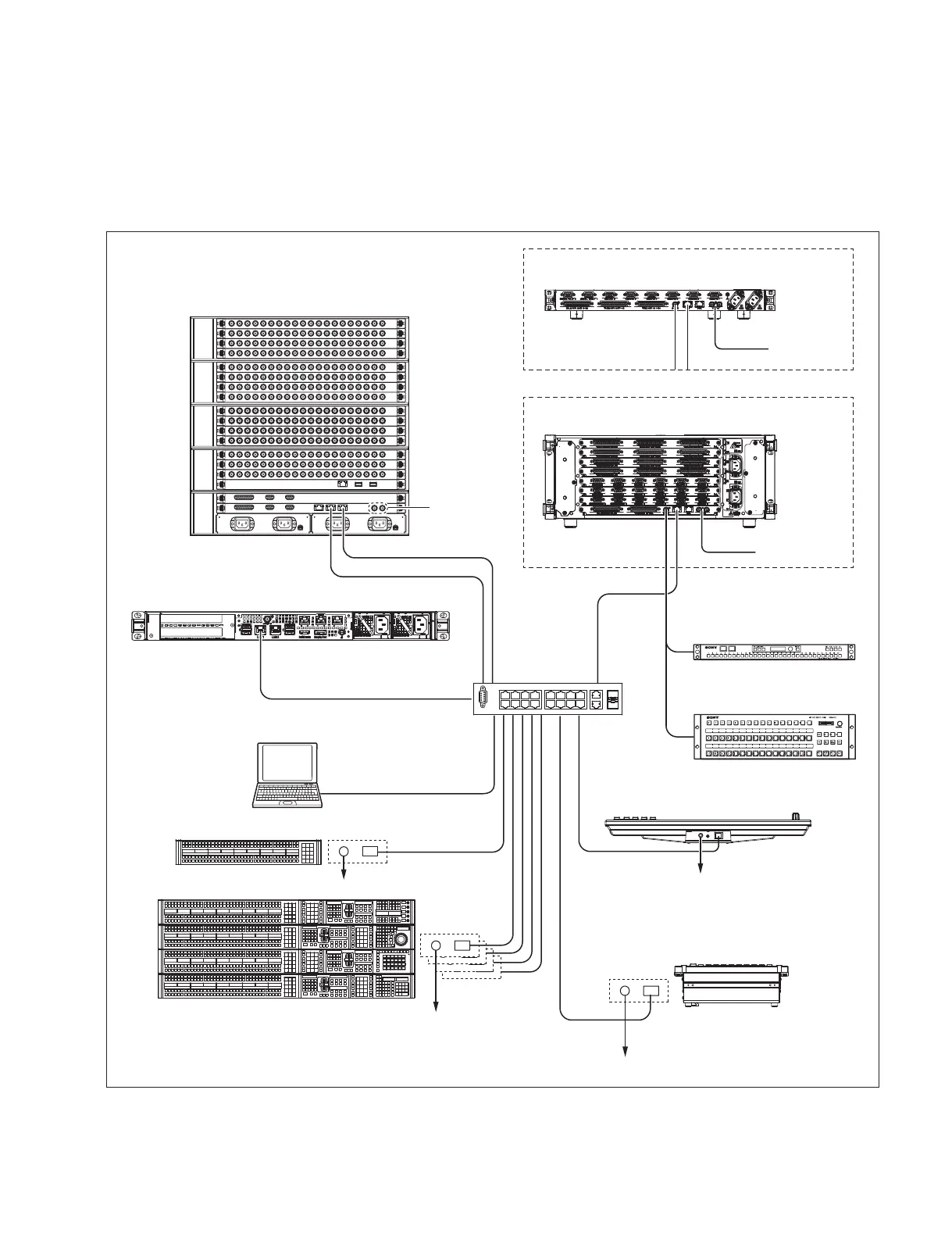

1-15-1. Example of Connection to MVS-8000X/7000X
*1: PC is only required when performing the “1-17. Maintenance Menu”.
Reference video
signal
Reference video
signal
DC IN LAN
DC IN LAN
DC IN LAN
per row
LAN1
NETWORK A
NETWORK B
MVS
S-BUS REF IN
LAN
Reference video
signal
MVS
S-BUS REF IN
To AC adaptor
To AC adaptor
To AC adaptor
To AC adaptor
Integrated Control Panel
ICP-X7000
System Interface Unit
MKS-X7700
System Interface Unit
MKS-X2700
PoE+
Ethernet switch
Menu Panel
MKS-X7011
AUX Bus Remote Panel
MKS-8080
AUX Bus Remote Panel
MKS-8082
Extension Adaptor
MKS-X7075
Multiformat Switcher Processor
MVS-8000X/7000X
Switcher Control Station
PWS-100SC1/PWS-110SC1
PC
*1
