ICP-X7000
1-22 (E)
1-7-2. Removing and Installing Cap/Diffusion
Plate of Switch with Switch Guard

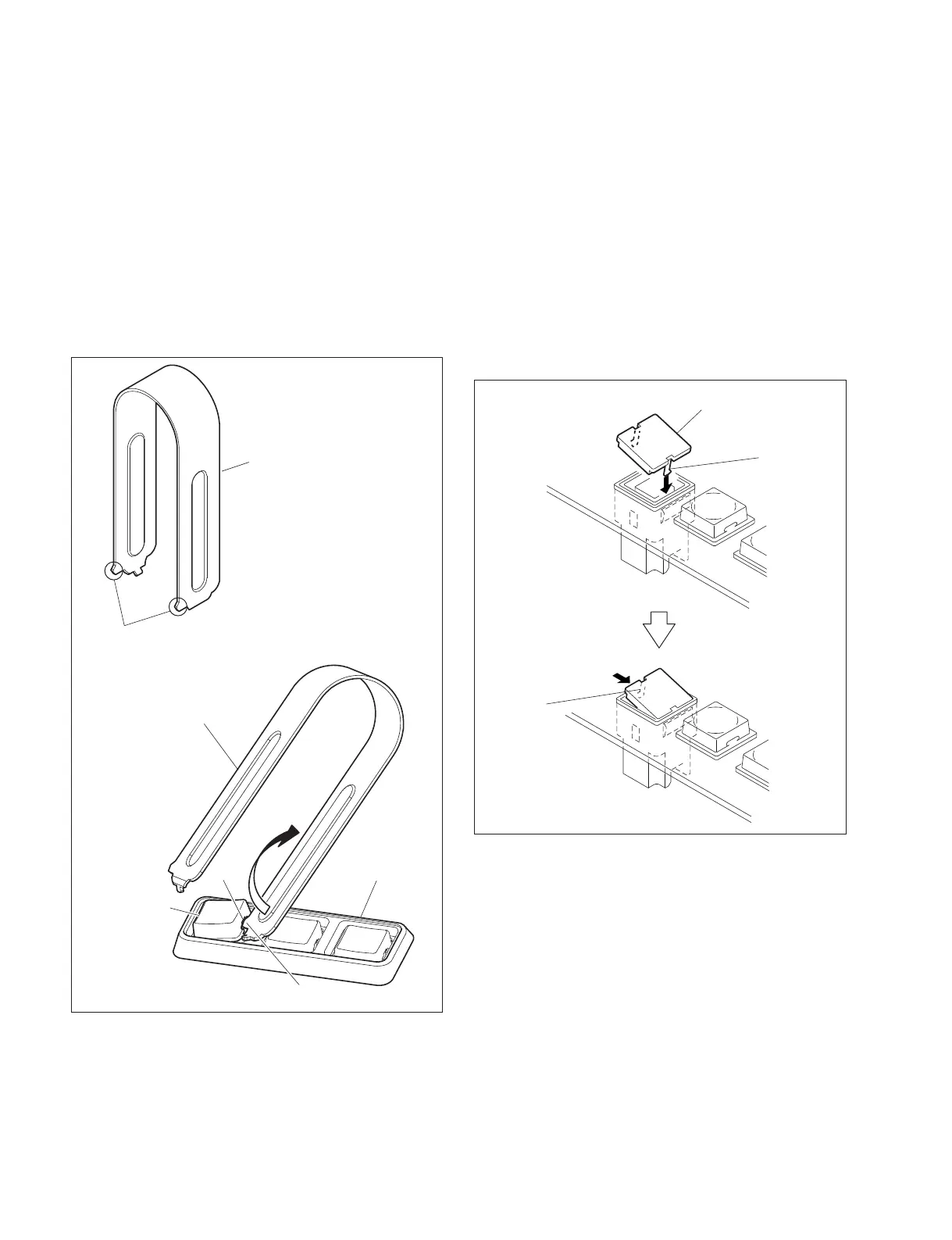

1. Insert the projection of the supplied Cap pull tool into
the groove of the cap/diffusion plate.
2. Turn the Cap pull tool in the direction of arrow and lift
one side of the cap/diffusion plate to remove it.
n
Carefully insert the projections of the tool into the groove
of the cap/diffusion plate so as not to damage the switch
guard by the projections.
Groove
Projection
Projections
Cap/diffusion
plate
Switch guard
Cap pull tool
Cap pull tool
1-8. Removing and Installing Switch
Cover
The supplied switch cover can be installed at the location
from which the cap/diffusion plate was removed.
1. Remove the cap/diffusion plate according to “1-7.
Removing and Installing Cap/Diffusion Plate.”
2. Insert one hook on the switch cover paying attention to
the orientation of the groove.
3. After the hook has been fully inserted, push the other
hook in the arrow direction and insert it.
4. Push switch cover until a snap is heard.
Hook
Switch cover
Hook
To Next Page
