Sony ICP-X7000

ICP-X7000
1-23 (E)
t

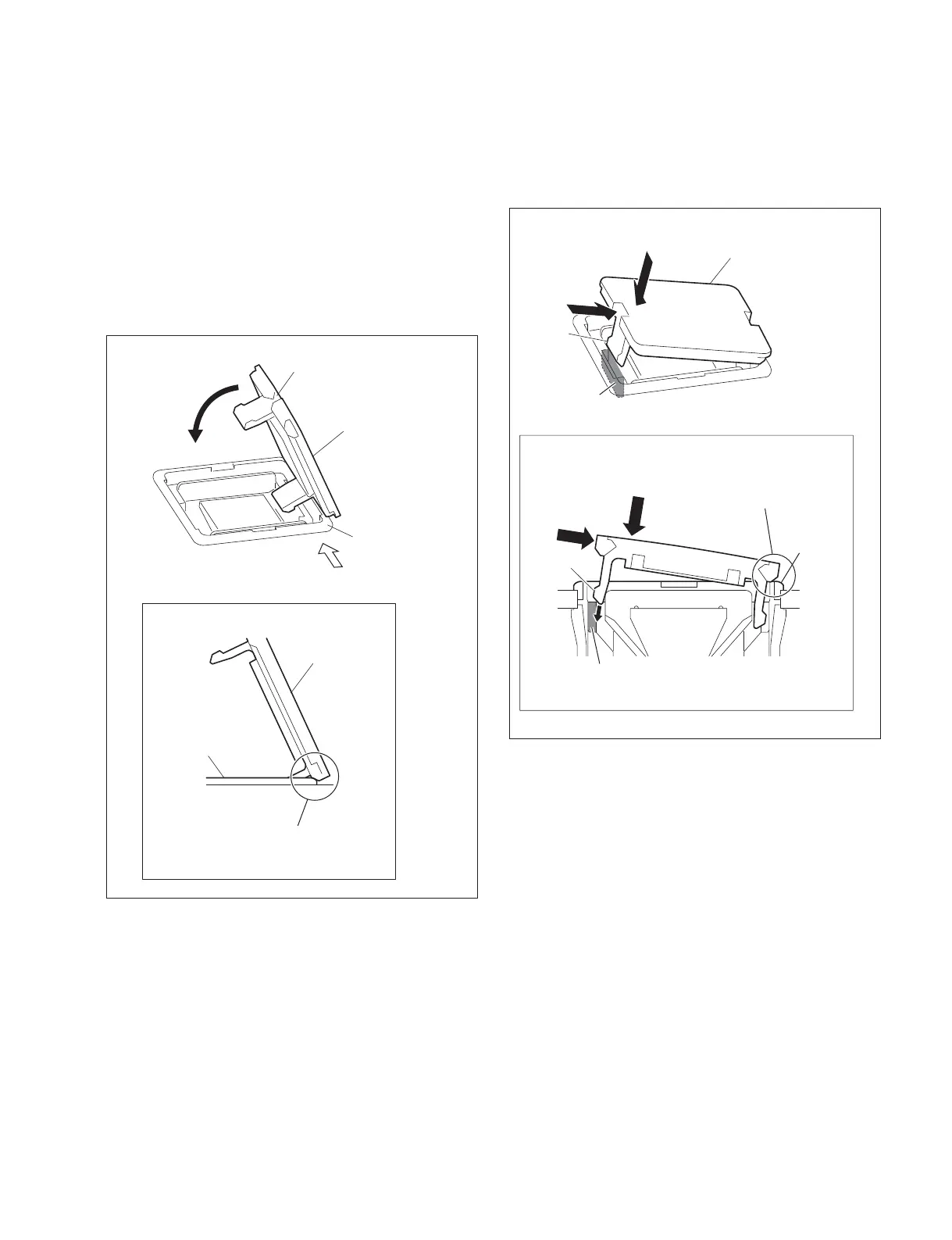

If the switch cover cannot be installed easily by using steps
2 to 4, perform the following procedure.
(1) Place the switch cover at the position shown in the
figure paying attention to the orientation of the groove.
(The switch cover can be placed at the opposite side.)
(2) Turn the switch cover in the direction of arrow A with
its area on the flange as a rotating axis.
The switch cover must be in contact with the flange of
the switch.
Switch cover
Flange
Flange
Switch cover
The switch cover must be in contact
with the flange of the switch.
Arrow view
Arrow view
A
Groove
(3) While pressing the switch cover from two directions of
arrow B and arrow C, insert the tip of the switch cover
hook into inside the area D in the switch.
(4) Push the switch cover until a snap is heard.
Switch cover
Flange
The switch cover must be in
contact with the flange of
the switch.
Cross-section view
B
B
C
C
D
D
Hook
Hook
