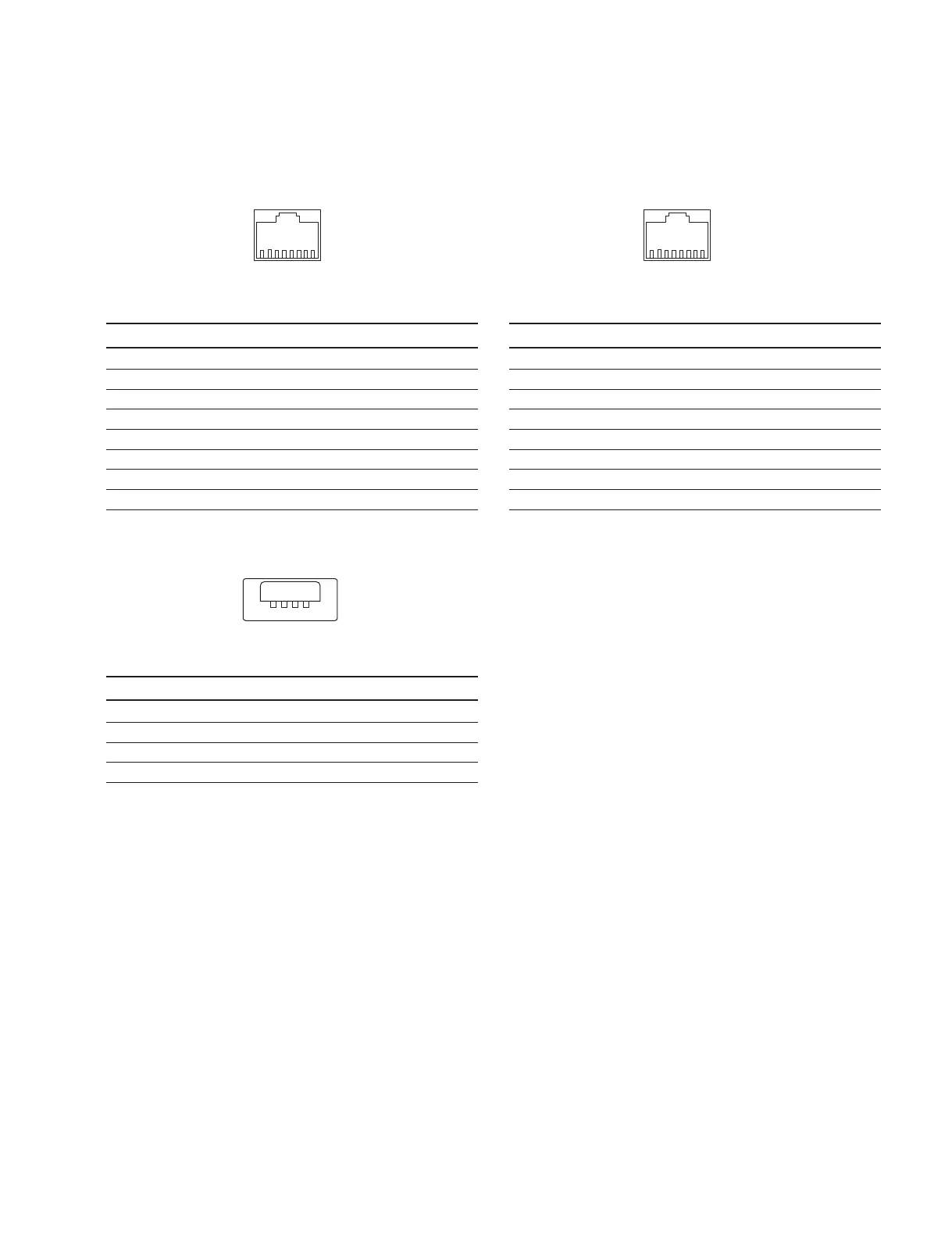

1-13-5. MKS-X7011
LAN
1000BASE-T, PoE+, RJ-45 (8pin)
Pin No. Signal Name Function
1 TRX1+ Transmitted/Received data (+)
2 TRX1_ Transmitted/Received data (_)
3 TRX2+ Transmitted/Received data (+)
4 TRX3+ Transmitted/Received data (+)
5 TRX3_ Transmitted/Received data (_)
6 TRX2_ Transmitted/Received data (_)
7 TRX4+ Transmitted/Received data (+)
8 TRX4_ Transmitted/Received data (_)
DEVICE
USB (Type A)
Pin No. Signal Name Function
1 +5 V USB Vcc
2 D_ USB DATA_
3 D+ USB DATA+
4 GND Ground
1-13-6. ICP-X7000, MKS-X7075
LAN
1000BASE-T, PoE+, RJ-45 (8pin)
Pin No. Signal Name Function
1 TRX1+ Transmitted/Received data (+)
2 TRX1_ Transmitted/Received data (_)
3 TRX2+ Transmitted/Received data (+)
4 TRX3+ Transmitted/Received data (+)
5 TRX3_ Transmitted/Received data (_)
6 TRX2_ Transmitted/Received data (_)
7 TRX4+ Transmitted/Received data (+)
8 TRX4_ Transmitted/Received data (_)

External View
18
1 4
External View

External View
18
