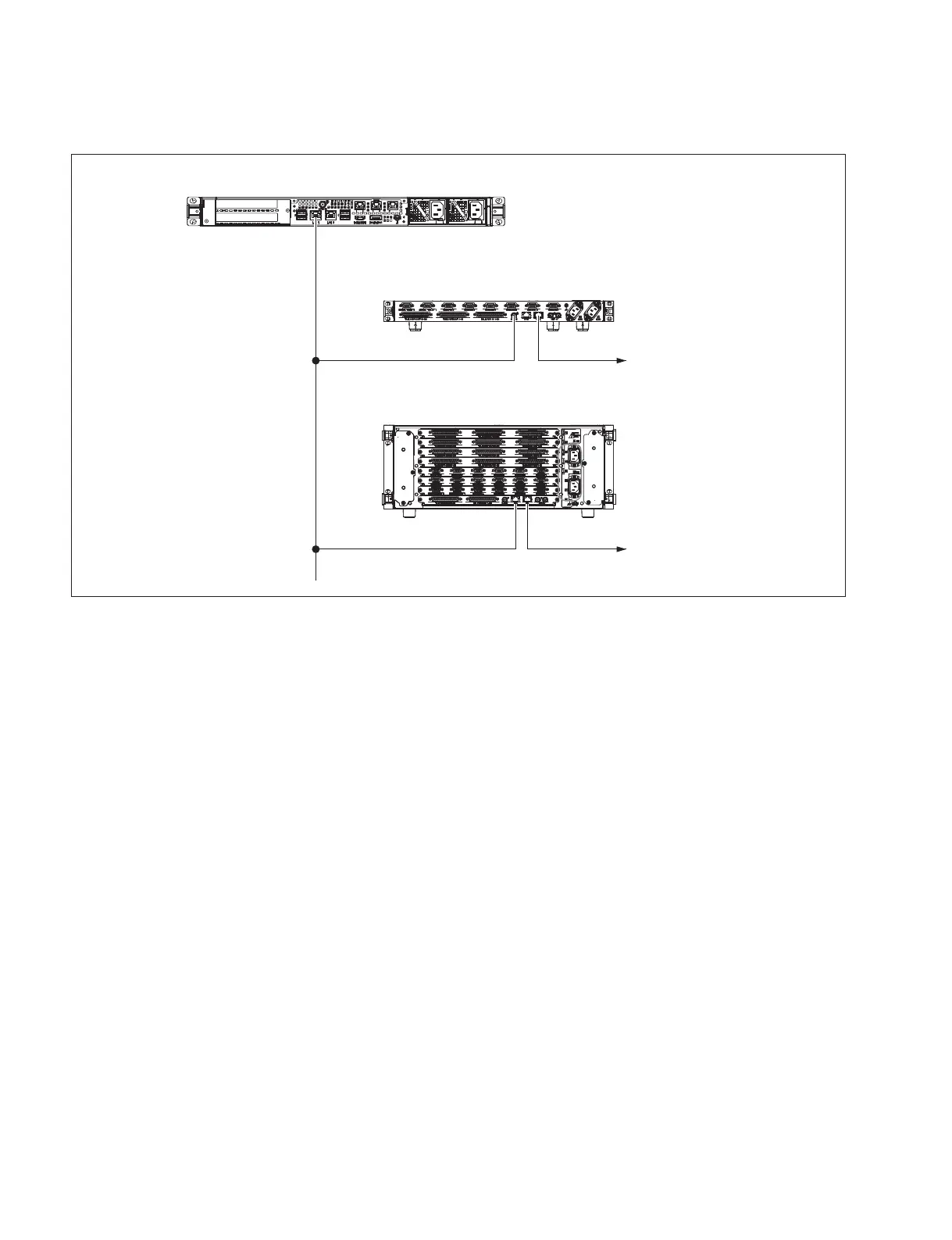

1-15-4. Example of Connection to External Devices through AMP over IP
t
. Up to two system interface units (SIU1 and SIU2) can be connected to external devices.
. Set the unit ID of SIU1 and SIU2 respectively according to “1-14. Description of On-board Switches and LEDs.”
MVS
LAN1
UTIL
System Interface Unit
MKS-X2700
Switcher Control Station
PWS-100SC1/PWS-110SC1
or MKS-X7700
External Device
(AMP over IP)
MVS UTIL
External Device
(AMP over IP)
<SIU1>
System Interface Unit
MKS-X7700
or MKS-X2700
<SIU2>
