SET UP and CUSTOMIZE parameters and selected
video cord (not supplied) to connect to the
receiver.
#hen wing the S-video jacks instead of the video
a&s, yonr monitor must also be connected via an
Gvidco jack. S-video signals are on a separate bus
iom the video signals and will not be output through
he video jacks.
If you m&c COMPONENT VIDEO connections,
nothing is displayed on the on-screen display
(STR-DE985 only).
On this receiver, the component video signals are
not compatible with S-video signals or video
sifznals.

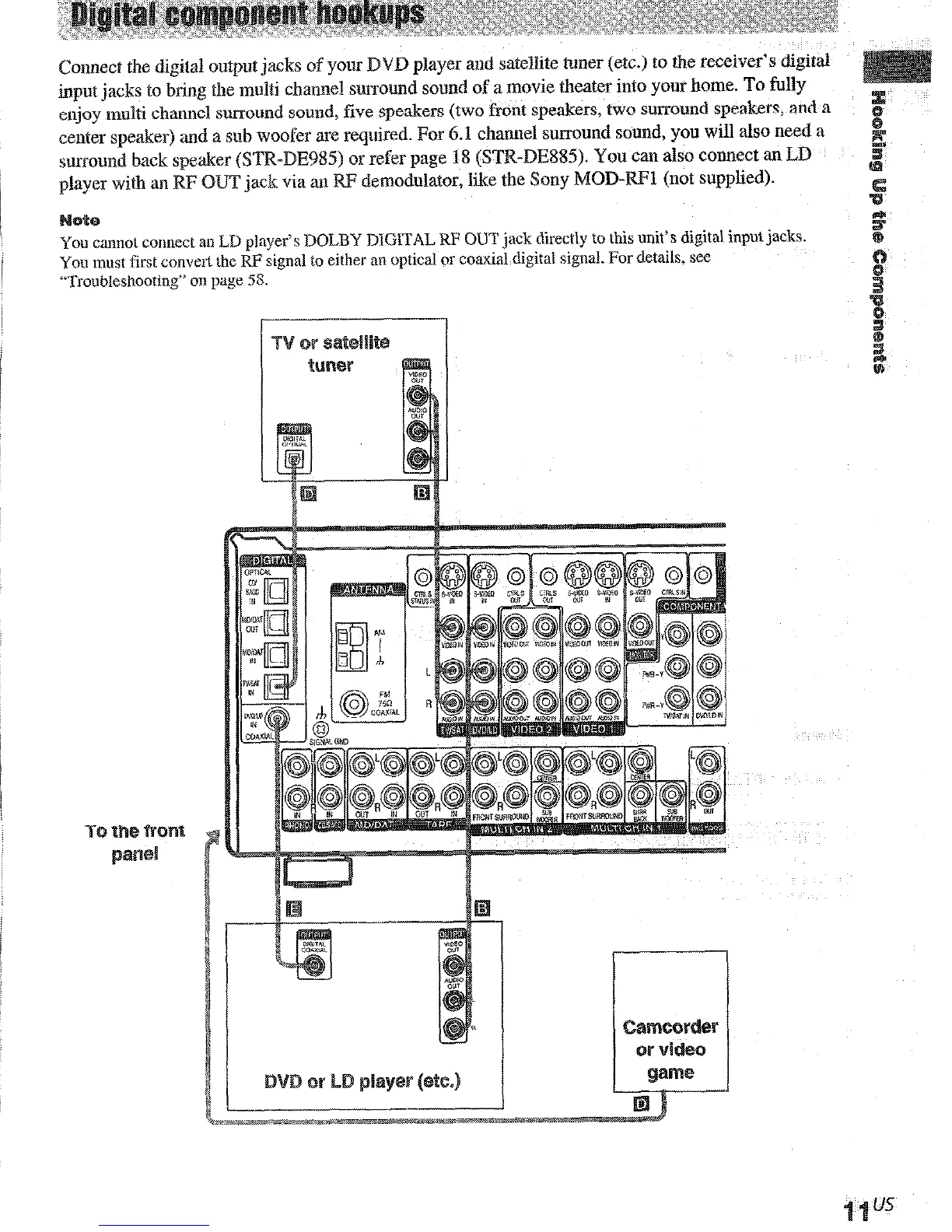

Connect the digital output jacks of your DVB player and sateBite tuner (etc.) to the receiver’s digit&
input jacks to bring the multi channel surrotmd sound of a movie
theater into your home.
To fully
enjoy multi
charmet sLl~ound sound, five speakers (two front speakers, two surround speakers, and a
center speaker) and a sub woofer are required. For 6.1 channel surround sound, you will also need a
s~u~ound
back speaker (S~~~~E~~5) or refer page 18 (S~~-D~~$5). You can also connect an LD
player with an RF OUT jack via an RF demodulator, like the Sony MOD-RF1 (not supplied).
You cannot connect an LD plaveis DOLBY DlClTAL RF OUT jack directly to this unit’s digital input jacks.
Yoo must
first convert the RF signal to either an optical or coaxial digital signal. For details, see
‘“rroubleshooting” on page 5X.
