Performance Verification

VX4792 User Manual

F-17

VX4792

Oscilloscope

WAVEFORM

OUTPUT

Ch 1 Input

Function

Generator

Output

TRIGGER

INPUT

Ch 2 Input

Precision

Termination

Dual Input

Adapter

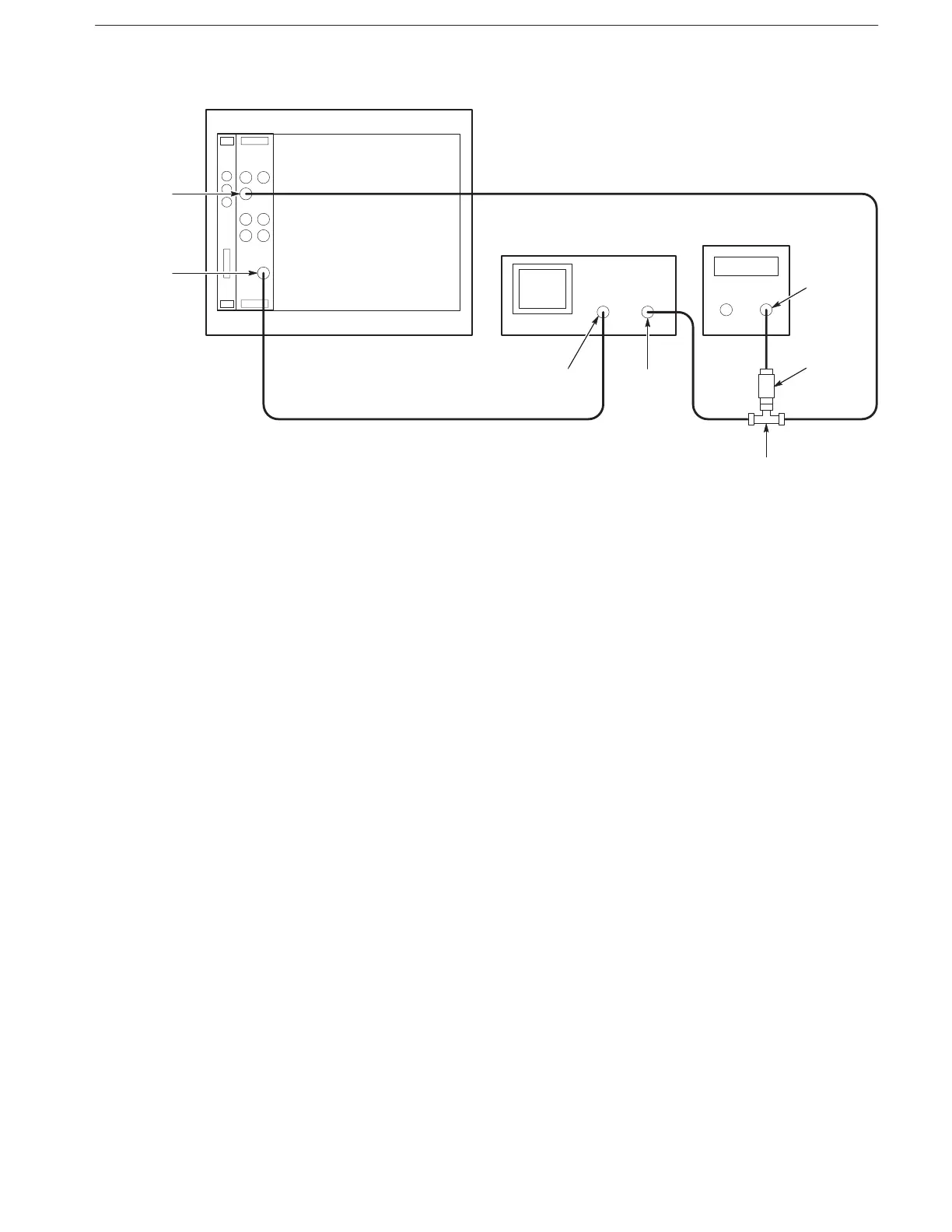

Figure F-6: Gated Mode Initial Test Setup

c. Set oscilloscope controls:

Vertical CH1, CH2

CH1, CH2 coupling DC

CH1 scale 0.5 V/div

CH2 scale 1 V/div

CH1 input impedance 50 W

CH2 input impedance 1 MW

Horizontal

Sweep 20 ms/div

Trigger

Source CH2

Coupling DC

Slope Positive

Level 500 mV

Mode Auto

d. Set function generator controls:

Function Square

Mode Continuous

Parameter

Frequency 10 kHz

Amplitude 4.0 V

Offset 2.0 V

Output Off
