Sony XVS-G1

157

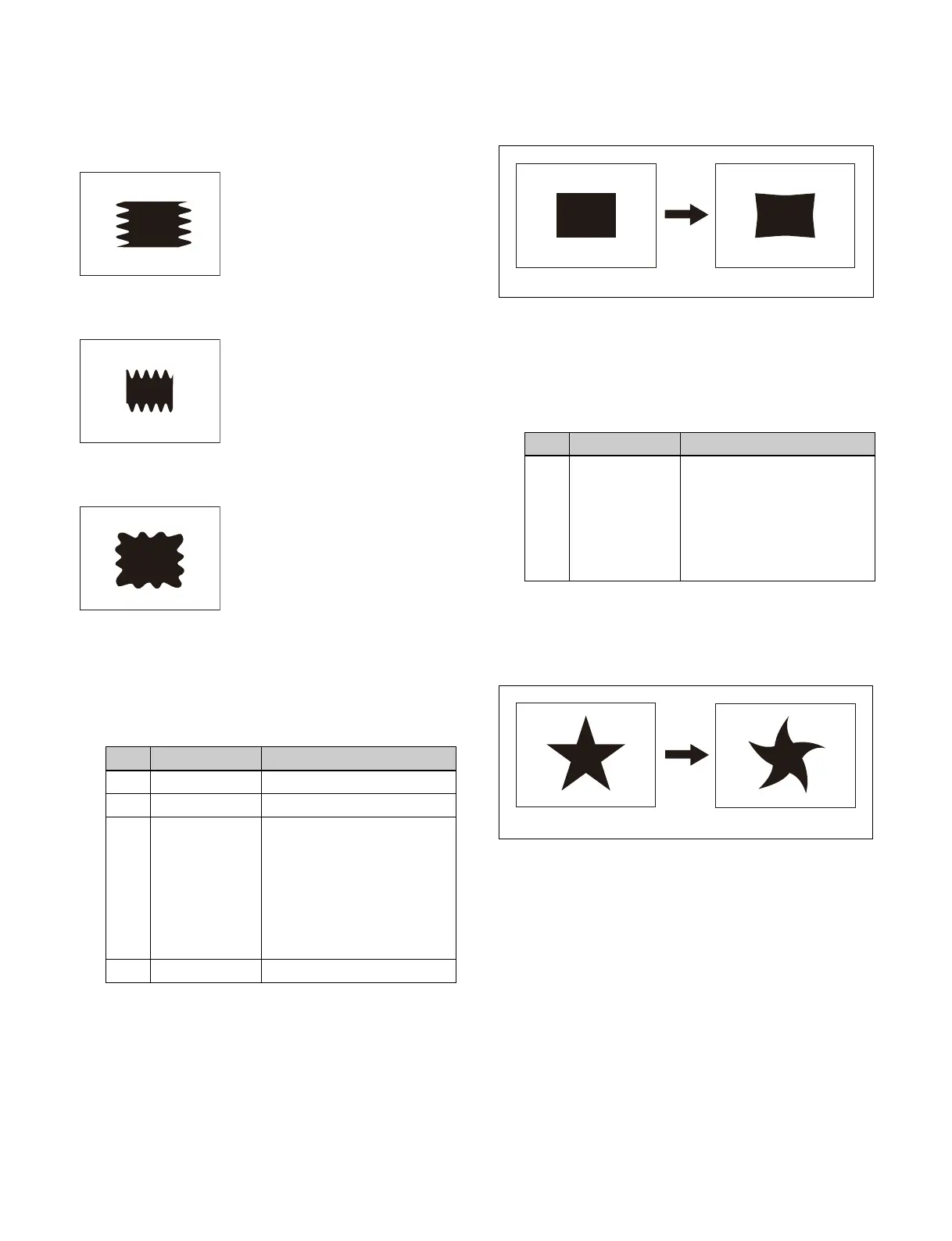

Adding modulation to a wipe pattern
(Modulation)
H (horizontal modulation)
This modulates the pattern in the horizontal direction.
V (vertical modulation)
This modulates the pattern in the vertical direction.
Fringe (radial modulation)
This modulates the pattern in the radial direction.
1 Open the Home > M/E-1 > Bus/Transition > Wipe >
Main Modify menu (11109.35).
2 In the [Modulation] group, select a modulation type.
Set the following parameters.
a) 1: Sine wave, 2: Triangle wave, 3: Square wave
Warping the edges of a wipe pattern
(Spring)
This warps the edges of a pattern inward or outward.
1 Open the Home > M/E-1 > Bus/Transition > Wipe >
Main Modify menu (11109.35).
2 Set the [Spring] button to the on state and set the
following parameter.
Adding a spiral effect to a wipe pattern
(Spiral)
This transforms the pattern into a spiral pattern.
1 Open the Home > M/E-1 > Bus/Transition > Wipe >
Main Modify menu (11109.35).
No. Parameter Adjustment
1 Amplitude Amplitude of modulation
2 Frequency Frequency of modulation
3 Speed Speed of ripples
• Negative values create
wave
s in the down, left, and
counterclockwise
directions.
• Positive values create
wave
s in the up, right, and
clockwise directions.
4 Shape Modulation waveform
a)
No. Parameter Adjustment
1 Width Size and direction of the warp
• A value of –100.00
corresponds to maximum
inwa
rd warpage.
• A value of +100.00
corresponds to maximum
outward
warpage.
Spring enabledSpring disabled
Spiral disabled Spiral enabled
