238
Program output on the sub side
Main and sub assignments
There are two modes for operat
ion: a mode switching a
single M/E bank between main and sub, and a mode using
main and sub assigned to two separate M/E banks.

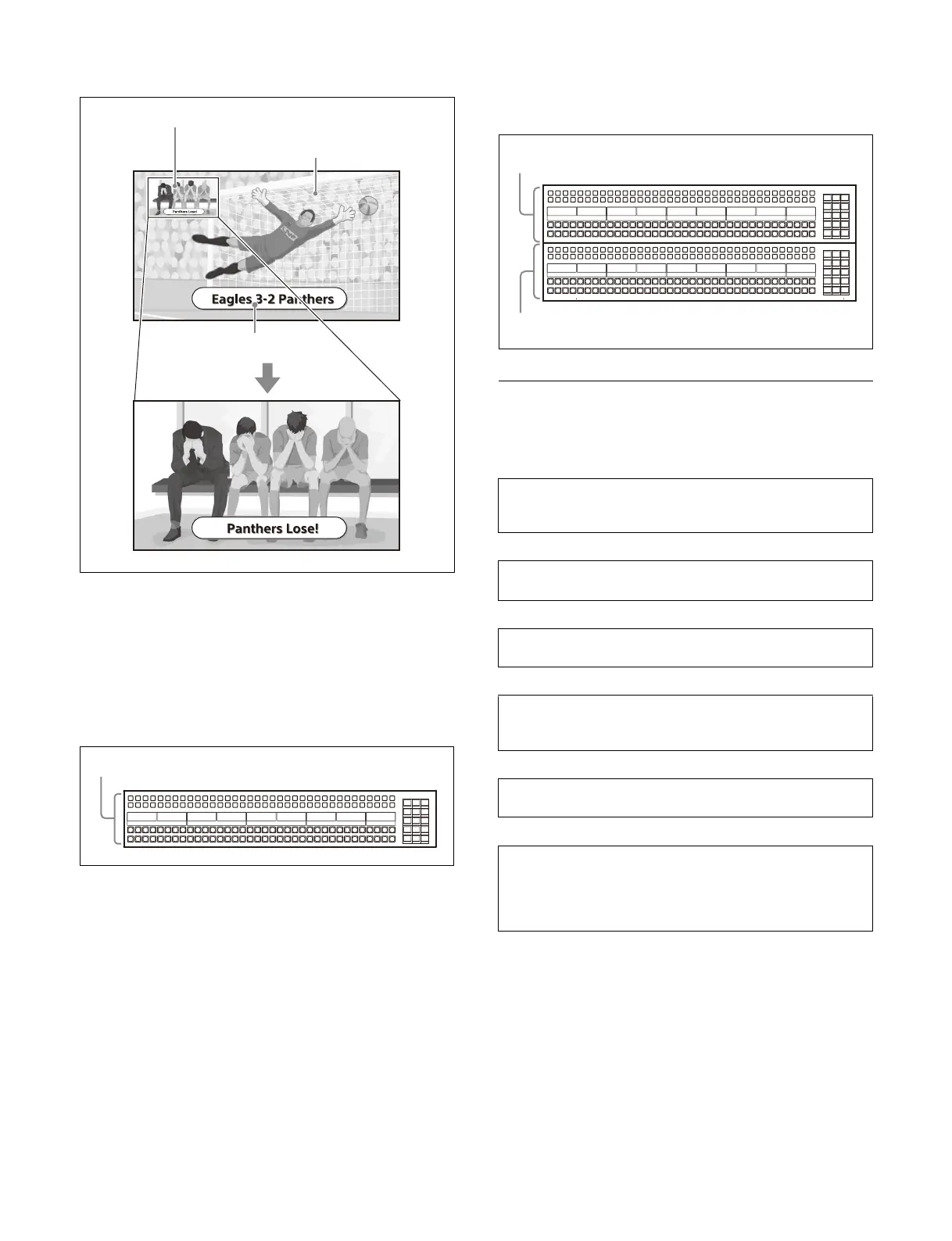

The illustration below sho
ws ICP-X7000 cross-point
control block.
Example:
M/E-1 main and sub shared on a single M/E bank
Example:
Dedicated M/E-1 main and dedicated M/E-1 sub on two
M/E bank
s
Setting Multi Program 2 Mode
Setting multi program 2 mode flow
Setting control panel buttons when using
dedicated main and dedicated sub
You can assign the assignable butt
ons in the cross-point
control block, transition control block, transition control
block (simple type), independent key transition control
block, and Flexi Pad control block separately on main and
sub.
For details about assign
ing buttons, see “Assigning
Control Panel Buttons” (page 397) and “Setting a Cross-
Point Pad” (page 405).
Background B
Background A
Key (key 1 to key 8)
Use by switching between M/E-1 main and sub
Set the operation mode for a switcher bank (see
page 384).
Set multi program 2 mode.
r
Set the outputs of each switcher bank (see page 384).
Set the Out1 to Out8 configuration.
r
Assign a switcher bank (see page 395).
Set dedicated main and sub or share main and sub.
r
Select a cross-point assign table (see page 381).
You can select separate cross-point assign tables for main
and sub.
r
Inhibit key operation (see page 396).
You can inhibit key 1 to key 8 separately on main and sub.
r
Assign control panel buttons (see page 397).
You can set separate assignable buttons for main and sub
whe
n using dedicated main and dedicated sub.
Assign the buttons for switching between main and sub
when sharing main and sub.
Use for M/E-1 main operations
Use for M/E-1 sub operations
