Open the Home > Other Effects > Aux Bus > Aux
Bus CCR menu (18102.21).
2
Select the target AUX bus to set.
3
Set the [Primary CCR] button in the [Primary CCR]
group to the on state.
4
In the [Primary CCR Adjust] group, select an
adjustment item.
Black: Blac
k balance adjustment
White: Whit
e balance adjustment
Gamma: G
amma correction
Knee: Knee correc
tion
5
Set the following parameters.
a) [Red] parameter value is shown.
To return primary color correction settings to
the defaults
Press the [Unity] button in the [Pr
imary CCR] group,
check the message, then press [OK].
Setting RGB clip
1
Open the Home > Other Effects > Aux Bus > Aux
Bus CCR menu (18102.21).
2
Select the target AUX bus to set.
3
Set the [RGB Clip] button in the [RGB Clip] group to
the on state.
4
In the [RGB Clip Adjust] group, select an adjustment
item.
Dark: Da
rk clip adjustment
White:
White clip adjustment
5
Set the following parameters.
a) [Red] parameter value is shown.
To return the RGB clip settings to the defaults
Press the [Unity] button
in the [RGB Clip] group, check
the message, then press [OK].
Enabling a link group
When a link group is enabled, selecting a specific AUX
bus and setting the color corrector will apply the settings
of all the AUX buses in the same link group.
You can temporarily disable a link
group to set individual
settings for AUX buses within the link group.
For details about settin
g a link group, see “Setting a
Color Corrector Link Group” (page 438).

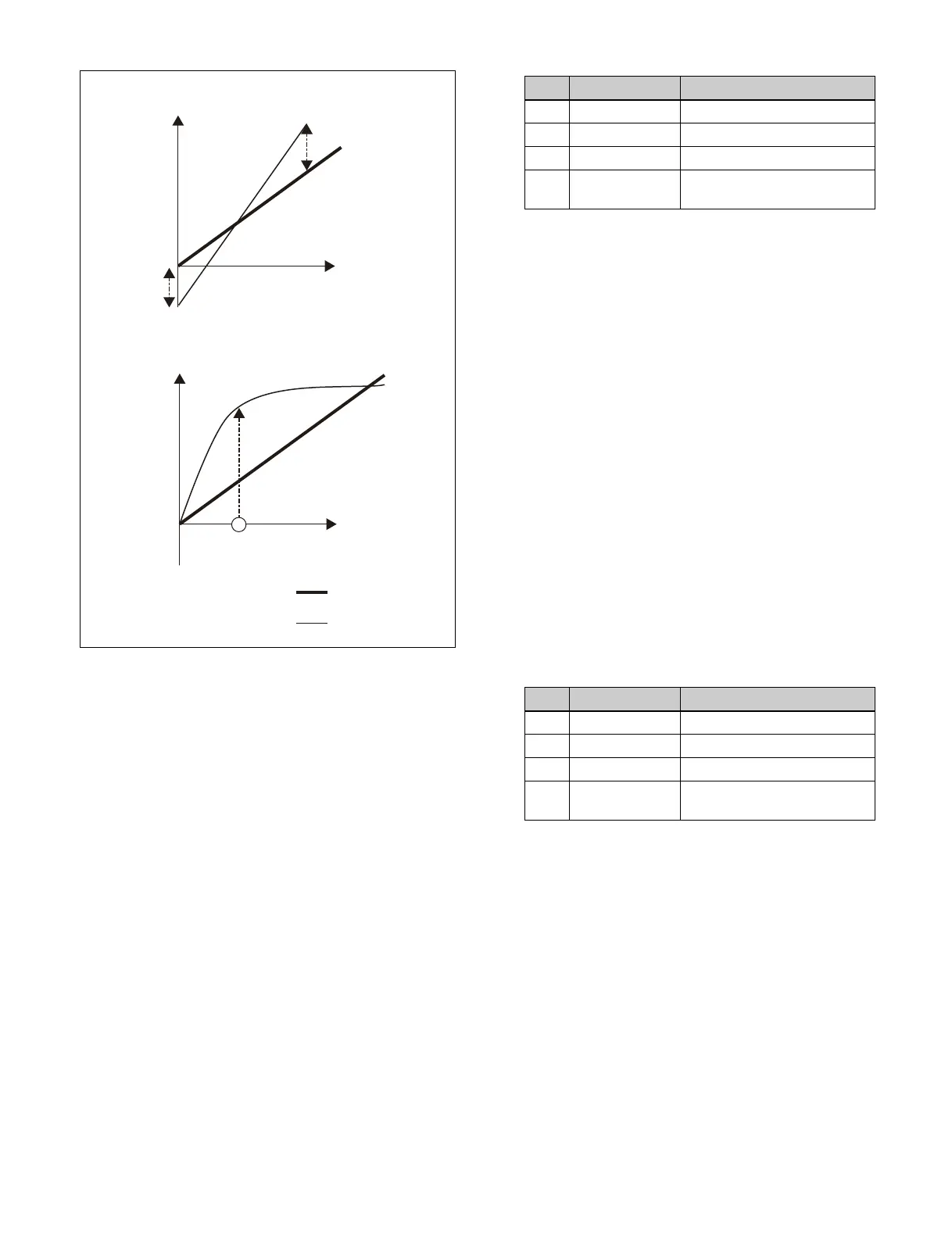

Input level
Black
balance
adjustment
White balance
adjustment
Unadjusted signal
Adjusted signal
Output level
Output level
Input level
Gamma
correction
Knee correction
No. Parameter Adjustment
1 Red R signal adjustment
2 Green G signal adjustment
3 Blue B signal adjustment
4 All Simultaneous adjustment of
al
l RGB signals
a)
No. Parameter Adjustment
1 Red R signal adjustment
2 Green G signal adjustment
3 Blue B signal adjustment
4 All Simultaneous adjustment of
al
l RGB signals
a)
