58
For details, see “Resetting the password of the
administrator user account” (page 67).

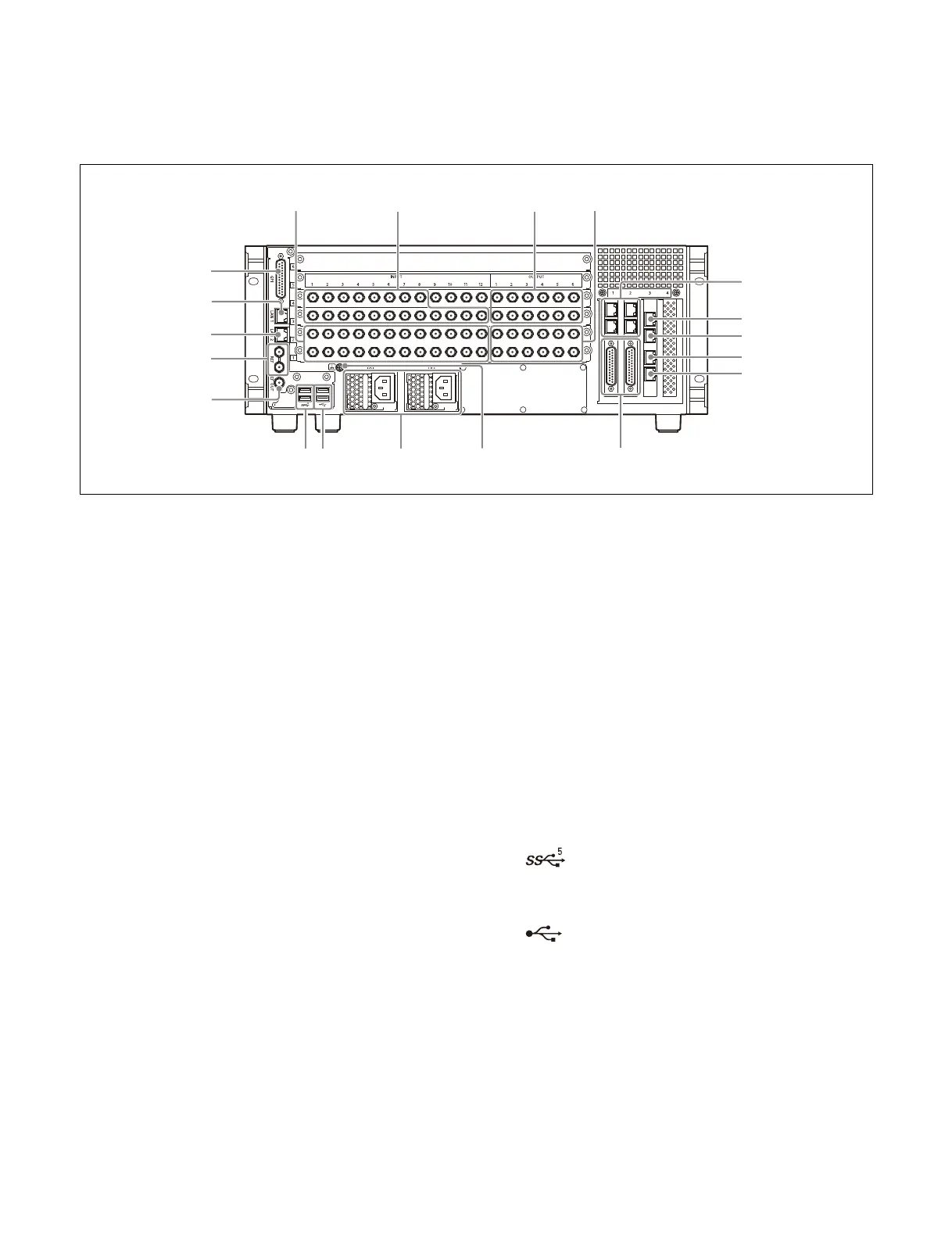

Rear view
a OUTPUT 1 to 12 connectors (BNC type)
Program outputs, preview outp
uts, and AUX outputs can
be assigned and output as serial video signals.
Each output can be configured with a format converter.
b OUTPUT 13 to
24 connectors (BNC type)
OUTPUT 13 to 18 can be used
when an XKS-G1110
Additional I/O Board (option) is installed.
OUTPUT 19 to 24 can be used when two XKS-G1110
A
dditional I/O Boards (option) are installed.
Program outputs, preview outp
uts, and AUX outputs can
be assigned and output as serial video signals.
c INPUT 25
to 44 connectors (BNC type)
INPUT 25 to 36 can be used
when an XKS-G1110
Additional I/O Board (option) is installed.
INPUT 37 to 44 can be used when
two XKS-G1110
Additional I/O Boards (option) are installed.
Inputs serial video signals.
d INPUT 1 to
24 connectors (BNC type)
Inputs serial video signals.
Each input can be configured wi
th a format converter.
e GPI connector (D-
sub 25-pin)
Used as a GPI input port and GPI output port.
Can also be used as a tally input/output port.
f LA
N 1 connector (RJ-45, 1000BASE-T compliant)
LAN connector for standard interface 1.
Used to control devices connected to the network of the
switcher system.
g LAN 2 connector (RJ-45, 1000BASE-T compliant)
LAN connector for standard interface 2.
Used to connect with an
external network.
h RE
F connectors (BNC type)
Connect to a tri-level sync signal or black burst signal
wh
en using the unit synchronized to an external reference
signal.
The two connectors are loop-through connectors.
Whi
chever is used as the input signal, the other can be
used as an output signal. When not using loop-through,
terminate the unused connector using a 75 ohm
terminator.
i RE
F OUT connector (BNC type)
Outputs the internal reference signal when an external
reference
signal is not being used.
j connector (USB 3.0, Type A)
Connect to a USB device such as a USB drive or
k
eyboard.
k connector (USB 2.0, Type A)
Connect to a USB device such as a USB drive or
k
eyboard.
l AC IN A and B
connectors
Connect to an AC power supply using an AC power cord
(sol
d separately).
m U (signal ground) termi
nal
Connect to a ground wire.
