65
Pop-up Window
Depending on the menu button, a pop-up window may be
displayed in the menu display area when the button is
pressed.

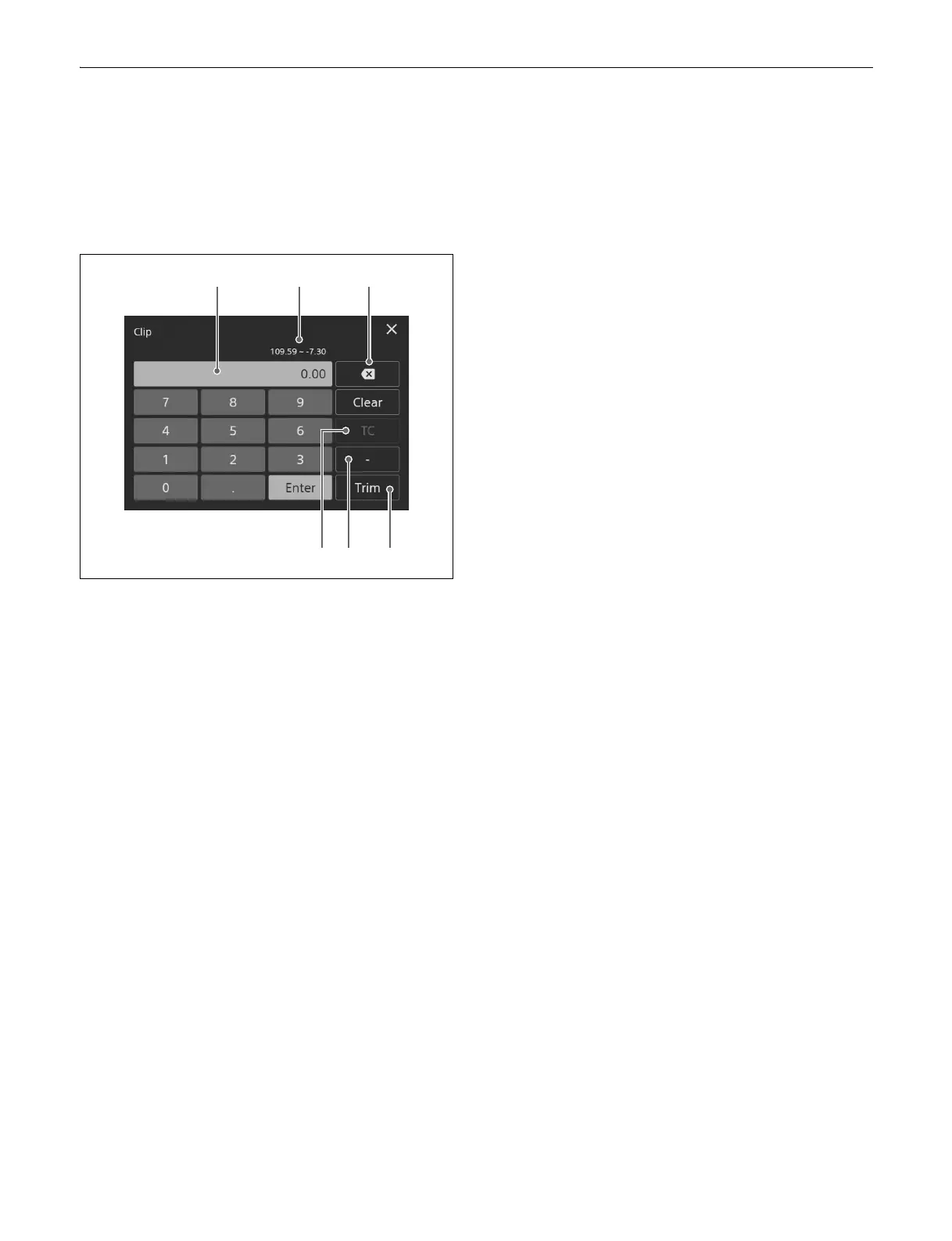

Numeric Keypad Window
Displays a numeric keypad for entering numeric values.
a Displa
y (input value display area)
Displays the numeric value entered using the numeric
ke
ypad.
When you press the display area
, the cursor appears and
you can also enter numeric values using the keyboard.
b Setting ran
ge
Displays the minimum and maxi
mum values for settings
with a range.
c B
ackspace button
Deletes the rightmost number/character of an entered
va
lue.
d [TC] bu
tton
Changes the input mode to enter t
imecode values. Set to
the on state for timecode input mode, and set to the off
state for frame number input mode.
For details, see “Timecode input and frame number
input” (page 77).
e [–]
(minus) button
Changes the sign of the input value. Set
to the on state for
negative values.
f [Trim] but
ton
Changes a setting value by the entered difference value.
For details, see “Entering a difference from a current
value” (page 77).
Setting / selection window
Displays operation buttons and input fields used to set
functions and select the target of operations.
Analog controls window
Displays an analog controls section for adjusting
parameters.
For details, see “Analog controls window” (page 73).
Message window
Displays operation confirmations and other messages, as
required.
