81
ICP-X1000 series cross-point control block
The number of buttons in a b
utton row varies depending
on the control panel used.
• ICP-X1224, ICP-X1124: 24 buttons
• ICP-X1216, ICP-X1116: 16 buttons

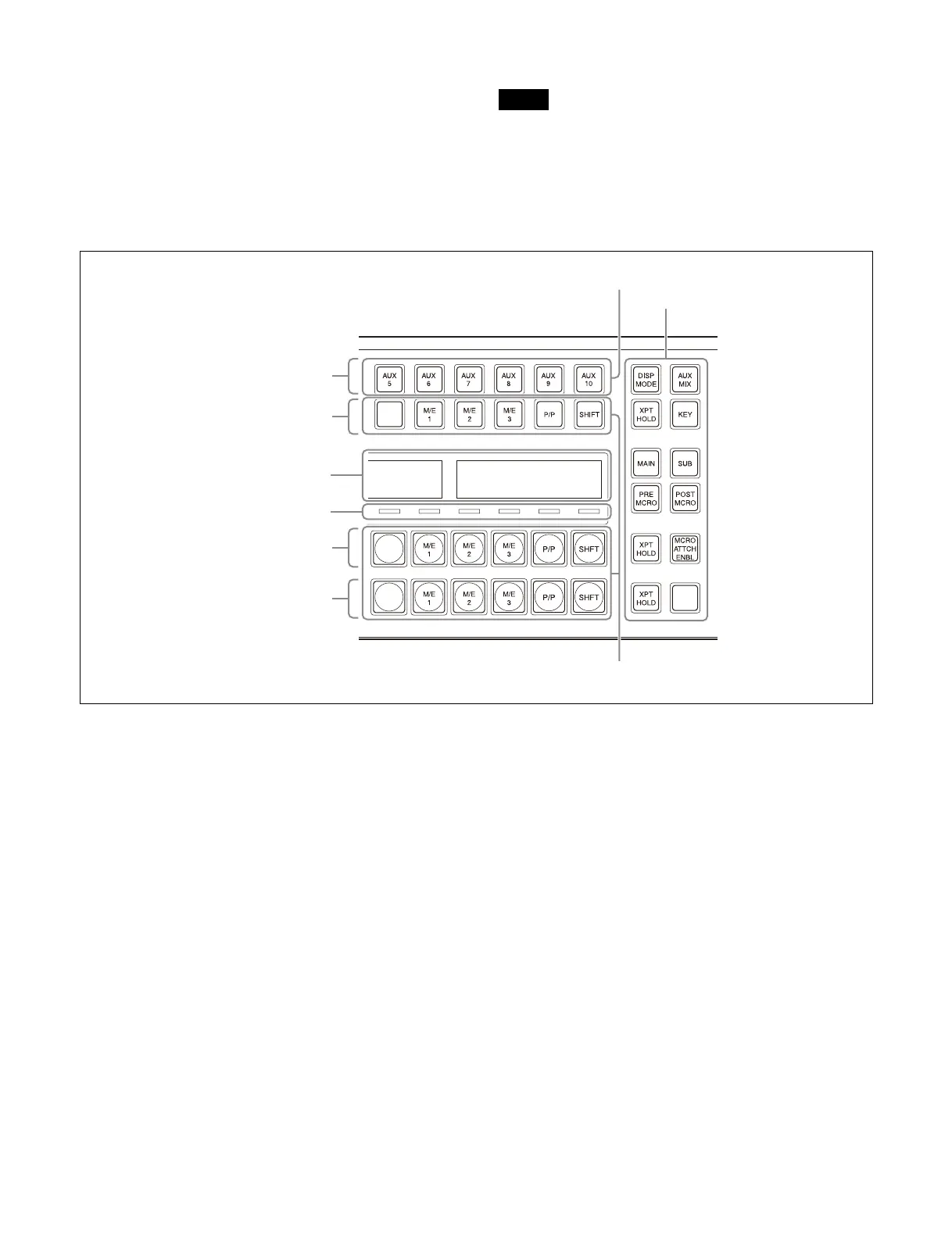

The illustration below shows a
24-button cross-point
control block (key/AUX bus delegation mode).
When the button row operation mode is key bus mode or
free a
ssign mode, the 1st row becomes a cross-point
button row.
For details, see “Operation Mode of a Button Row”
(page 83).
Note
Delegation button row
Display
Cross-point indicators
Function button section
1st row
2nd row
3rd row
4th row
Cross-point button rows
