Chapter 2 — Installation
Package Contents
The package contains the following:
Digital Video Recorder
Power Cord
Operation Instruction (This Document)
Speco Central Software CD and Operation Instruction
Rack-mount Kit
Infrared Remote Control
Required Installation Tools
No special tools are required to install the DVR. Refer to the installation manuals for the other items that make up part
of your system.

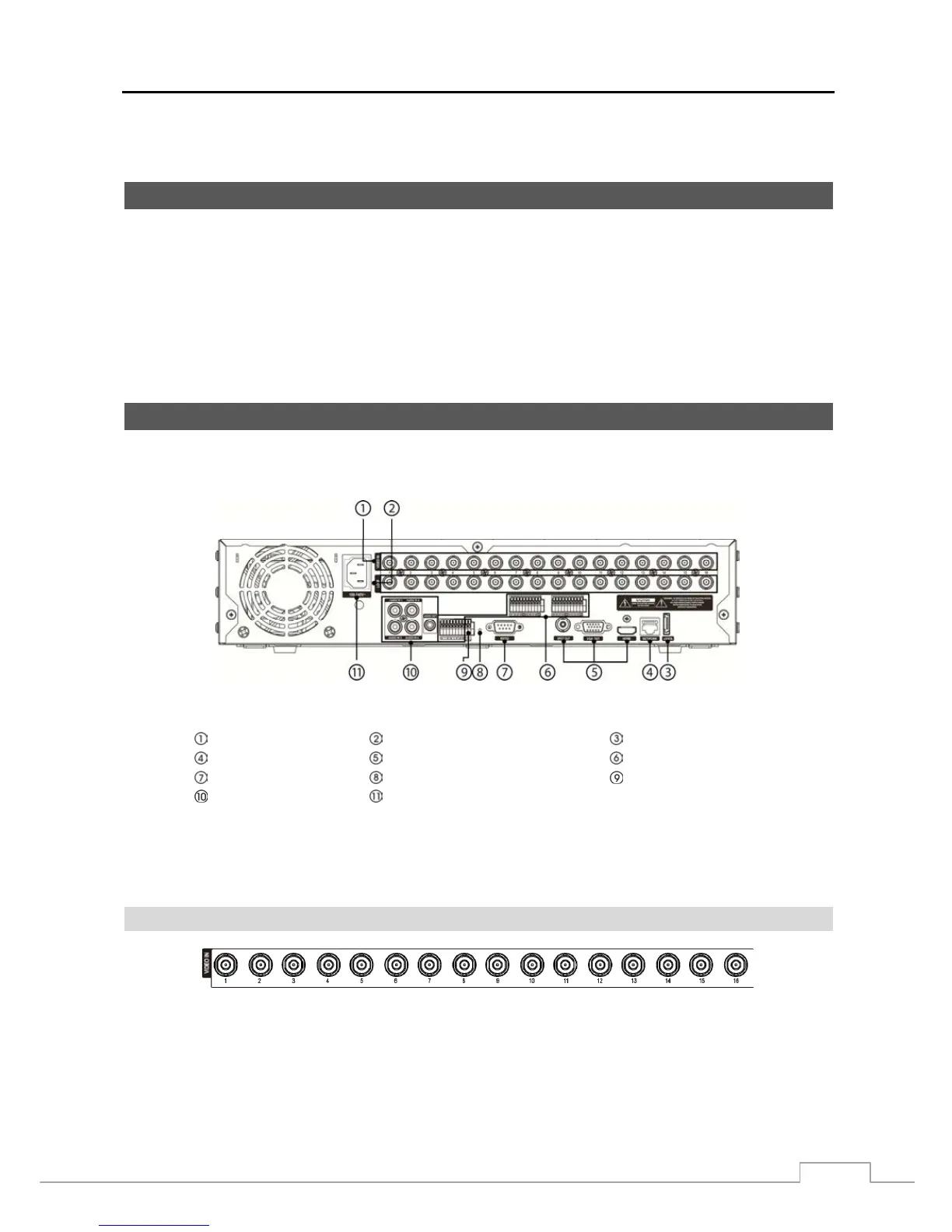

Figure 2 : 16-Channel DVR rear panel.
Video Input Video Loop Through eSATA Port
Network Port Video Out Alarm Input/Output
RS232 Port
Factory Reset Switch RS485 Port
Audio In/Out
Power Cord Connector
Your DVR can be used with either NTSC or PAL equipment.
NOTE: You cannot mix NTSC and PAL equipment. For example you cannot use a PAL camera and an NTSC
monitor.
Video Input
Connect the coaxial cables from the video sources to the BNC Video In connectors.
