Spectralink IP-DECT Server 6500 Installation and Configuration Guide
14215700 Version 3.0
April, 2014 44

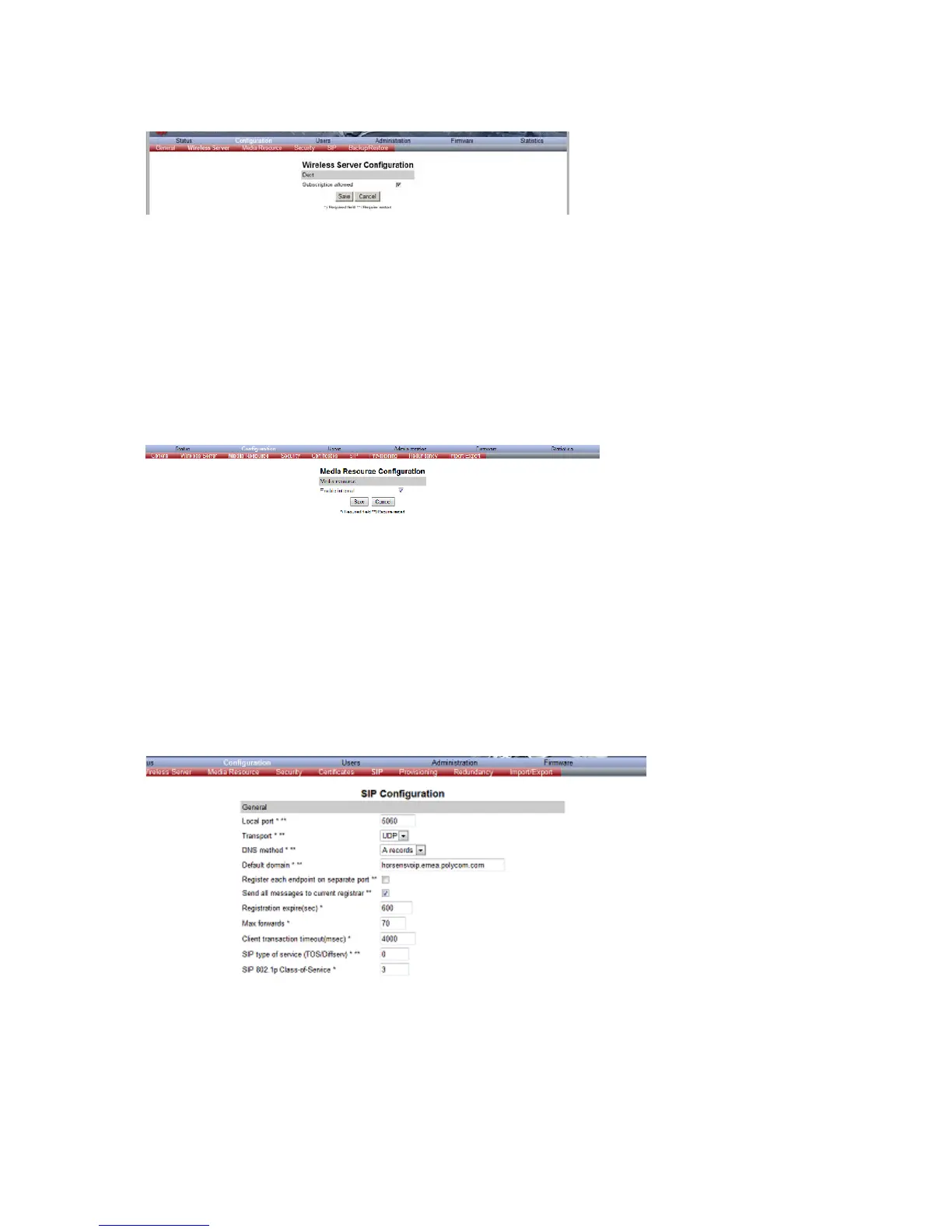

Figure 21 Wireless Server Configuration
2 Select the Subscription Allowed check box (optional).
Note: If not selected, you cannot subscribe a handset.
3 Click Save.
Built-In Media Resource Configuration
On the Configuration/Media Resource page you configure the built-in media resource.
1 Click Configuration, and then click Media Resource.
Figure 22 Adm. Page WS: Configuration/Media Resource page
2 Select Enable internal if you want to activate the built-in media resource.
3 Click Save.
SIP Configuration
On the Configuration/SIP page you define general SIP settings, information about
authentication, DTMF signalling, message waiting indication and media.
1 Click Configuration, and then click SIP.
Figure 23 Adm. Page WS: Configuration/SIP page
