Spectralink IP-DECT Server 6500 Installation and Configuration Guide
14215700 Version 3.0
April, 2014 51

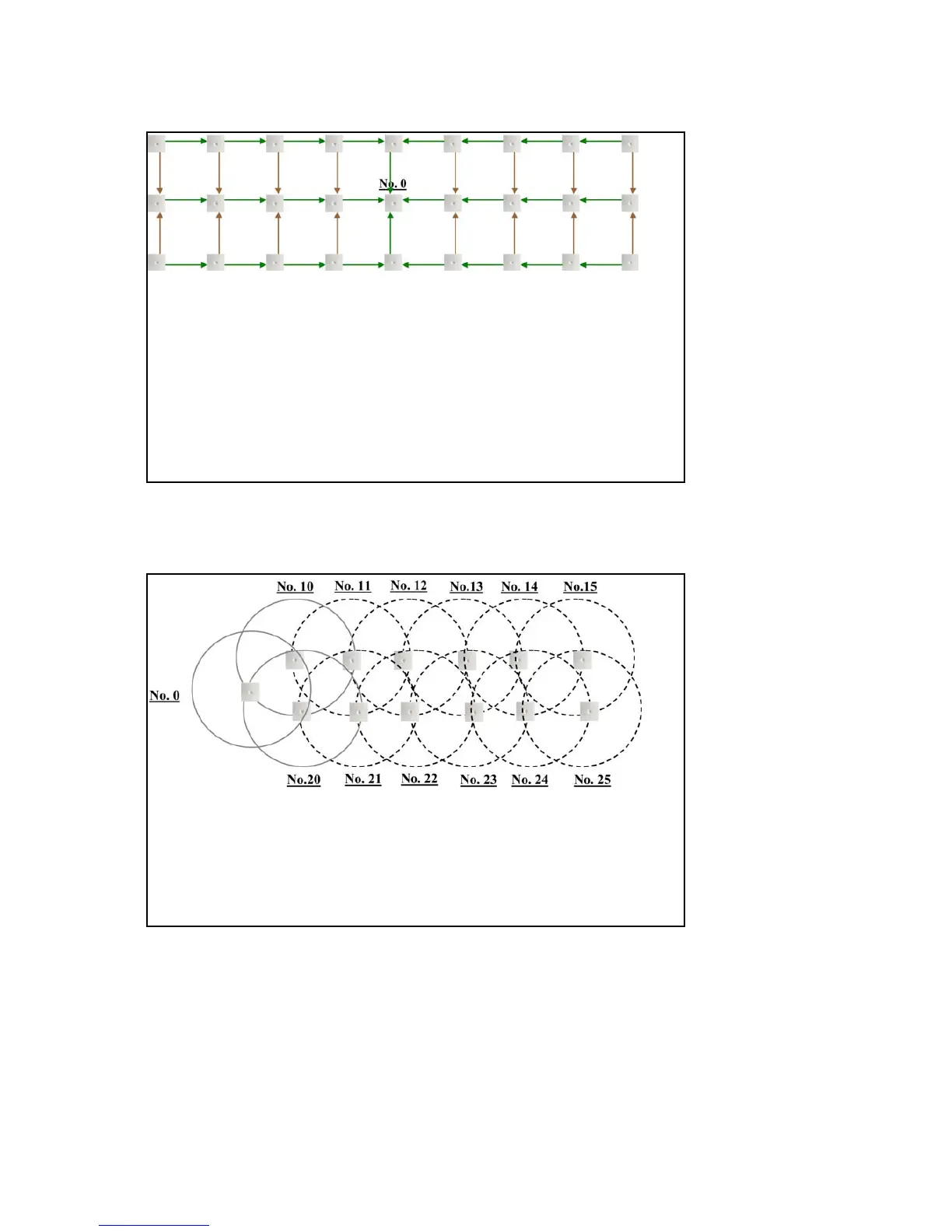

Figure 26 Synchronization Chain Layout without Alternative Sync Ways
Sync Chain With Alternative Sync Ways
Figure 27 Synchronization Chain with Alternative Sync Ways
• No. 0 is the Sync Master (can be numbered 0-255).
• It is recommended to place the Sync Master in the middle of the
building.
• Green line: Shows the primary sync ways.
• Brown line: Only handover overlap is needed.
• It is recommended to make a site planner. Every base station must be
numbered with Radio ID, Primary sync Radio ID, and Alternative
sync Radio ID.
• No. 0 is the
Sync Master (can be numbered 0-255).
• No. 10 and No. 20: Primary and alternative sync on No. 0.
• No. 11: Primary sync on No. 10 and alternative sync on No. 21.
• No. 21: Primary sync on No. 20 and alternative sync on No. 11.
